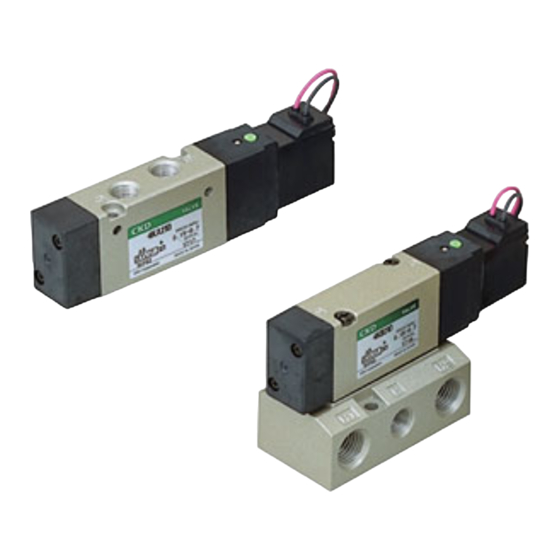

CKD 4KA3 Instruction Manual

Pneumatic valve
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ
ＰＮＥＵＭＡＴＩＣ  ＶＡＬＶＥ
４ＫＡ３,
Ｍ４ＫＡ３,  Ｍ４ＫＢ３
Please
read
●
carefully before using this product, par-
ticularly the section describing safety．
Retain this instruction manual with the
●
product for further consultation whenever
necessary．
ＳＭ−２１５１６３-A/２
４ＫＢ３
this
instruction
            ２
manual
nd
 Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4KA3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CKD 4KA3

Summary of Contents for CKD 4KA3

  • Page 1 ＳＭ−２１５１６３-A/２ ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ ＰＮＥＵＭＡＴＩＣ  ＶＡＬＶＥ  ４ＫＡ３,  ４ＫＢ３  Ｍ４ＫＡ３,  Ｍ４ＫＢ３  Please read this instruction manual ● carefully before using this product, par- ticularly the section describing safety． Retain this instruction manual with the ● product for further consultation whenever necessary．             ２  Edition ...

  • Page 2: Safety Precautions

    ２．Use this product within its specifications.  This  product  cannot  be  used  beyond  its  specifications.  Additionally,  the  product  must  not  be  modified or machined.  This product is intended for use in general industrial devices and parts. Use beyond such conditions  is  not  considered.  Consult  with  CKD  for  details  when  using  the  product  beyond  the  unique  specification range, outdoors, or in the following conditions or environments. In any case, measures  for safety shall be provided when the vavle malfunctions.  ① Use for special applications requiring safety including nuclear energy, railroad, aviation, ship, vehicle,  medical  equipment,  equipment  or  applications  coming  into  contact  with  beverage  or  food, ...
  • Page 3   CAUTION  : or damage to equipment or facilities. Note  that  some  items  described  as "CAUTION" may  lead  to  serious results  depending  on  the  situation. In any case, important information that must be observed is explained.  Precautions with regard to guarantee   Guarantee period  The guarantee period of our product shall be one (1) year after it is delivered to the place specified by the customer.   Guarantee coverage  If any failure for which CKD CORPORATION is recognized to be responsible occurs within the above war- ranty period, a substitute or necessary replacement parts shall be provided free of charge, or the product  shall be repaired free of charge at the plant of CKD CORPORATION.    However, the guarantee excludes following cases:  ① Defects resulting from operation under conditions beyond those stated in the catalogue or specifications.  ② Failure resulting from malfunction of the equipment and/or machine manufactured by other companies.  ③ Failure resulting from wrong use of the product.  ④ Failure resulting from modification or repairing that CKD CORPORATION is not involved in.  ⑤ Failure resulting from causes that could not be foreseen by the technology available at the time of deliv- ery. ...
  • Page 4 UNPACKING (Section 3) Bags  containing  solenoid  valves  should  be  opened  only  ！   CAUTION  :  when  you  are  ready  to  connect  the  valves  to  the  pipes  immediately afterward.   If bags are opened before the valves are ready to be con- nected to the pipes, the entry of foreign matter from the  piping  ports  could  cause  the  solenoid  valves  to  fail  or  malfunction. ...
  • Page 5 f)  Avoid using the solenoid valve system in a humid en-   ！ CAUTION  :  vironment  because  the  humidity  is  likely  to  cause  condensation with a change in the temperature.  g)  Do not use the normal type solenoid valves for an ap- plication that requires conformity with explosion-proof  specifications.    Choose  explosion-proof  solenoid  valves instead.  h)  The packing and gaskets may deteriorate sooner than  usual  if  used  in  an  atmosphere  with  a  higher  than  normal density of ozone (for example, the atmosphere  near  a  beach  or  in  an  area  with  frequent  thunder- storms). ...
  • Page 6 PIPING (Section 4.3) a)  Observe  the  recommended  tightening  torque  when  ！   CAUTION  :  connecting pipes.   Observing  the  recommended  tightening  torque  prevents  air leakage and damage to the screw threads.    To prevent  damage to the screw threads, first use your hand to lightly  tighten the screw and then use a tool to tighten the screw  to the recommended torque.  b)  Make  sure  that  the  pipes  will  not  be  disconnected  at  the  joints  by  mechanical  movements,  vibrations  or  tension. ...
  • Page 7 WIRING (Section 4.4) Before  wiring,  read  the  instruction  manual  carefully  and  ！   WARNING  :  understand the instructions.  A person who wires needs to have knowledge for safely   performing such operation based on the understanding  about the mechanisms and operating principles of solenoid  valves.  Before  supplying  the  power,  check  the  power  supply  ！   CAUTION  :  voltage and the current type (AC or DC).  MANUAL (Section 5.2) OPERATING DEVICE a)  Once the manual operating device has been operated,   ...
  • Page 8 ELECTRIC CIRCUITS (Section 5.4) a)  Check  for  the  presence  of  any  current  leak  from  the  ！   CAUTION  :  external  control  device  because  it  may  cause  an  er- roneous valve operation.   When  a  programmable  controller  or  a  similar  control  de- vice  is  used,  a  current  leak  may  prevent  the  normal  re- turning of the valve when the solenoid is de-energized. ...
  • Page 9 INDEX 4KA3, 4KB3 M4KA3, M4KB3 Manual No. SM-215163-A/2 1. PART NAME AND DESCRIPTION 2. INTERNATIONAL SYSTEM OF UNITS (SI) 3. UNPACKING 4. INSTALLATION Environment Installation Piping Wiring 5. OPERATING RECOMMENDATION Function Manual Operating Device Air Quality Electric Circuits 6. MAINTENANCE...
  • Page 10 １ PART NAME    AND DESCRIPTION  1.  PART NAME AND DESCRIPTION  Direct piping unit Direct piping manifold Subplate piping unit Subplate piping manifold Part Name explanation Valve unit There are direct pipng and sub plate piping ① It uses in case of manual operation. There are a non lock and a lock Manual operating device ②...
  • Page 11 ２ 2.  INTERNATIONAL SYSTEM OF UNITS (SI)    In this manual, values are expressed using the International System of Units (SI). Use the table below to convert them into values expressed in conventional units. Table of conversion between SI units and conventional units (The values printed in Bolds fonts are values given in the International System of Units (SI)): Example (converting a pressure value): 0.0980665MPa 1MPa...
  • Page 12 ３ UNPACKING 3.  UNPACKING  Bags  containing  solenoid  valves  should  be  opened  only    ！ CAUTION  :  when  you  are  ready  to  connect  the  valves  to  the  pipes  immediately afterward.   If bags are opened before the valves are ready to be con- nected to the pipes, the entry of foreign matter from the  piping  ports  could  cause  the  solenoid  valves  to  fail  or  malfunction. ...

  • Page 13: Installation

    ４ INSTALLATION  4.  INSTALLATION  If you have to use the product under conditions that are    ！ CAUTION  :  different from the specified conditions or if you intend to  use the product for a special application, be sure to con- sult us about the product specifications before using the  product. 4.1 Environment a)  In a dusty environment, foreign matter may enter even    ！ CAUTION  :  through the exhaust port.   The movement of the exhaust valve causes a respiratory  action at the exhaust valve, which may cause inhalation of  foreign matter near the exhaust port.    This potential sit- uation  would  be  worse  if  the  exhaust  port  is  facing  up- ward.    Attach a silencer to the exhaust port or have the  exhaust port face downward. ...
  • Page 14 ４ INSTALLATION g)  Do not use the normal type solenoid valves for an ap- ！   CAUTION  :  plication that requires conformity with explosion-proof  specifications.    Choose  explosion-proof  solenoid  valves instead.  h)  The packing and gaskets may deteriorate sooner than  usual  if  used  in  an  atmosphere  with  a  higher  than  normal density of ozone (for example, the atmosphere  near  a  beach  or  in  an  area  with  frequent  thunder- storms).   Consult us ...
  • Page 15 ４ INSTALLATION  4.3 Piping a)  Observe  the  recommended  tightening  torque  when  ！   CAUTION  :  connecting pipes.   Observing  the  recommended  tightening  torque  prevents  air leakage and damage to the screw threads.    To prevent  damage to the screw threads, first use your hand to lightly  tighten the screw and then use a tool to tighten the screw  to the recommended torque.  b)  Make  sure  that  the  pipes  will  not  be  disconnected  at  the ...

  • Page 16: Exhaust Port

    ４ INSTALLATION 4.3.1 Sealant Refrain applying sealant or seal tape approx.two pitches of thread from the tip of pipe to avoid some of the sealing substances from falling into piping system. ●Seal Tape ●Sealant(Paste or liquid) （Right）  （False）  （Right）  （False）  When winding the fluororesin seal tape on the screw part, wind the seal tape two or three times where one or two screw threads remain at the top end of the screw, and then push the tape by tip of the nail to make the tape tightly in contact with the screw.

  • Page 17: Pipe Connections

    ４ INSTALLATION  4.3.5 Pipe connections (1) Tubes to be used For use with solenoid valves with one-touch joints, select tubes of the type specified by us: Soft nylon tubes (F-1500 Series) Urethane tubes (U-9500 Series) (2) For installation at a site that has spatters in the air, select incombustible tubes or metal pipes.
  • Page 18 ４ INSTALLATION (7) Tube connections Do not bend a tube immediately at where it is connected to the joint but lead it out straight from the end of the joint for a length equal to or greater than the outside diameter of the tube. (8) Blank plug to be used For use with a solenoid valve with a one-touch joint, select the blank plug specified by us: Blank plug GWP□-B Series...
  • Page 19 ４ INSTALLATION  4.3.6 External pilot (K) piping port Pilot air is individual supply in the external pilot (K) type. Supply port is Rc1/8, so pay atten- tion to piping connecting position not to mistake. If it isn’t correctly piped, it causes the mal- function.
  • Page 20 ４ INSTALLATION 1) Caution for wiring (1) When using the small terminal box and water-proof is required, use cab-tire cords φ4.5 to φ7 in outer diameter (water-resistance is improved, but not for outdoor use). (2) The connector type (C, C1, C2, C3, D, D1, D2, D3) should be used in a place with little dust and not directly exposed to water and oil.
  • Page 21 ４ INSTALLATION  Plug-in connector D type Plug-in connector D type with lead wire, without leadwire, Plug-in connector D type Plug-in connector D type surge suppressor and surge suppressor and with lead wire without lead wire indicator light indicator light Option code Shape (〜)
  • Page 22 ４ INSTALLATION 3) Connection to terminal box Comply with the procedure (1)〜(3) referring to the illustration below. 1) Insert Cabtire cable⑦ through Cap④,Washer⑤ and Gasket⑥ then Case ②. 2) When crimping terminals are to be used, process the ends of Cabtire cable⑦ per illustrated with appropriate length then Crimp terminal⑨...
  • Page 23 4) Wiring of the C-type, D-type connectors Wire the terminal box by following ① to ⑥ in the illustration. Socket ass’y Crimp terminal (Socket ＋ Crimp terminal) (made by CKD) Caulking tool (made by CKD) ② Terminal caulking ⑥ Tightening screw ①...

  • Page 24: Operating Recommendation

    ５ OPERATION 5.  OPERATING RECOMMENDATION  5.1 Function 1) 4KA series  4KA310 No signal current (Illustrated) →  A →  R2 (R1 port is closed.) When actuated →  B →  R1 (R2 port is closed.) PR is an exhaust port of the pilot pressure line. ...
  • Page 25 ５ OPERATION  2) 4KBseries  4KB310 No signal current (Illustrated) →  A →  R2 (R1 port is closed.) When actuated →  B →  R  4KB320 When Sol is actuated (Illustrated) →  A →  R When Sol is actuated →  B → ...
  • Page 26 ５ OPERATION 5.2 Manual Operating Device a)  After  using  the  manual  operating  device,  be  sure  to  ！   WARNING  :  reset  the  manual  operating  device  to  the  original  (OFF)  position  before  resuming  the  operation  of  the  device.  After a non-lock type operation (push and release), be  sure to check that the manual operating device is au- tomatically  reset.    After  a  lock-type  operation  (push  and ...

  • Page 27: Air Quality

    5.3.1 Lubrication The 4KA3、 4KB3 Series solenoid valve systems use pre-lubricated valves that usually do not require lubrication from the outside. If you have to lubricate a valve, use Type 1 turbine oil (ISO-VG32) without additives. Excessive lubrication and extremely low pressure may cause a longer re- sponse time.
  • Page 28 ５ OPERATION 5.3.4 Foreign matter in the compressed air 1) Supply clean compressed air that does not include oxidized oil, tar, carbon, or other foreign matter from the air compressor. (1) If oxidized oil, tar, carbon, or the like enters a pneumatic device and sticks to its components, an increase in the resistance at sliding portions may cause a malfunction.

  • Page 29: Electric Circuits

    ５ OPERATION  5.4 Electric Circuits a)  Check  for  the  presence  of  any  current  leak  from  the  ！   CAUTION  :  external  control  device  because  it  may  cause  an  er- roneous valve operation.   When  a  programmable  controller  or  a  similar  control  de- vice ...

  • Page 30: Maintenance

    ６ MAINTENANCE 6.  MAINTENANCE  6.1 Periodic Inspection Before  providing  a  maintenance  service,  cut  the  power  ！   WARNING  :  and  the  supply  of  compressed  air  and  confirm  the  ab- sence of residual pressure.   The above is required to ensure safety.  Regularly  perform  the  daily  and  periodic  inspections  to   ...

  • Page 31: Disassembling And Reassembling

    ６ MAINTENANCE 6.2 Disassembling and Reassembling Before  disassembling  and  reassembling  solenoid  valves,  ！   WARNING  :  read the instruction manual carefully and understand the  instructions.   A  person  who  disassembles  and  reassembles  a  solenoid  valve  system  needs  to  have  a  knowledge  for  safely  per- forming such operation based on the understanding about  the  mechanisms  and  operating  principles  of  solenoid  valves. ...
  • Page 32 Piston Resin ⑯ Socket headed bolt Steel M3×38 ⑰ Body Aluminum alloy die casting 4KB3 ⑱ Spool Ass’y ⑲ Spring Stainless steel ⑳ Resin ㉑ Cap mounting screw Steel M3×8 ㉒ Body Aluminum alloy die casting 4KA3 ㉓ [SM-215163-A/2] ―31―...
  • Page 33 Piston Resin ⑯ Socket headed bolt Steel M3×38 ⑰ Aluminum alloy Body 4KB3 ⑱ die casting Aluminum alloy Body 4KA3 ⑲ die casting Spool Ass’y ⑳ Bottom seat Brass ㉑ O ring Nitrile rubber ㉒ Spring Stainless steel ㉓ Valve seat Nitrile rubber ㉔...
  • Page 34 Piston Resin ⑯ Socket headed bolt Steel M3×38 ⑰ Body Aluminum alloy die casting 4KB3 ⑱ Body Aluminum alloy die casting 4KA3 ⑲ Bottom seat Brass ⑳ O ring Nitrile rubber ㉑ Spring Stainless steel ㉒ Valve seat Nitrile rubber ㉓...

  • Page 35: Troubleshooting

    ７ TROUBLE SHOOTING 7.  TROUBLE SHOOTING  Motion troubles Suspected cause Remedies No electric signals Turn on the power Damage to signal wiring system Repair the control circuit Does not actuate Excessive fluctuating range of current or volt- Reaffirm the power capacity. (within ±10% of voltage fluctuation) Correct control circuit and / or set a bleed cir- Excessive leaking current cuit...

  • Page 36: Product Specifications

    ８ SPECIFICATION 8.  PRODUCT SPECIFICATIONS AND HOW TO ORDER  8.1 Product Specifications 1) Specifications 4KA340 4KA350 4KA330 4KA310 4KA320 3-pos. Load 3-pos. Load Model code 3pos. All ports 2-pos. Single 2-pos. Double ports open to ports open to blocked exhaust ports supply ports JIS Symbol A B Item R1 P R2...
  • Page 37 SPECIFICATIONS Model code M4KA3 Item Manifold structure Manifold integrated Applicable solenoid valve 4KA3 series Nos. of station 2 to 15 stations Manifold type Common supply, common exhaust Grommet with lead wire Electrical connections (Option : Small terminal box, Plug-in connectors)
  • Page 38 ８ SPECIFICATION 4KB340 4KB350 4KB330 4KB310 4KB320 3-pos. Load 3-pos. Load Model code 3pos. All ports 2-pos. Single 2-pos. Double ports open to ports open to blocked exhaust ports supply ports JIS Symbol A B Item Working fluid Compressed air Valve type and operation Pilot operated soft spool valve Min.
  • Page 39 ８ SPECIFICATIONS Model code M4KB3 Item Manifold system Manifold integrated Applicable solenoid valve 4KB3 series Nos. of station 2〜15 stations Manifold type Common supply, common exhaust Grommet with lead wire Electrical connections (Option : Small terminal box, Plug-in connectors) Supply port Side (Rc3/8) Port Cylinder ports...
  • Page 40 ８ HOW TO ORDER 8.2 How to Order 1) 4KA3 4KA3 AC100V Operator type Solenoid valve (a) Position/Operator type (b) Port size (c) Manual operation device Code Description Code P･ A ･ B ports R1 ･ R2 ports Code Description Non-lock type manual 2-pos. single operator...
  • Page 41 ８ HOW TO ORDER NOTE: Following options are available as a custom order. ・Ozone-proof specifications Available in ozone-proof specifications by adding -P11 to the end of model number. Model number: ※※-Voltage-P11 ・Coolant proof specifications Selectable with option symbol A. Model number: ※※-A-Voltage ・Copper and PTFE free (Copper and PTFE materials are not used for flow path) Available in copper and PTFE free by adding -P6 to the end of model number.
  • Page 42 ８ HOW TO ORDER 2)M4KA3 4KA3 ※ Solenoid valve AC100V for manifold ※ Gasket, mounting screws are attached M4KA3 Manifold AC100V Operator type Solenoid valve (a) Position/Operator type (b) Port size (c) Manual operation device Code Description Code A･B ports P・R1･R2 ports...
  • Page 43 Available in copper and PTFE free by adding -P6 to the end of model number. Model number: ※※-Voltage-P6 Example of same model Manifold  M4KA310-08-5-AC100V Indicates 4KA3 manifold, 2-position single solenoid, A ･ B ports Rc1/4 top porting, 5 stations, 100 V AC 50/60 Hz. Example of mixed manifold   Method of coding the contents of combination : Indicate the number of the function-wise solenoid valves (simplex) after the normal Model No.
  • Page 44 3000mm DC12V DC12V No option 300mm 500mm  Consult with CKD about vacuuming of external 1000mm Plug-in connector D type pilot (K). 2000mm  When attached surge suppressor is DC24V or less, sup- 3000mm pression connector type (diode) is provided.
  • Page 45 ８ HOW TO ORDER ・Ozone-proof specifications Available in ozone-proof specifications by adding -P11 to the end of model number. Model number: ※※-Voltage-P11 ・Coolant proof specifications Selectable with option symbol A. Model number: ※※-A-Voltage ・Copper and PTFE free (Copper and PTFE materials are not used for flow path) Available in copper and PTFE free by adding -P6 to the end of model number.
  • Page 46 ８ HOW TO ORDER M4KB3 ※ Gasket, mounting screws are attached ※ Solenoid valve 4KB3 M1 B AC100V for manifold M4KB3 M1 B AC100V Manifold Operator type Solenoid valve (a) Operator type (b) Port size (c) Manual operating device P ･ R1 ･ R2 Code Description Code...
  • Page 47 ８ HOW TO ORDER Available in ozone-proof specifications by adding -P11 to the end of model number. Model number: ※※-Voltage-P11 ・Coolant proof specifications Selectable with option symbol A. Model number: ※※-A-Number of stations-Voltage ・Copper and PTFE free (Copper and PTFE materials are not used for flow path) Available in copper and PTFE free by adding -P6 to the end of model number.
  • Page 48 ８ HOW TO ORDER 2) Piston assembly Spool assembly Function Model example Function Model example 4KA310 4KA310, 4KB310 4K9-137 4KB310 4KA320, 4KB320 4K9-133 4KA320 4KA330, 4KB330 4KB320 4KA340, 4KB340 4K9-138 4KA330 4KA350, 4KB350 4K9-134 4KB330 4KA340 4K9-135 4KB340 4KA350 4K9-136 4KB350 Coil assembly Function Model example 4K3 - Electrical connection option -COIL - Voltage All model...
