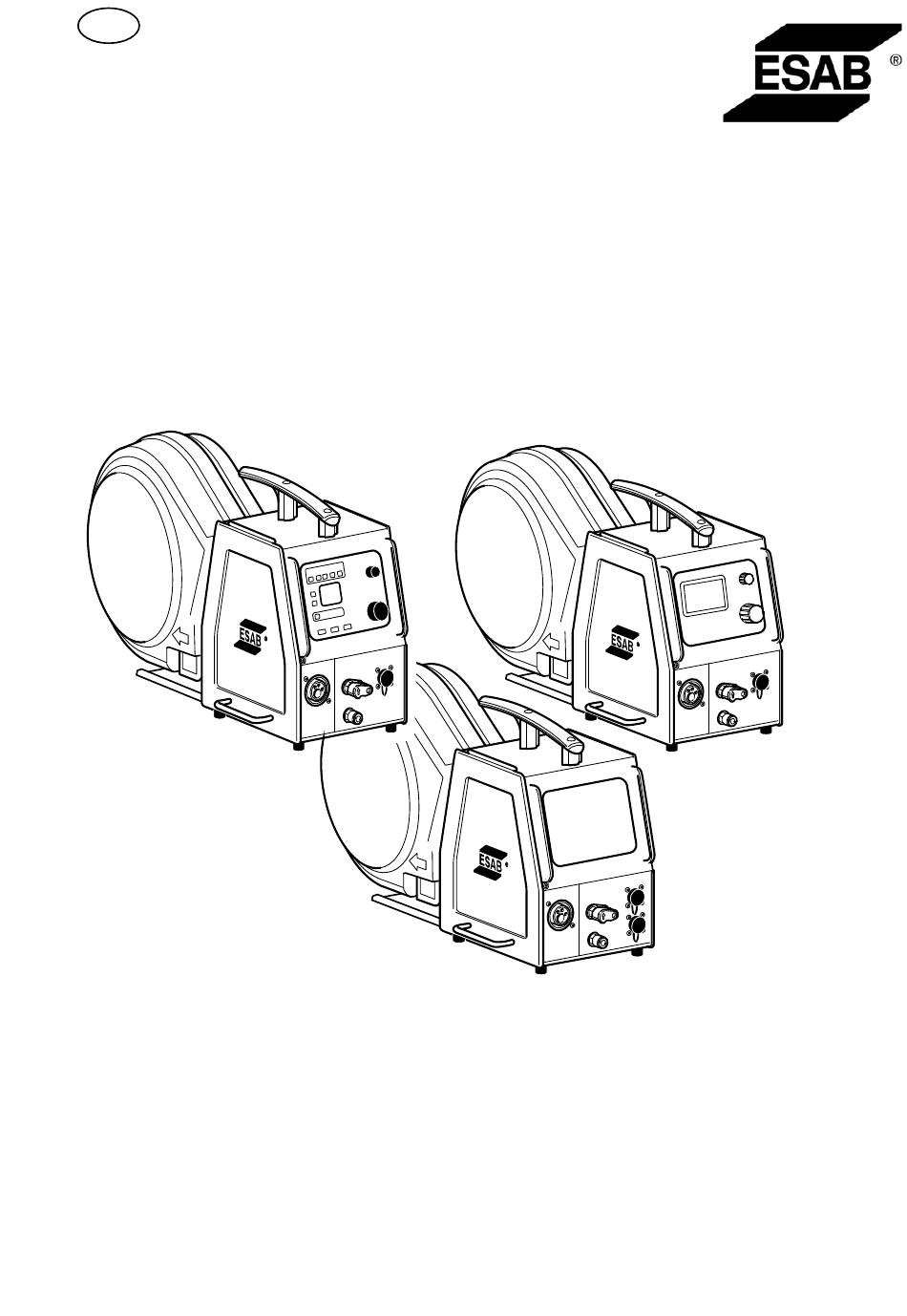

- Page 1 ® Aristo / Origo™ Feed L3004 Instruction manual 0459 813 101 GB 110308 Valid for serial no. 613-xxx-xxxx...
-
Page 2: Table Of Contents
1 DIRECTIVE ............2 SAFETY . -
Page 3: Directive
Equipment and Automation SAFETY Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be ob... - Page 4 MALFUNCTION - Call for expert assistance in the event of malfunction. Read and understand the instruction manual before installing or operating. PROTECT YOURSELF AND OTHERS! ESAB can provide you with all necessary welding protection and accessories. CAUTION Read and understand the instruction manual before installing or operating.
-
Page 5: Introduction

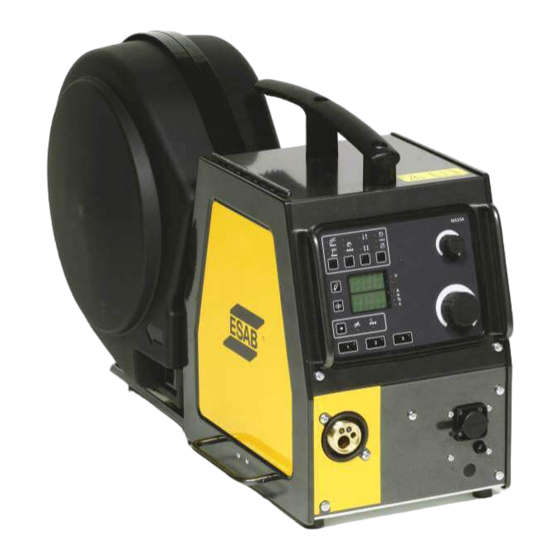

The wire feed units contain four-wheel drive wire feed mechanisms as well as control electronics. They can be used together with wire on ESAB's MarathonPact, or on wire bobbin (standard Ø 300 mm, accessory Ø 440 mm). The wire feed unit can be installed either at the trolley for the power source, suspended above the workplace, on a counter balance device or on the floor with or without wheel set. -
Page 6: Technical Data
TECHNICAL DATA Feed L3004 Power supply 42 V 50-60 Hz Power requirement 180 VA Motor current I 3.5 A Wire feed speed 0.8 - 25.0 m/min Gun connection EURO Max. diameter wire bobbin 300 mm (*440 mm) Wire dimension 0.6 - 1.2 mm 0.6 - 1.2 mm 1.0 - 1.2 mm Cored wire... -
Page 7: Lifting Instructions
CAUTION This product is intended for industrial use. In a domestic environment this product may cause radio interference. It is the user's responsibility to take adequate precautions. WARNING When welding in an environment with increased electrical danger, only power sources intended for this environment may be used. These power sources are marked with the symbol Lifting instructions Order number for lifting eyelet can be found on page 18. -
Page 8: Operation
OPERATION General safety regulations for the handling of the equipment can be found on page 3. Read through before you start using the equipment! NOTE: When moving the equipment use intended handle. Never pull on the gun. WARNING Assure that the side panels are closed during operation. WARNING To prevent the reel from sliding off the hub: Lock the reel in place by turning the red knob as shown on the... -
Page 9: Connections And Control Devices
Connection RED, for coolant from welding Connection for shielding gas Connection for welding gun Connection BLUE, for coolant from cooling unit Note! Coolant connections only available on certain models. * ELP = ESAB Logic Pump, see point 6.2. - 9 - bm44d1ea... -
Page 10: Water Connection
Water connection The wire feed unit with water connection is equipped with a detection system ELP (ESAB Logic Pump) which checks that the water hoses are connected. When connecting a water-cooled welding gun, the water pump starts. Detection only works with power sources that are equipped with ELP. -
Page 11: Maintenance
60974-5 and 60974-10. It is the obligation of the service unit which has car ried out the service or repair work to make sure that the product still conforms to the said standard. Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - 11 -... -
Page 12: Diagram
Diagram - 12 - Edition 110308 bm44e... - Page 13 - 13 - Edition 110308 bm44e...
-
Page 14: Ordering Number
0459 839 001 Spare parts list Feed L3004 0459 287 Instruction manual Control panel U6 0459 912 Instruction manual Control panel MA23 and MA23A Instruction manuals and the spare parts list are available on the Internet at www.esab.com - 14 - Edition 110308 bm44o... - Page 15 - 15 -...
-
Page 16: Wear Parts
Feed L3004 Wear parts Item Ordering no. Denomination Wire type Wire dimensions HI 1 0455 072 002 Intermediate nozzle Fe, Ss & cored 0456 615 001 Intermediate nozzle HI 2 0469 837 880 Outlet nozzle Fe, Ss & cored Ø 2.0 mm steel for 0.6-1.2 mm 0469 837 881 Outlet nozzle Ø... - Page 17 Feed L3004 - 17 - bm44w...
-
Page 18: Accessories
Feed L3004 Accessories Bobbin cover, plastic Ø 300mm ... 0458 674 880 Bobbin cover, metal Ø 300mm ... . . 0459 431 880 Bobbin holder . - Page 19 Feed L3004 Turning piece ......0458 703 880 Guide pin ....... . 0349 302 303 Quick connector MarathonPact .
- Page 20 Feed L3004 Counter balance device ....0458 705 880 (includes mast and counter balance) Remote control adapter RA23 23 pole ..0459 491 911 For connecting welding gun with RS3 program selector to CAN based equipment.
- Page 21 Feed L3004 Welding gun MXH 400w PP 6.0 m ........0700 200 015 10.0 m .
- Page 22 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 22 - notes...
- Page 23 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 23 - notes...
- Page 24 ESAB Romania Trading SRL ESAB VAMBERK s.r.o. SOUTH AFRICA ESAB Mexico S.A. Bucharest Vamberk ESAB Africa Welding & Cutting Ltd Monterrey Tel: +40 316 900 600 Tel: +420 2 819 40 885 Durbanvill 7570 - Cape Town Tel: +52 8 350 5959...
