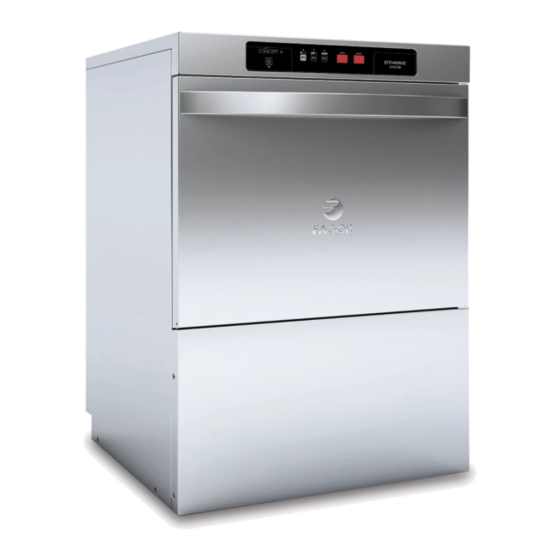

- Page 1 Hood type Dishwasher Undercounter Dishwasher Glasswasher GENERAL INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE MODELS MOD: COP-174W COP-504 W CO-502 W CO-402 W CODE: 12119601 REV. : 04 (2015)
- Page 2 READ FIRST THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL. WARNING IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATION &...
-
Page 3: Limited Warranty
Warranty Coverage: If there is a defect in material or factory workmanship covered by this Warranty reported to Fagor during the period the applicable Warranty is in force and effect, Fagor will repair or replace, at Fagor’s option, that part of the Equipment that has become defective. -
Page 4: Table Of Contents
1. INDEX INDEX ............................4 GENERAL MEASUREMENTS AND CONNECTIONS ............. 5 QUICK STARTUP GUIDES ..................... 7 ELECTRICAL DIAGRAM ......................9 ELECTRIC DIAGRAMS LEGEND ..................10 GENERAL INFORMATION AND WARNINGS ............... 11 PRODUCT DETAILS ......................11 SPECIFICATIONS ..........................12 INSTALLATION INSTRUCTIONS ..................14 Removal of packaging ........................ -
Page 5: General Measurements And Connections
2. GENERAL MEASUREMENTS AND CONNECTIONS Hood type Dishwasher COP-174W Water Drain Power Supply Cable Terminal Rinse aid Detergent Equipotential inlet hose Strain Relief inlet inlet bond... - Page 6 Undercounter Dishwasher CO-502 W / COP-504 W Glasswasher CO-402 W Water Drain Power Supply Cable Terminal Rinse aid Detergent Equipotential inlet hose Strain Relief inlet inlet bond...
-
Page 7: Quick Startup Guides
3. QUICK STARTUP GUIDES... -
Page 9: Electrical Diagram
4. ELECTRICAL DIAGRAM... -
Page 10: Electric Diagrams Legend
5. ELECTRIC DIAGRAMS LEGEND ENGLISH FRANÇAIS Grounding Mise à terre Terminal block bridge Pontage pour bloc de jonction Rinse pump Pompe de rinçage Drain pump Pompe de vidange C1, C2 Capacitor Condensateur Wash pump contactor Contacteur pompe de lavage Boiler heating contactor Contacteur chauffage surchauffeur Tank heating contactor Contacteur chauffage cuve... -
Page 11: General Information And Warnings
6. GENERAL INFORMATION AND WARNINGS This manual has been created to help you understand the operation, installation and maintenance of the machine. It contains all the necessary information and warnings to ensure that the appliance is installed and used correctly, together with information about the characteristics and possibilities offered, so that you may enjoy your machine to the full. -
Page 12: Specifications
DATA PLATE APPLIANCE MODEL NAME ELECTRICAL SPECIFICATIONS APPLIANCE REFERENCE WATER INLET SPECIFICATIONS SERIAL NUMBER + MANUFACTURE DATE These details should be quoted when the technical service is called. 7.1 SPECIFICATIONS RACKS DISHES GLASSES WASH GALLONS INLET FLOW RINSE MODEL PER HR. PER HR. - Page 13 Total Total Pump Pump Tank Boiler CONNECTION Voltage Load Power Load Power Power Power MODEL (kW) (kW) (kW) (kW) TYPE 208-240V 208V 42,18 14,48 2 x 2,36 2 x 0,49 3,68 9,81 COP-174W 60Hz 220V 44,61 16,19 2 x 2,50 2 x 0,55 4,12 10,98...
-
Page 14: Installation Instructions
COP-504W BRIDGE 208-240V, 60Hz 208-240V, 60Hz 208-240V, 60Hz 208-240V, 60Hz Boiler Full Power Boiler Full Power Boiler 2/3 Power Boiler Half Power 8. INSTALLATION INSTRUCTIONS The dishwasher shall be installed in accordance with local codes, or in the absence of local codes, installed in accordance with the applicable requirements in the National Electrical Code, NFPA 70, Canadian Electrical Code (CEC), Part 1, CSA C22.1, and Standard for Ventilation Control and Fire Protection of... -
Page 15: Electrical Connection
8.3 Electrical connection An AUTHORISED TECHNICIAN should always carry out the appliance’s electrical connection. The dishwasher shall be installed in accordance with local codes, or in the absence of local codes, installed in accordance with the applicable requirements in the National Electrical Code, NFPA 70, Canadian Electrical Code (CEC), Part 1, CSA C22.1, and Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations, NFPA 96.”. -
Page 16: Hydraulic Connection
8.4 Hydraulic connection The new hoses supplied with the appliance should be used (do not reuse old hoses). Before connecting the machine to the water supply, the water quality should be tested. Recommended water quality: Alkalinity: 6.5 to 7.5 Less than 50 ppm (mg/L) Free Chlorine: Total Dissolved Solids (TDS) : Less than 0.2 ppm (mg/L) -
Page 17: Drainage Connection
8.5 Drainage connection Attach the drain hose as shown in Fig. 5. It is recommended to affix a siphon pipe to prevent odors. All piping from the machine to the drain must be a minimum 1-1/2” I.P.S. There should also be an air gap between the machine drain line and the drain. -
Page 18: Hydraulic Rinse Aid Dispenser (Co Models)
8.6 Hydraulic rinse aid dispenser (CO MODELS) Installation: Take the tube located in the back or your machine marked “Rinse Aid” and place inside rinse container. Tubes are transparent to provide you visible mean that chemicals are being dispensed. Operation: This dispenser absorbs the rinse aid when it detects a loss in pressure during rinsing. That is, when the filling solenoid valve closes, a vacuum is created that makes the rinse aid dispenser absorb the fluid to which it is connected. -
Page 19: Detergent Dispenser
8.8 Detergent dispenser This ensures that the correct measure of detergent is supplied to the machine. Use ONLY Commercial Grade, High Temperature, Low Suds Liquid Detergent. Fagor doesn’t recommend any specific brand name of chemicals. Contact your local chemical distributor for questions concerning your chemical needs. -
Page 20: Pressure Pump
If you require the installation of an NON FAGOR Detergent and/or Rinse pump, a form MUST be fill out prior to installation by your installer. Failure to do so will void your Warranty. -
Page 21: Use And Maintenance Instructions
9. USE AND MAINTENANCE INSTRUCTIONS BEFORE STARTING THE APPLIANCE, PLEASE READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL CAREFULLY. THE APPLIANCE IS EXCLUSIVELY FOR PROFESSIONAL USE, AND SHOULD ONLY BE USED BY QUALIFIED PERSONNEL. 9.1 Operation The steps required to optimise the operation of your dishwasher are shown below, with all the available options. -
Page 22: Preparation Of The Dishes
9.1.3 Preparation of the dishes Before washing the dishes, the preparatory steps below should be followed: Remove the largest pieces of waste from the dishes before placing them in the baskets. Wash glassware first. Put the plates in the rack basket. ... -
Page 23: Switching Off The Machine
9.1.6.2 Drainage using the drainage pump (Optional) The drainage using the drainage pump option is only available on request. The drainage pipe must always be fitted on a siphon to prevent the return of odours.To drain the machine using this method, proceed as follows: ... -
Page 24: Maintenance
9.2.1 Maintenance Always clean the machine correctly to prolong the service life of the machine. Remove any waste from the machine at the end of each day. Do not use abrasive, corrosive or acid products, chlorine-based detergents, solvents or petrol derivatives to clean the machine. -
Page 25: Faults, Alarms And Breakdowns
10. FAULTS, ALARMS AND BREAKDOWNS The steps to be followed in the event of a fault or operating error are described below. The possible causes and possible solutions are listed in the following table. In the event of doubt, or if you are unable to resolve the problem, please contact the technical service. -
Page 26: Error Diagnosis
Electrical installation Call technical service to modify electrical overloaded. installation. Machine stops during operation. Machine protection has Reset safety device and if it trips again, call tripped. technical service. Pressure switch pipe Empty the tub and clean thoroughly. blocked. Machine stops and fills with water when it Pressure switch faulty. -
Page 27: Display Alarms
10.2 DISPLAY ALARMS The display may show different alarms for the temperature probes. The alarm is shown on the corresponding display (tank temperature display or boiler temperature display). “Temperature probe open” alarm. Verify proper connections at the circuit board and probe sensor. ... - Page 28 Fagor Commercial Inc. 13105 NW 47th Avenue Miami, FL. 33054, USA T. 305 779 0170 Fax. 305 779 0173 1-866-GO FAGOR www.fagorcommercial.com...
