Automatic Diagnostics

J
If an Autotest fails, press
information about the failure. The diagnostic screens show
likely causes of the failure and suggest actions you can take
to solve the problem.
Fault Info for diagnostic

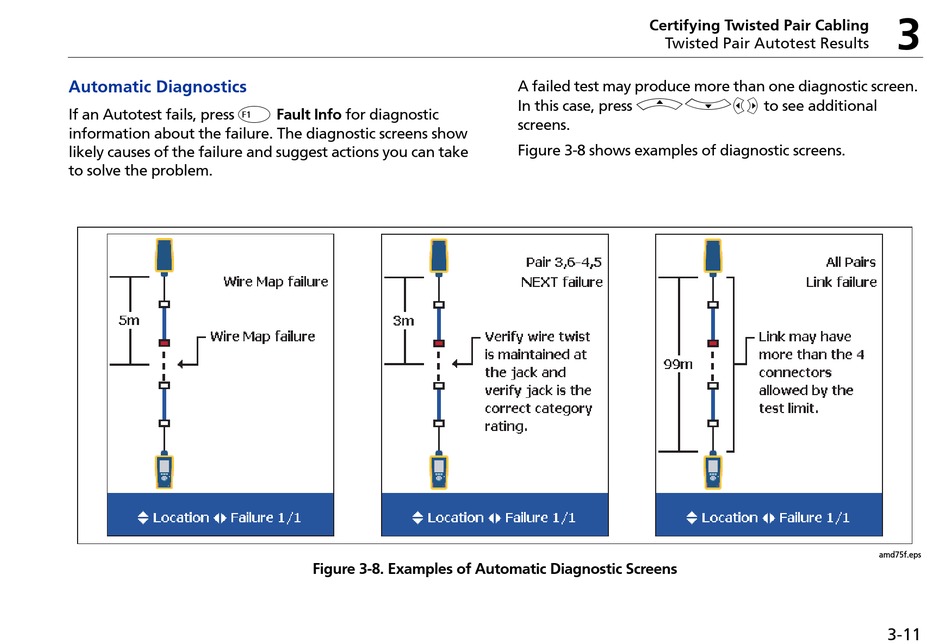

Figure 3-8. Examples of Automatic Diagnostic Screens
Certifying Twisted Pair Cabling
Twisted Pair Autotest Results
A failed test may produce more than one diagnostic screen.
ADBC
In this case, press
screens.
Figure 3-8 shows examples of diagnostic screens.
3
to see additional
amd75f.eps
3-11
