Y
Y7P/Y10P
Manual 1.2 en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Y10P and is the answer not in the manual?

Questions and answers

Related Manuals for d&b audiotechnik Y10P

Summary of Contents for d&b audiotechnik Y10P

  • Page 1 Y7P/Y10P Manual 1.2 en...
  • Page 2 General information Y7P/Y10P Manual Version: 1.2 en, 03/2016, D2710.EN .01 Copyright © 2016 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new owner.

  • Page 3: Table Of Contents

    2.1. Product description..............5 2.2. Connections................6 2.3. Operation................6 2.3.1. Controller settings..............6 2.4. Dispersion characteristics............8 2.5. Technical specifications............10 Manufacturer's declarations........11 3.1. EU conformity of loudspeakers (CE symbol)....... 11 3.1.1. WEEE Declaration (Disposal)........... 11 d&b Y7P/Y10P Manual 1.2 en...

  • Page 4: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b Y7P/Y10P Manual 1.2 en...

  • Page 5: Y7P/Y10P Loudspeaker

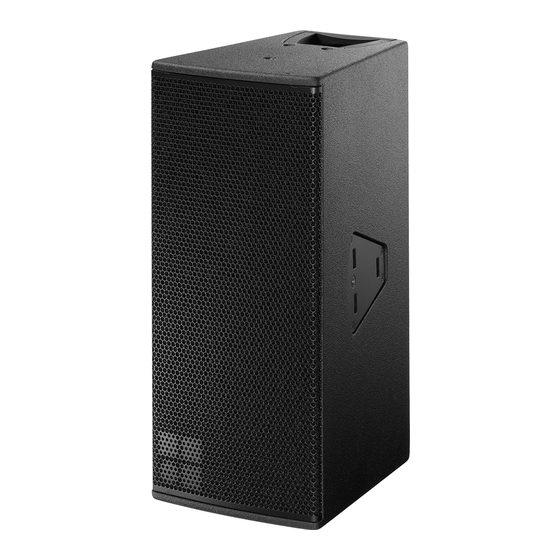

    2. Y7P/Y10P loudspeaker 2.1. Product description Y7P/Y10P are passive 2-way loudspeakers housing two 8" LF drivers and a 1.4" HF compression driver with a rotatable CD horn producing a nominal dispersion (h x v) of 75° x 40° or 110° x 40°, respectively.

  • Page 6: Connections

    For acoustic adjustment the functions CUT, HFA and CPL can be selected. CUT circuit Set to CUT, the cabinet low frequency level is reduced. The cabinets are now configured for use with actively driven d&b subwoofers. d&b Y7P/Y10P Manual 1.2 en...
  • Page 7 Positive CPL values create an adjustable low frequency boost (0 to +5 dB) at around 65 Hz and can be set when the system is used in full range mode without subwoofers. Frequency response correction of CPL circuit d&b Y7P/Y10P Manual 1.2 en...

  • Page 8: Dispersion Characteristics

    The following graphs show dispersion angle over frequency of a single cabinet plotted using lines of equal sound pressure (isobars) at –6 dB and –12 dB. vertical setup Isobar diagram horizontal Isobar diagram vertical horizontal setup, horn rotated Isobar diagram horizontal Isobar diagram vertical d&b Y7P/Y10P Manual 1.2 en...
  • Page 9 Make sure the gasket of the horn is in place. – Refit the horn. – Insert all screws and carefully tighten them clockwise until they fit precisely into the countersunk holes. 4. Refit the front grill. Altering the HF dispersion d&b Y7P/Y10P Manual 1.2 en...

  • Page 10: Technical Specifications

    131 dB Y10P with D12/D20/30D 134 dB Y10P with D80 136 dB Y7P frequency response, standard and CUT modes (SPLmax peak, pink noise test signal with crest factor of 4) Y7P/Y10P loudspeaker Nominal impedance 8 ohms Power handling capacity (RMS/peak 10 ms)

  • Page 11: Manufacturer's Declarations

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b Y7P/Y10P Manual 1.2 en...
  • Page 12 www.dbaudio.com...
