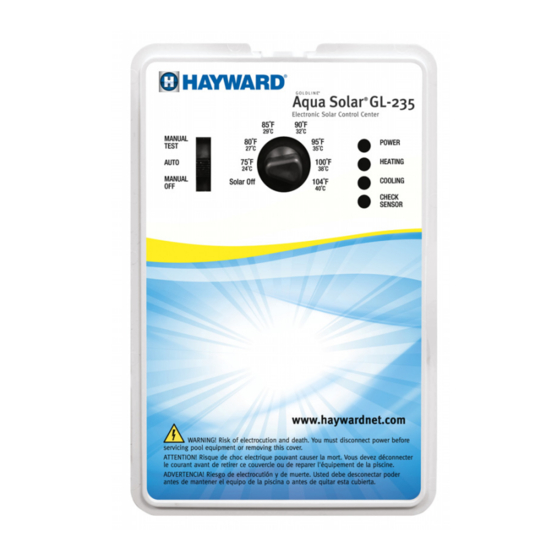

Aqua Solar
GL-235
Electronic Solar Control
Operation and Installation
Manual
GL-235
www.haywardnet.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aqua Solar GL-235 and is the answer not in the manual?

Questions and answers

Mick oneil
March 2, 2025

Yes my Hayward aqua solar gl-235 has power and the power heating and cooling lights are on I try and manual test the actuator and I have nothing.?

1 comments:
Mr. Anderson
March 2, 2025

If the Hayward Aqua Solar GL-235 has power but the actuator does not respond during a manual test, possible issues include:

1. Incorrect Connector Placement – Ensure the actuator is plugged into the correct 3-pin connector. If the valve operates in the opposite direction, try switching to the other connector.
2. Blown Fuse – Check the fuse located on the left side of the main circuit board. Replace it with a 2A, type ATO-2 fuse if necessary.
3. Faulty Control Circuitry – Verify the control circuitry by disconnecting the solar sensor from the terminal block. If the “Heating” LED does not turn off and the “CHECK SENSOR” LED does not turn on, the control board may have an issue.
4. Dip Switch Settings – Ensure the dip switch settings are correctly configured for automation.
5. Temperature Dial Misalignment – Confirm that the temperature dial is set to the desired temperature.

If none of these steps resolve the issue, further inspection of the actuator and wiring may be needed.

This answer is automatically generated

Ron Ortoan
February 11, 2025

Solar system will not turn on during warm days, My pool is at 78 degrees and my solar system is set to 90, I can manually test it and it will work but it will not automatically turn on

1 comments:
Mr. Anderson
February 12, 2025

The Hayward Aqua Solar GL-235 system will only turn on when the collector (solar) sensor temperature is at least 4ºF higher than the pool/spa sensor temperature and the pool/spa temperature is below the "Desired Temperature" setting. If the pool temperature is 78ºF and the system does not turn on, possible reasons include:

1. The solar collector temperature is not at least 4ºF higher than 78ºF.
2. The "Desired Temperature" setting is 78ºF or lower, meaning the system does not need to heat the pool.
3. A malfunction in the pool or solar sensor could prevent proper operation.
4. The system is not set to "AUTO" mode.

To troubleshoot, ensure the system is in "AUTO" and check sensor readings.

This answer is automatically generated

Summary of Contents for Hayward Aqua Solar GL-235

  • Page 1 INCIDENTAL DAMAGES OF ANY NATURE WHATSOEVER. No wholesaler, agent, dealer, contractor, or other person is authorized to give any warranty on behalf of Hayward. This warranty is void if the product has been altered in any way after leaving the factory.
  • Page 2: Specifications

    Temperature/Resistance/Voltage Power: 105-130VAC, .5A 50/60Hz. Pool All Hayward controls use 10K thermistor sensors. When disconnected from the control Temp.: 70-104ºF calibrated scale 195-250VAC, .3A 50/60Hz the sensor will read 10K ohms at 25ºC/77ºF. Refer to the chart below for the resistance or Solar Off, 75 (24ºC) -...
  • Page 3: Troubleshooting

    Fuse Replacement For newer Hayward, Compool and Jandy actuators (with wire end connectors), two 3- The GL-235 is protected by a fuse located on the left side of the main circuit board. pin connectors are supplied. Plug the actuator into one of the two 3 pin connectors Replace the fuse with a 2A, type ATO-2 fuse, readily available in most automotive or as shown in figures 2 or 3.
  • Page 4 NOT recommended in climates where freezing temperatures are common or last for extended periods. Hayward strongly recommends the use of GC-3 freeze snap switches if freeze protection is being utilized. Snap switches should be wired in series with the collector sensor.
  • Page 5: Operation

    Operation For normal operation place the switch in the “AUTO” position and adjust the desired pool/spa temperature setting. The “Power” LED indicator should always be on. (NOTE: During initial power up, the “POWER indicator will blink for approximately 10 seconds while it stabilizes temperature readings).
  • Page 6 Basic Installation of GL-235 GL-235 high voltage output used for Timer Override Figure 2 Figure 3...
