092680 RevE

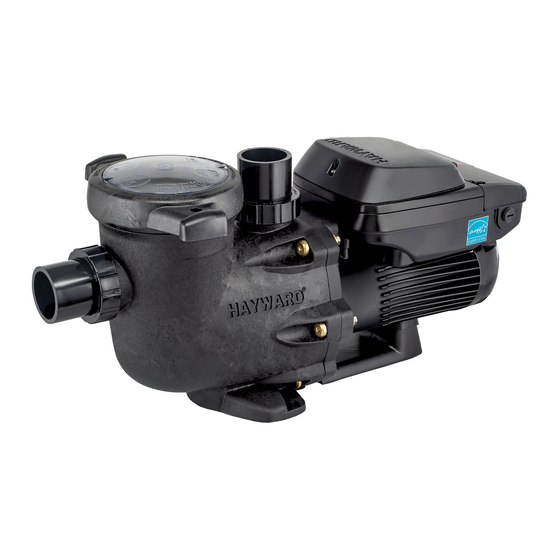

VS Omni
Pool Automation Control
Installation Manual
Contents
Before you Begin.....................3
Mounting...............................7
Plumbing................................9
Wiring...................................10
Startup................................22
Configuration........................22
HL32950VSP HL32900VSP
HL2350020VSP HL2670020VSP
Hayward Industries
400 Connell Drive, Suite 6100
Berkeley Heights, NJ 07922
Phone: (908) 355-7995
www.hayward.com
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS Omni and is the answer not in the manual?

Questions and answers

Related Manuals for Hayward VS Omni

Summary of Contents for Hayward VS Omni

  • Page 1 VS Omni Pool Automation Control Installation Manual Contents Before you Begin.....3 Mounting.......7 Plumbing........9 Wiring........10 Startup........22 Configuration......22 HL32950VSP HL32900VSP HL2350020VSP HL2670020VSP Hayward Industries 400 Connell Drive, Suite 6100 Berkeley Heights, NJ 07922 Phone: (908) 355-7995 www.hayward.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 2 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Hayward could void the user’s authority to operate this equipment.

  • Page 3: Table Of Contents

    Table of Contents Before you Begin.......................3 Overview........................4 Mounting VS Hub......................7 Control Pad.......................7 Smart Relay......................8 Temperature Sensors..................9 Plumbing.........................9 Electrical Wiring High Voltage....................11 Low Voltage......................14 System Startup......................22 Configuration Pre Programmed Configuration................25 Typical Configuration..................25 Advanced Configuration..................27 Quick Edit......................46 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...

  • Page 4: Before You Begin

    2 Wiring Whips - 6 ft flexible conduit containing three 12AWG conductors (red, black and green) for wiring VSP to VS Omni Hub and for Smart Relay installation). A length of white 12 AWG conductor is included to replace red for 115V Smart Relay applications •...

  • Page 5: Overview

    ORP and can dispense acid for pH control and chlorine for ORP control (requires additional equip- ment) • controls an optional Hayward Aqua Rite salt chlorinator. If controlled by the VS Omni, the Aqua Rite must have a HLAQRPCB communication board installed Optional accessories (page 3) can expand the functionality of the VS Omni.
  • Page 6 If a timer must be used, set the timer to power the Hub continuously. For convenience, a 6ft Wiring Whip is included with the VS Omni. This whip is intended to connect the Hub's input power to the variable speed pump if using 230 VAC. This connection should be made inside of the Hub and will ensure that both the Hub and pump are powered continuously.
  • Page 7 VS Omni. The VS Omni is designed to be mounted outdoors at the pool pad. Both the Hub and the Control Pad are water resistant and can be left out for the winter. Details on each installation step are shown below: 1.

  • Page 8: Control Pad

    8. Tighten until the bottom of the screw heads are 1/8" off the mounting surface. Position the Control Pad cutouts over the screw and slide the unit downward. You may have to tighten or loosen the screws slightly to fully engage the screw heads to get a snug fit. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...

  • Page 9: Smart Relay

    Smart Relay in an accessible location to use this feature in case of com- munication loss. Mount the Smart Relay to a wall or other flat surface using the mounting holes which are designed to accommodate #8 screws. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...

  • Page 10: Temperature Sensors

    This will ensure that if a leak occurs anywhere at the pool pad, the VS Omni will be able to detect it. Understand that if a leak occurs after the flow switch (downstream), the VS Omni will not sense a no flow condition.

  • Page 11: Electrical Wiring

    Temperature Sensors, External Input & Heater Communication for Smart Relays, Sense Control Pad & Dispense, Aqua Rite, Variable Speed Pumps Valve Actuators Flow Switch (Hub must be powered by 230 VAC) Input Power Ground Screw USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...

  • Page 12: High Voltage

    Wiring Whip to aid in this connection. The diagram below shows an existing timeclock used to power the old pump. This configuration can be easily modified to power the VS Omni and the new VSP. Refer to the diagrams below.
  • Page 13 If using an existing timeclock to power the Omni VS Hub, set it to run constantly. If the VS Omni Hub will be connected to a panel or switch, the power will have to be left on continuously.
  • Page 14 Refer to the table below when viewing the Smart Relay's indicator LEDs. Note that when the "Relay On" LED is OFF, the relay is in an OFF state and there is no power going out to the load. When Green, the relay is energized and the load receives power. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...

  • Page 15: Low Voltage

    Do not run low voltage wiring through a knockout or with any high voltage wiring. Hayward Variable Speed Pump (VSP) Wiring A separate VSP pump manual has been included with the VS Omni. For low voltage communication wiring information, refer to the pump manual.
  • Page 16 Valve Actuators When wired for 230 VAC, the VS Omni can control up to two valve actuators which allow automated control of pool/spa, water features, cleaners or solar heating. The VS Omni is compatible with stan- dard valve actuators manufactured by Hayward, Pentair/Compool, and Jandy. Actuators have 15 ft cables that are terminated with connectors that plug directly into the Hub as shown on page 10.
  • Page 17 USB port and Ethernet port on the bottom of the Control Pad. The ethernet port is available for those that desire a wired connection to their access point, rather than using the VS Omni's built-in wifi (see page 21). The USB port is used for firmware upgrades. Optional Flow Switch The 15 ft flow switch cable plugs into the flow switch connector shown on page 10.
  • Page 18 Switch heater to either “Pool” or “Spa” (it doesn’t make any difference which is selected, the Hub will take control). Heater display should be “bO” (for “bypass On). Heater will start whenever Hub requests (when Hub “Heater” LED is illuminated). USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 19 “MODE” key on the heater keypad to put the control into “STANDBY” mode. Then press and hold both the “DOWN” and “MODE” keys for 3 seconds until the display shows the code “bo”. Orange Wire White Wire USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 20 “OFF” display and, thinking this is a mistake, change the mode to “POOL” or “SPA” which then disables the remote control by the Hub. To prevent this: Remove the heater Touchpad connector (P5) which will disable the touchpad. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 21 2. Remove upper jacket and open the control box. 3. Remove the jumper for the “fireman’s switch. 4. Wire to the Hub using wire rated for 105°C minimum. Transformer Fireman’s Switch Operating ‘Control Terminal Board 120 V STA-RITE USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 22 Connection to the web is optional. If web enabled devices such as PCs, laptops, tablets or phones will be used to access the VS Omni, an ethernet or wireless connection must be made to the home router. For wireless connections, refer to the Configuration section of this manual. For ethernet con- nections, use outdoor rated Cat5e or Cat6 ethernet cable.

  • Page 23: System Startup

    Configuration Initial Configuration Because this is the first time that the VS Omni has been powered on, it will bring you directly to the initial configuration screen shown below. Note that the VS Omni Control Pad uses a resistive touch screen that is appropriate for a pool environment.

  • Page 24: Pre Programmed Configuration

    Because this process may take some time, do not begin to configure the VS Omni unless you can dedicate at least 15 minutes or more. Configuring the VS Omni requires knowledge of all of the connected pool equipment.
  • Page 25 Network Diagnostic screen will appear and the VS Omni will run through a series of checks to verify connection to the access point. When the system is done running through the diagnostics, press the check mark to continue to the next section of the Configuration Wizard.
  • Page 26 Configuration Summary screen after connecting to your home network. This screen details all of the equipment that you have connected and configured to your VS Omni. Verify that the information on this screen is correct and then press the check mark to continue.
  • Page 27 Omni. If Yes is selected: What type of heater? Select the type of heater that is connected to the VS Omni. Solar heating is not an option for a Typical configuration -- only Heat Pump and Gas are avail- able.
  • Page 28 Be aware that you may be asked to configure options/features that the VS Omni does not support. If unclear, refer to the "Features" section on page 4 to determine the type of operation that the VS Omni supports. Configuring equipment or functions that are not sup- ported will prevent the VS Omni from working properly.
  • Page 29 MSP ID - The VS Omni MSP ID number will be displayed. This unique number is used to identify your VS Omni when setting up a web account. A web account is needed to access the VS Omni over the web by mobile devices. IMPORTANT: write down the MSP ID number for future use. The MSP ID number will be needed when entering the configuration wizard after initial configuration as well as entering and exiting Simple Mode.
  • Page 30 Name Filter Pump - Touch the box and use the keyboard to name the filter pump. What Type of Pump? - Depending on your answer, the VS Omni will use one Smart Relay (single speed pumps), two Smart Relays (two speed pumps) or the low speed communication bus (Hayward supported VSP pumps only) for pump control.
  • Page 31 Flow Monitoring Enabled? Requires use of a Hayward flow switch. This feature will help protect the filter pump from damage due to no flow. When Yes is selected, the VS Omni will monitor the state of water flow when the filter pump is on. If no flow is detected for more than 15 minutes, the VS Omni will shut down the pool pump and will indicate an error.
  • Page 32 How Many Heaters? - Answer "0", "1" or "2" to this question. The VS Omni supports up to two heaters for one body of water (conventional and solar only) and only one heater for two bodies of water. If “1”or more is selected: Heater Cooldown Enabled? This feature ensures that the heater cools down before wa- ter circulation is stopped.
  • Page 33 Does the Solar Heater Have a Pump? Select whether the solar heating sys- tem has a dedicated recirculation pump. If so, the VS Omni will turn this pump on when the pool temperature is below the heater setting and there is solar heat available.
  • Page 34 VS Omni. If Yes is selected: The next few screens will configure the VS Omni to use Sense and Dispense. The VS Omni automatically detects smart components like the HL-CHEM, and assigns a Hayward Unique Address. If multiple components are detected, the VS Omni will show a table of devices and prompt you to select the proper device.
  • Page 35 Raise this value to generate more chlorine. Lower this value to generate less. Is pH Reduction Enabled? Select Yes if you have a dispenser connected to the VS Omni that will lower pool water pH. If Yes is selected: Are you Using Acid or CO ? Select one.
  • Page 36 How many cleaners? The VS Omni has two actuator outputs. If controlling a pool and spa (two bodies of water), you cannot add a cleaner that requires a valve.
  • Page 37 If freeze protection is en- abled AND the air temperature falls below the freeze threshold (refer to pump configura- tion), the VS Omni will turn on the cleaner pump to circulate the water. If Yes is selected:...
  • Page 38 Name of Water Feature - Touch the box and use the keyboard to name the water feature. Does Water feature Have a Pump? Select whether the water feature has a dedicated pump. If so, the VS Omni will turn this pump on when the water feature is scheduled to run.
  • Page 39 Would You Like To Configure A Default Startup Speed For Water Feature? If the water feature has a valve and the system uses a VSP filter pump, the VS Omni allows you to set a startup pump speed for the water feature, regardless of the pump’s schedule. The speed will change at the next scheduled interval.
  • Page 40 Would you like to test for OmniDirect capability? For UCL lights manufac- tured after June 2018, you can select Yes and the VS Omni will test your lights to confirm. If your lights blink white after the test, you can enable OmniDirect mode.
  • Page 41 Would You Like To Configure A Default Startup Speed For the Accessory? If the ac- cessory has a valve and the system uses a VSP filter pump, the VS Omni allows you to set USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 42 (typically SENS1) and touch the Done button. The sensor connection should now be shown in the box and you can advance to the next screen to continue configuration. Do You Have a Flow Switch? Select whether there is a flow switch wired to the VS Omni. If Yes is selected: Where is the Sensor Wired? Touching the box will bring you to a table showing all detected sensors connections.
  • Page 43 Would You Like to Add an Interlock? An interlock will allow the VS Omni to turn on or to turn off a piece of pool equipment (slave) based on the state of other pool equipment (master). An example of this is would be the desire to turn on walkway lighting (slave) every time the pool deck lights (master) are turned on.
  • Page 44 With Equipment to Mode interlock, affected equipment will activate/deactivate based on which mode the VS Omni is in; Pool, Spa or Spillover. You can configure this interlock to turn on/off equipment whenever the VS Omni goes into one of these available modes.
  • Page 45 Read through the description and make sure the interlock will function as desired. Configuration Summary The VS Omni displays all configured equipment in a table for you to view. Scroll through all configured devices and make sure they've been properly assigned.

  • Page 46: Quick Edit

    Bodies of Water • Backyard • Sensors • Interlocks/Add Interlock • System Options If Bodies of Water is selected: Select the Equipment that you would like to configure - The options are as follows: Filter USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 47 Type - Change the type of Filter Pump that is configured (Single Speed, 2-Speed, or VSP) HUA - Match the HUA (Hayward Unique Address) to the configured Filter Pump. This option only appears if the Filter Pump is configured as a variable speed pump.
  • Page 48 When enabled, the VS Omni will continue to run the filter pump for 5 minutes after the heater turns off. Max Temperature - Select the maximum allowed heater setpoint temperature. Select a Heater - Once you select a heater, all of the options for that heater will appear on the next screen.
  • Page 49 Valve Cycle - Configure the valve cycling time period for the cleaner. This option is only available if the cleaner has an assigned valve. Speed - Change the minimum and maximum allowed speeds of the cleaner as USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 50 These steps are described in the Configuration Wizard portion of this manual. Select an Existing Group of Lights - Once you select a group of existing lights, USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 51 Delete an Accessory - From this screen, if you wish to delete an accessory that is currently configured, select the Delete button on the right of the name of the acces- sory that you wish to delete. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 52 Delete an Interlock - From this screen, if you wish to delete an interlock that is currently con- figured, select the Delete button on the right of the name of the interlock that you wish to delete. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 53 Not Now - Skip network setup and continue with Configuration Wizard. Mood Color - To alert the user of warning conditions (no flow, failed sensor, etc.), the VS Omni can change its screen color. The screen can display yellow or red depending on the severity of the condition.
  • Page 54 Themes. These Themes had to have been defined prior to configuring the Aux buttons. Select the desired Theme that you want to assign to the Aux button Unconfigured - If set to “Unconfigured”, the Aux button will have no function. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 55 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
  • Page 56 Hayward is a registered trademark and VS Omni is a trademark of Hayward Industries, Inc. © 2021 Hayward Industries, Inc. All other trademarks not owned by Hayward are the property of their respective owners. Hayward is not in any way affiliated with or endorsed by those third parties.
