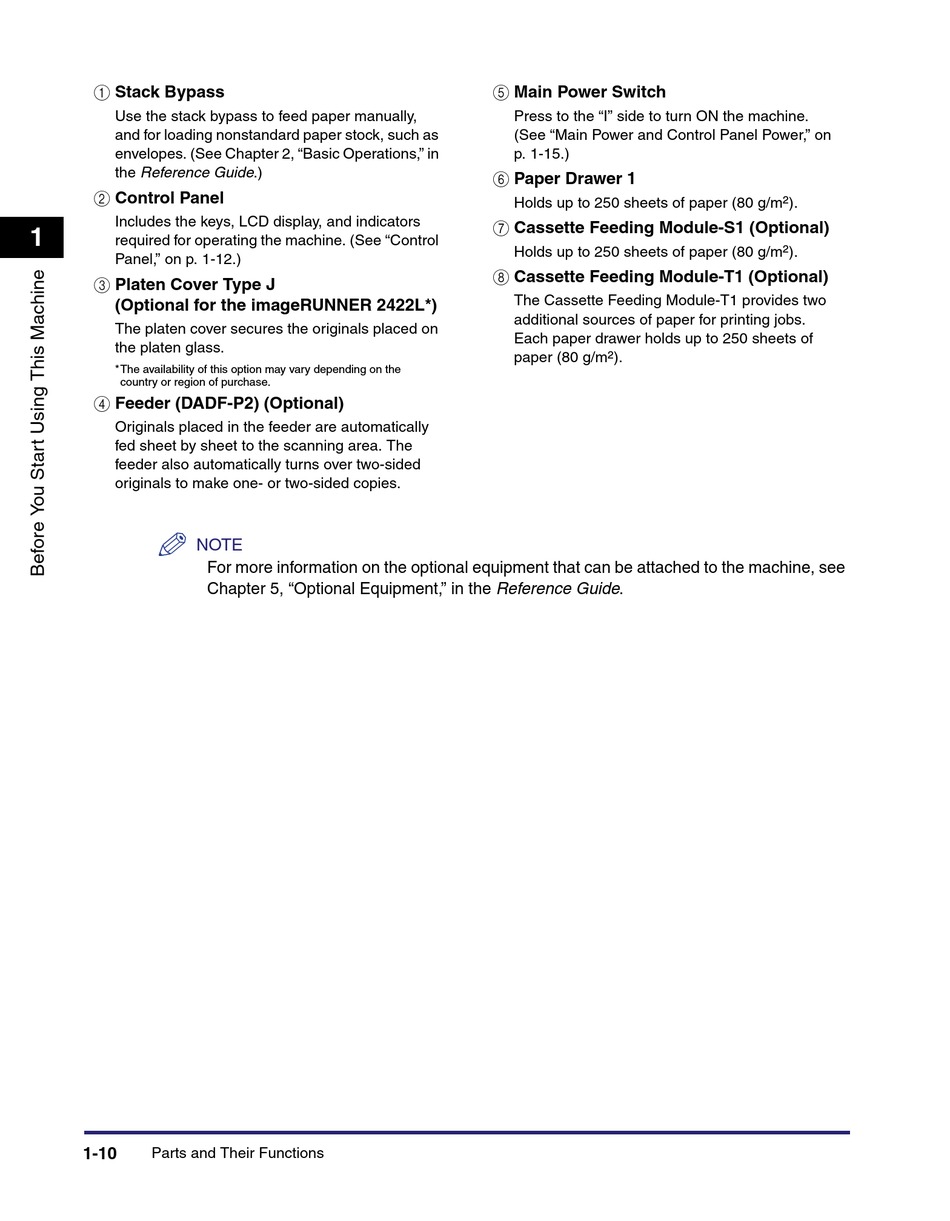

a Stack Bypass
Use the stack bypass to feed paper manually,
and for loading nonstandard paper stock, such as
envelopes. (See Chapter 2, "Basic Operations," in
the Reference Guide.)
b Control Panel
Includes the keys, LCD display, and indicators
1
required for operating the machine. (See "Control
Panel," on p. 1-12.)
c Platen Cover Type J
(Optional for the imageRUNNER 2422L*)
The platen cover secures the originals placed on
the platen glass.
*The availability of this option may vary depending on the
country or region of purchase.
d Feeder (DADF-P2) (Optional)
Originals placed in the feeder are automatically
fed sheet by sheet to the scanning area. The
feeder also automatically turns over two-sided
originals to make one- or two-sided copies.
NOTE
For more information on the optional equipment that can be attached to the machine, see
Chapter 5, "Optional Equipment," in the Reference Guide.
1-10
Parts and Their Functions
e Main Power Switch
Press to the "I" side to turn ON the machine.
(See "Main Power and Control Panel Power," on
p. 1-15.)
f Paper Drawer 1
Holds up to 250 sheets of paper (80 g/m
g Cassette Feeding Module-S1 (Optional)
Holds up to 250 sheets of paper (80 g/m
h Cassette Feeding Module-T1 (Optional)
The Cassette Feeding Module-T1 provides two
additional sources of paper for printing jobs.
Each paper drawer holds up to 250 sheets of
paper (80 g/m 2 ).
