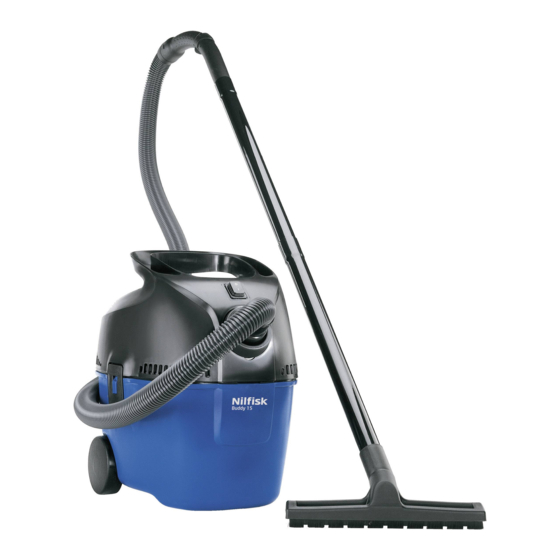

Nilfisk-ALTO Buddy 18 Service Manual
  1. Manuals
  2. Brands
  3. Nilfisk-ALTO Manuals
  4. Vacuum Cleaner
  5. Buddy 18
  6. Service manual

Nilfisk-ALTO Buddy 18 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Buddy 15/18
Aero 20-01/INOX
Aero 20-11/-21/-21INOX
Aero 25-11/-21
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Buddy 18 and is the answer not in the manual?

Questions and answers

Related Manuals for Nilfisk-ALTO Buddy 18

Summary of Contents for Nilfisk-ALTO Buddy 18

  • Page 1 Buddy 15/18 Aero 20-01/INOX Aero 20-11/-21/-21INOX Aero 25-11/-21 Service Manual...
  • Page 2 A. Preface / Safety Instructions B. Technical data C. Troubleshooting D. Service E. Tools F. Wiring...

  • Page 3: Table Of Contents

    4.1 Disassembling / assembling filter cleaning (tappet).............. 19 4.2 Disassembling / assembling filter cleaning (flap)..............19 Tools Special tools............ 20 Wiring Wiring diagram..........21 1.1 Wiring diagram Buddy 15/18, Aero 20/25-01/INOX..........21 1.2 Wiring diagram Aero 20/25-11......22 1.3 Wiring diagram Aero 20/25-21/-21INOX....23 3/23...

  • Page 4: Safety Instructions

    Preface This repair manual contains a detailed description of the main repair work for wet and dry clea- ners of the Nilfisk-ALTO Buddy and Aero Series. Repair work requires a suitable testing workplace with the necessary power supply. If operating errors are evident, refer the customer to the operating instructions.
  • Page 5 Ve rsion / Type Buddy 15 Buddy 18 Country Va ria nts 230V Voltage 50/60 Frequency Fusing 1000 Power consumption PIEC Connected load for appliance socket Total connected load Power cord lenght AW G Power cord type H05VV-F 2x0,75 18/2...
  • Page 6 Ve rsion / Ae ro 20-01 Ae ro 20-01 *INOX* Ae ro 25-01 Ae ro 20-11 Type Country DK CH Va ria nts 230V 110V 230V Voltage Frequency 50/60 Fusing Power consumption PIEC 1000 1150 1000 Connected load for 2000 1200 1300 appliance socket...
  • Page 7 Ve rsion / Ae ro 20-21 Ae ro 25-11 Ae ro 20-21 Ae ro 25-21 Type *INOX* Country Va ria nts 230V Voltage Frequency 50/60 Fusing Power consumption PIEC W 1150 1000 1150 1000 Connected load for 2000 1300 2000 2000 1150 1800...

  • Page 8: Buddy 15/18, Aero 20/25-01/11- Motor Not Working

    Nil i k Troubleshooting ALTO Troubleshooting Buddy / Aero-01/11 Buddy 15/18, Aero 20/25-01/11- Motor not working Ch c : -Ma n v l age p ese t i s o t -Powe co d p u g d in? l g e...

  • Page 9: Aero

    Nil i k Troubleshooting ALTO Troubleshooting / Aero-20/25-21 Aero 20/25-21- Motor not working with switch set to “I” - M ns vol a t ge ese ? - Power cor pl gged n? - Sw t i ch 1set t “ ? o I”...

  • Page 10: Motor Not Working With Switch Set To "Ii

    Nil i k Troubleshooting ALTO Troubleshooting / Aero-20/25-21 Aero 20/25-21- Motor not working with switch set to “II” Check: -Ma ns volt ge present -Power cord p ugged in? -Sw tc S1 et to “II”? -Sw tc ed-on l ad i h at lea t 20 W pl gged into coup er soc et C eck m n pl...

  • Page 11: Suction Head (Buddy)

    Nil i k Se vice ALTO 1 Suction head (Buddy) Cover / intake fitting 1.1 Disassembling/assembling the intake fitting 1.) Press the two snap-in lugs (3) of the intake fitting (1) outwards with special pliers (2) (see E/1, page 19) while pulling the intake fitting (1) frontally out of the suction head.

  • Page 12: Container (Aero)

    Nil i k S r i e e v c ALTO 2 Container (Aero) Container / intake fitting 2.1 Disassembling/assembling the container ring (Aero 20 INOX only) 1.) Remove the suction head from the container (1) 2.) Put down the container (1) on its side. Firmly pull off the container ring (2) by hand downwards from the container (1) and remove it.

  • Page 13: Disassembling/Assembling The Intake Fitting In The Plastic Container

    Nil i k S r i e e v c ALTO Container / intake fitting 2.3 Disassembling/assembling the intake fitting in the plastic container Disassembly: The intake fitting is snapped onto the container and can only be removed by breaking it. Assembly: Hold the intake fitting correctly positioned in the container opening and push it in until it audibly...

  • Page 14: Suction Head / Electrical Components (Aero)14

    Nil i k S r i e e v c ALTO 3 Suction head / electrical components (Aero) Cover / Clamps 3.1 Disassembling/assembling the cover 1.) Undo the two screws (1) at the handle with a Phillips screwdriver. 2.) Lift off the cover and put it down to the side. 3.) Assemble in the reverse order, making sure cables are not squashed or caught up.

  • Page 15: Disassembling/Assembling The Power Cord

    Nil i k S r i e e v c ALTO Power cord 3.3 Disassembling/assembling the power cord 1.) Remove the cover (see D/3.1, page 14). 2.) Disconnect the earth lead (1) from the socket (Aero 20/25-11/21 only). 3.) Disconnect the two leads (2) from the switch.

  • Page 16: Disassembling/Assembling The Switch

    Nil i k S r i e e v c ALTO Switch / socket 3.4 Disassembling/assembling the switch 1.) Remove the cover (see D/3.1, page 14). 2.) Mark the position of the cable lugs (1) and disconnect all lugs from the switch (2). 3.) Press the switch (2) downwards and out of the shell opening.

  • Page 17: Disassembling/Assembling The Start-Up Unit

    Nil i k S r i e e v c ALTO Start-up unit / clamping plate 3.6 Disassembling/assembling the start-up unit 1.) Remove the cover (see D/3.1, page 14). 2.) Disconnect the brown (1), blue (1) and black (1) leads from the switch. 3.) Disconnect the black lead (2) from the socket and pull it off.

  • Page 18: Disassembling/Assembling The Motor

    Nil i k S r i e e v c ALTO Clamping plate / motor 4.) Disconnect the power leads from the switch and the socket (see D/3.3, page 15). 5.) Pull the start-up unit (4) upwards out of its holder (see D/3.6, page 17) and remove it together with the cover.

  • Page 19: Filter Cleaning (Aero)

    Nil i k S r i e e v c ALTO 4 Filter cleaning (Aero) Tappet / flap 4.1 Disassembling/assembling the filter cleaning (tappet) 1.) Disassemble the clamping plate (see D/3.7, page 17). 2.) Use pointed-end pliers (3) to press the snap- in lugs (1) at the tappet (4) together while pulling out the tappet (4) downwards.

  • Page 20: Special Tools

    Nil i k T ols ALTO Special tools Special tools 1.) Special pliers (p/n: 302002482) Aero 4044 Special pliers (p/n: 302002482) for removal of intake fitting used for Buddy series. 20/23...

  • Page 21: Wiring Diagram

    Nil i k ALTO 1 Wiring diagram Buddy 15/18; Aero 20/25-01/INOX 1.1 Wiring diagram Buddy 15/18; Aero 20/25-01/INOX 21/23...

  • Page 22: Wiring Diagram Aero 20/25-11

    Nil i k ALTO Aero 20/25-11 1.2 Wiring diagram Aero 20/25-11 22/23...

  • Page 23: Wiring Diagram Aero 20/25-21/-21Inox

    Nil i k ALTO Aero 20/25-21 1.3 Wiring diagram Aero 20/25-21 23/23...
