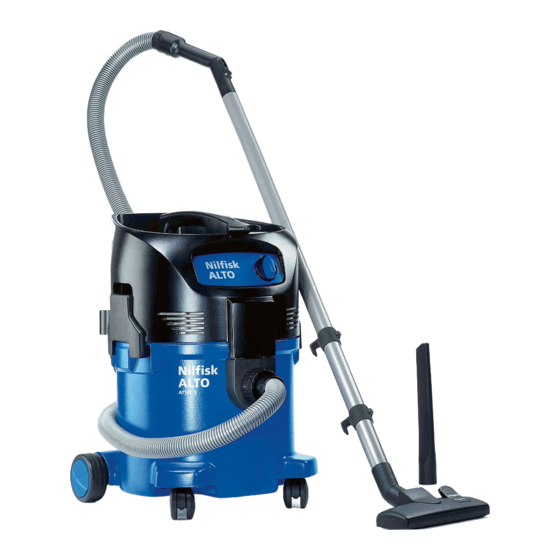

Page 1 ATTIX BASIC-ATTIX 30- 01 PC ATTIX 30-11 PC-ATTIX 30-21 PC ATTIX 40-01 PC INOX-ATTIX 40-21 PC INOX ATTIX 50- 01 PC- ATTIX 50-21 PC Wet & Dry Vacuums Repair manual...
Page 2: Table Of Contents
Nilfisk Index ALTO A. Saftey Issues B. Technical data C. Construction Function 9-10 E. Trouble shooting 11-15 Spare parts 16-20 G. Diagram 21-22 H. Tools...
Page 3 Nilfisk Preface ALTO In this manual you will find A fault in the equipment Technical information the essentials you need can have a number of causes. sheets are a supplement to know when repairing Chapter E Troubleshooting to the spare parts list until wet and dry cleaners of will help you here.
Page 4 Nilfisk Safety Issues. ALTO Observe national safety For your own safety. directives and regulations for the electrical engineer- trade, in particular: IEC 60335-2-69 EN 60335-2-69 DIN VDE 105 part 1: operation of electrical power installations. Repairs should only be DIN VDE 0701/0702: made by someone who repair, modification and has received proper...
Page 5: Technical Data
Nilfisk Technical Data. ALTO...
Page 6: Construction
Nilfisk Construction. ALTO Attix 30-01 Basic Attix 30-11 PC 1.Push and clean bottom. Attix 30-01 PC Attix 30-21 PC 2.Outlet socket. Attix 40-01 PC Attix 40-21 PC 3.On / Of switch Attix 50-01 PC Attix 50-21 PC Attix 50 Attix 30 Attix 40 Inox...
Page 7 Nilfisk Construction. ALTO Connection load for applications Air guide. Socket. Suction motor Electronic board. Air flap. Motor gasket.
Page 8 Nilfisk Construction. ALTO Electrical components. Attix 30-01 Basic - Attix 30-01 PC -Attix 40-01 PC - Attix 50-01 PC With soft start. Attix 30-21 PC - Attix 40-21 PC- Attix 50-21 PC With soft start and aut. start / stop for tools.
Page 9: Function
Nilfisk Function. ALTO Vacuuming FC-button Turbine Flap Fitting Filter By sealing the suction opening (1) a high negative pressure is generated inside the dirt tank when the motor is running which keeps this under ten- sion. Container By actuating the cleaning button (2) on the suction head, an air flap is opened in the carrier plate, which allows air to flow into the inside of the filter (3).
Page 10 Nilfisk Function. ALTO Technical description of automatic starter with speed control --Several functions are integrated on this printed circuit board. Soft start: - Main switch with positions In cleaners fitted with the electronics men- -“Man-0-Auto” tioned above, the motor is always started with - Radio interference suppression a soft start.
Page 11 Nilfisk Trouble shooting ALTO Checking electronics of automatic starter with speed control in “AUTO” mode. Motor Tool 302000765 Green Led. Motor Tool 302000764 Red- Led. 1. Isolate component from the electricity supply. 2. Remove cover. 3. Apply mains voltage. Set switch to position “I” at full power. 4.
Page 12: Trouble Shooting
Nilfisk Trouble shooting ALTO Checking automatic starter with speed control in “MAN” mode Green Led. Motor Tool 302000764 Red- Led. 1. Isolate component from the electricity supply. 2. Remove cover. 3. Apply mains voltage. Set switch to position “AUTO” at full power. 4.
Page 13 Nilfisk Trouble shooting ALTO Motor is not working. Check: -Mains voltage present ? -Power cord plugged in ? - Switch operated ? Power at the switch ?. Check mains plug and power cord, replace if necessary Check switch, replace if Power at the motor ? necessary.
Page 14 Nilfisk Trouble shooting ALTO Motor not working with switch set to 1. Check: - Mains voltage present ?. - Power cord plugged in ?. - Switch set to 1 ?. Check mains plug and Power at the switch. power cord, replace if necessary Check switch, Power at start unit ?.
Page 15 Nilfisk Trouble shooting ALTO Motor is not working with switch set to Auto. Check: - Mains voltage present ?. - Power cord plugged in ?. - Switch set to Auto?. - Switched-on load with at least 60W plugged into socket. Check mains plug and Power at the switch.
Page 16: Spare Parts
Nilfisk Spare parts ALTO Attix 30-40-50...
Page 17 Nilfisk Spare parts ALTO Attix 30-40-50.
Page 18 Nilfisk Spare parts ALTO Attix 30-40-50...
Page 19 Nilfisk Spare parts ALTO Attix 30. Attix 50.
Page 20 Nilfisk Spare parts ALTO Attix 40 Inox...
Page 21: Diagram
Nilfisk Diagram ALTO Attix Basic 30-01.
Page 22 Nilfisk Diagram ALTO Attix 30-01 PC / 30-11 PC / 30-21 PC. Attix 40-01 PC / 40-21 PC. Attix 50-01 PC / 50-21 PC.
Page 23: Tools
Nilfisk Tools ALTO Lamp holder E-27/60 W (Alto nr. 302000764) Lamp holder E-27/60 W (Alto nr. 302000765) 302000765 302000764...
