  • Page 1: Operating Instructions

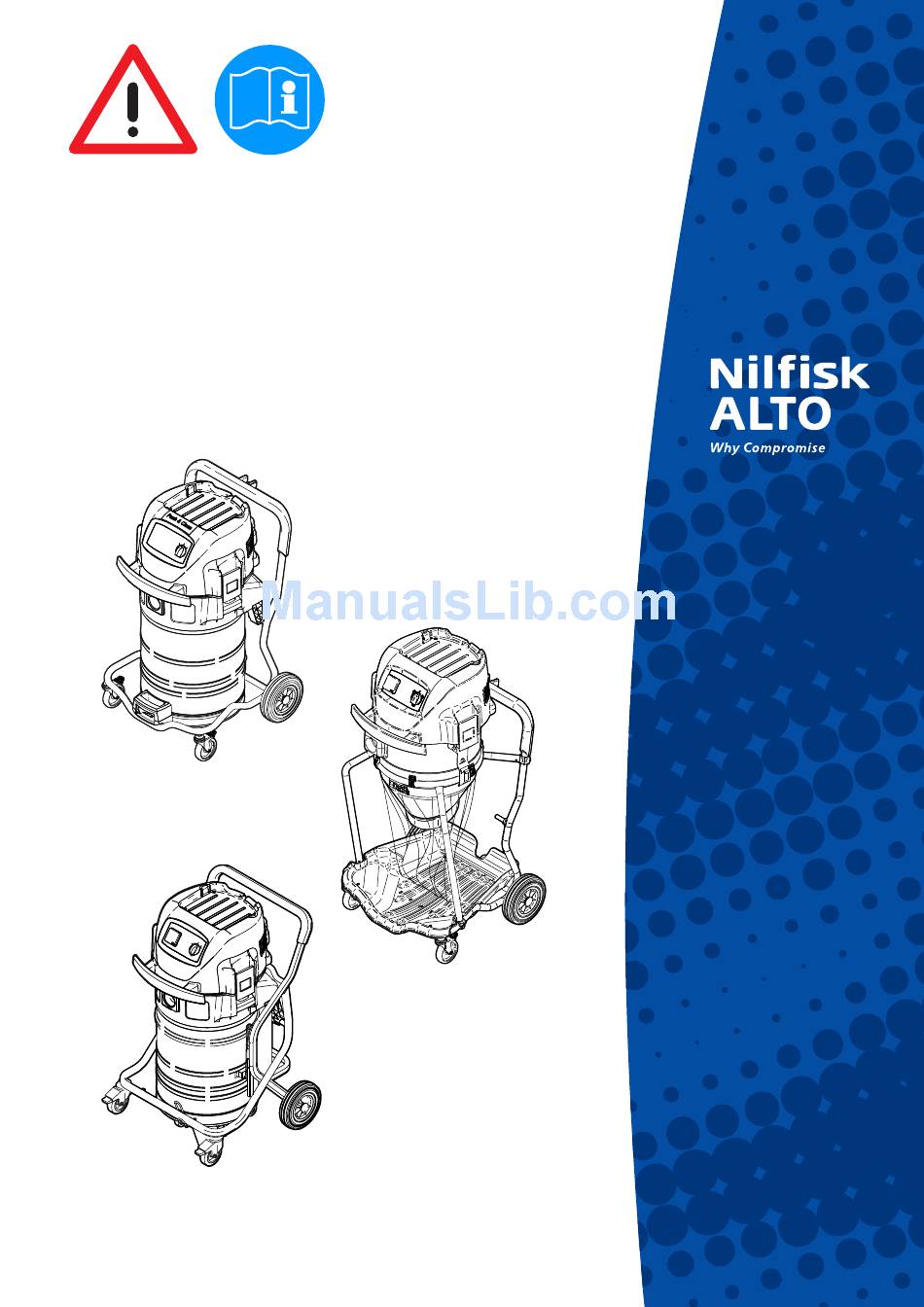

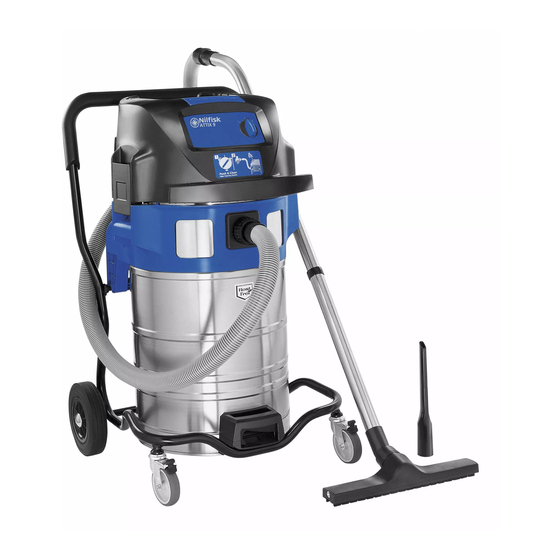

    ATTIX 961-01 ATTIX 963-21 ED XC ATTIX 965-21 SD XC Operating Instructions um_attix9-std_en_2008-05-15...

  • Page 3: Table Of Contents

    3.1.1 Taking accessories out of the packaging ......8 3.1.2 Attaching the suction pipe holder to the suction pipe ..8 3.1.3 Inserting the filter bag (ATTIX 961-01) .........9 3.1.4 Inserting the disposal bag (ATTIX 965-21 SD XC) .....10 3.1.5 Inserting the disposal bag (ATTIX 963-21 ED XC) .....11 Control / Operation Connections ...............12...

  • Page 4: Important Safety Instructions

    ATTIX 9 STD 1 Important safety instructions english Symbols used to mark Prior to using the appliance for the first time, be sure to read instructions this document through and keep it ready to hand. DANGER Danger that leads directly to serious or irreversible injuries, or even death.
  • Page 5 ATTIX 9 STD Transport Before transporting the dirt tank, close all the locks. english Do not tilt the cleaner if there is liquid in the dirt tank. Do use a crane hook to lift the cleaner. Storage Store the appliance in a dry place, protected from frost. Electrical connection It is recommended that the vacuum cleaner should be connected via a residual current circuit breaker.
  • Page 6 Regularly check whether the power cord is damaged or shows signs of ageing. Have the faulty mains connecting lead replaced by your Nilfisk-Alto service representative or a qualified electri- cian prior to using the appliance again. DANGER The upper section of the vacuum cleaner contains live com- ponents.
  • Page 7 Spare parts and accessories. The use of non-genuine spare parts and accessories can impair the safety of the appliance. Only use spare parts and accessories from Nilfisk-Alto. Use only the brushes supplied with the vacuum cleaner or specified in the operating manual.

  • Page 8: Description

    ATTIX 9 STD 2 Description english Operating elements Optional accessories / Option depending on model...

  • Page 9: Operating Panel

    16 Clamps and hinges for dirt tank 17 Operating knob for filter cleaning 18 Inlet for fresh air 19 Outlet for waste air 20 Disposal bag Operating panel ATTIX 961-01 ATTIX 963-21 ED XC, ATTIX 965-21 SD XC Optional accessories / Option depending on model...

  • Page 10: Assembling The Vacuum Cleaner

    ATTIX 9 STD 3 Before starting the cleaner english Assembling the Take vacuum cleaner and vacuum cleaner accessories out of the pack- 3.1.1 Taking accessories out aging. of the packaging The mains plug should not yet be inserted into a socket. Apply parking brakes (A) on both castors.

  • Page 11: Inserting The Filter Bag (Attix 961-01)

    ATTIX 9 STD 3.1.3 Inserting the filter bag The mains plug should not english (ATTIX 961-01) yet be inserted into a socket. Apply parking brakes (A) on both castors. Open the retaining clamps (B) and remove the upper section of the vacuum clean- Insert the filter bag (C) in the dirt tank.

  • Page 12: Inserting The Disposal Bag (Attix 965-21 Sd Xc)

    ATTIX 9 STD 3.1.4 Inserting the The mains plug should not english disposal bag yet be inserted into a socket. (ATTIX 965-21 SD XC) Apply parking brakes (A) on both castors. Swing the bar (B) upwards. Use the handle (C) to pull the dirt tank out of the vacuum cleaner.

  • Page 13: Inserting The Disposal Bag (Attix 963-21 Ed Xc)

    ATTIX 9 STD 3.1.5 Inserting the The mains plug should not english disposal bag yet be inserted into a socket. (ATTIX 963-21 ED XC) Apply parking brakes (A) on both castors. Open clamping ring (B). Insert disposal bag (C) into clamping ring.

  • Page 14: Control / Operation

    ATTIX 9 STD 4 Control / Operation english Connections Connect the suction hose. 4.1.1 Connecting the suction hose 4.1.2 Electrical connection 1. Ensure that the cleaner is switched off. 2. Insert the power cord into a The operating voltage shown on properly installed and fused the rating plate must correspond socket with earthing contact.

  • Page 15: Suction Power Control

    ATTIX 9 STD 4.2.3 Suction power control english Switch Function position The suction power control switch allows precise adaptation of the suction power for different cleaning tasks. 4.2.4 Auto-On/Off-Operation Switch off the vacuum clean- - "auto" switch position Switch off the power tool. Connect the power tool and The vacuum cleaner is switched the vacuum cleaner with a...

  • Page 16: Cleaning The Filter Element

    ATTIX 9 STD Cleaning the filter english element 4.3.1 Cleaning the filter element (Push&Clean System) Only for vacuum cleaning without a filter bag and without a cloth insert filter. If suction performance drops: Turn switch to position "II" (maximum suction power). Close the nozzles or suction hose opening with the palm of your hand.

  • Page 17: Techniques

    ATTIX 9 STD 5 Applications and techniques english Techniques If used correctly, additional accessories, suction nozzles and suc- tion hoses can enhance the cleaning action and reduce the cleaning effort. Effective cleaning is achieved if you follow just a few guidelines in combination with your own practical experience in special fields.

  • Page 18: Switching The Vacuum Cleaner Off And Storage

    ATTIX 9 STD 6 After finishing work english Switching the vacuum Switch off the cleaner and cleaner off and storage pull the mains plug out of the socket. Wind up the power cord and hang it on the handle (A). Begin winding up the cord at the cleaner end and not the plug end to prevent the pow-...

  • Page 19: Maintenance Plan

    ATTIX 9 STD 7 Maintenance english Maintenance plan ATTIX 961-01: After finishing work When required 7.2.1 Emptying dirt tank 7.2.3 Replacing the filter bag 7.2.6 Replacing filter element ATTIX 965-21 SD XC: After finishing work When required 7.2.2 Emptying dirt tank 7.2.4 Replacing the disposal bag...

  • Page 20: Maintenance Work

    ATTIX 9 STD Maintenance work Switch off the vacuum clean- english 7.2.1 Emptying the dirt tank er and pull the mains plug (ATTIX 961-01) out of the socket. Apply parking brakes both castors. After emptying the tank: clean the rim of the tank and the seals in the...

  • Page 21: Emptying The Dirt Tank (Attix 965-21 Sd Xc)

    ATTIX 9 STD 7.2.2 Emptying the dirt tank Switch off the vacuum clean- english (ATTIX 965-21 SD XC) er and pull the mains plug out of the socket. Apply parking brakes (A) on both castors. Removing the dirt tank: Swing the bar (B) upwards. Use the handle (C) to pull the dirt tank out of the vacuum cleaner.

  • Page 22: Replacing The Filter Bag(Attix 961-01)

    ATTIX 9 STD 7.2.3 Replacing the filter bag Switch off the vacuum clean- english (ATTIX 961-01) er and pull the mains plug out of the socket. Apply parking brakes (A) on both castors. If the filter bag has heavy dirt, re- move the bag by tilting the tank.

  • Page 23: Replacing The Disposal Bag (Attix 965-21 Sd Xc)

    ATTIX 9 STD 7.2.4 Replacing the disposal Switch off the vacuum clean- english er and pull the mains plug (ATTIX 965-21 SD XC) out of the socket. Apply parking brakes (A) on both castors. Removing the disposal bag: Swing the bar (B) upwards. Use the handle (C) to pull the dirt tank out of the vacuum cleaner.

  • Page 24: Replacing The Disposal Bag (Attix 963-21 Ed Xc)

    ATTIX 9 STD 7.2.5 Replacing the disposal Switch off the vacuum clean- english er and pull the mains plug (ATTIX 963-21 ED XC) out of the socket. Apply parking brakes (A) on both castors. Remove the disposal bag: Open clamping ring (B). Detach the disposal bag (C) from the storage container and seal it.

  • Page 25: Replacing Filter Element

    ATTIX 9 STD 7.2.6 Replacing filter element Switch off the vacuum clean- english er and pull the mains plug Never use the vacuum cleaner out of the socket. without a filter. Apply parking brakes (A) on both castors. Open the retaining clamps (B) and remove the upper section of the vacuum clean- Removing the filter element:...

  • Page 26: Troubleshooting

    > Seal between tank and upper • Replace seal. section of vacuum cleaner is faulty or missing. > Cleaning mechanism is • Contact Nilfisk-Alto Service. defective. ‡ No suction power during > Tank is full. • Switch off the cleaner. Empty wet cleaning the tank.

  • Page 27: Further Information

    ALTO Deutschland GmbH Guido-Oberdorfer-Straße 2-8 D-89287 Bellenberg Product: Vacuum cleaner for wet and dry operation Model: ATTIX 961-01 ATTIX 963-21 ED XC ATTIX 965-21 SD XC Description: 230 V~, 50 Hz The design of the appliance EC Machine Directive 98/37/EC...

  • Page 28: Technical Data

    Disposal bag (24 pcs.) ATTIX 963-21 ED XC 302003723 Filter element 302000751 Cloth insert filter ATTIX 961-01, ATTIX 965-21 SD XC 302002894 Alto-Foam-Stop (6 x 1 l) ATTIX 961-01, ATTIX 965-21 SD XC 8469 Optional accessories / Option depending on model...
  • Page 30 Web: http://www.nilfisk-alto.com E-mail: service@nilfisk-alto.dk Web: http://www.nilfisk-alto.dk JAPAN Nilfisk-Advance, Inc. SWEDEN 1-6-6 Kita-shinyokohama, Kouhoku-ku, ALTO Sverige AB Nilfisk-ALTO Food Division Yokohama, 223-0059 Member of Nilfisk-Advance Group Division of Nilfisk-Advance A/S Japan Aminogatan 18, Box 4029 Blytækkervej 2, Tel.: (+81) 45 548 2571 S-431 04 Mölndal...
