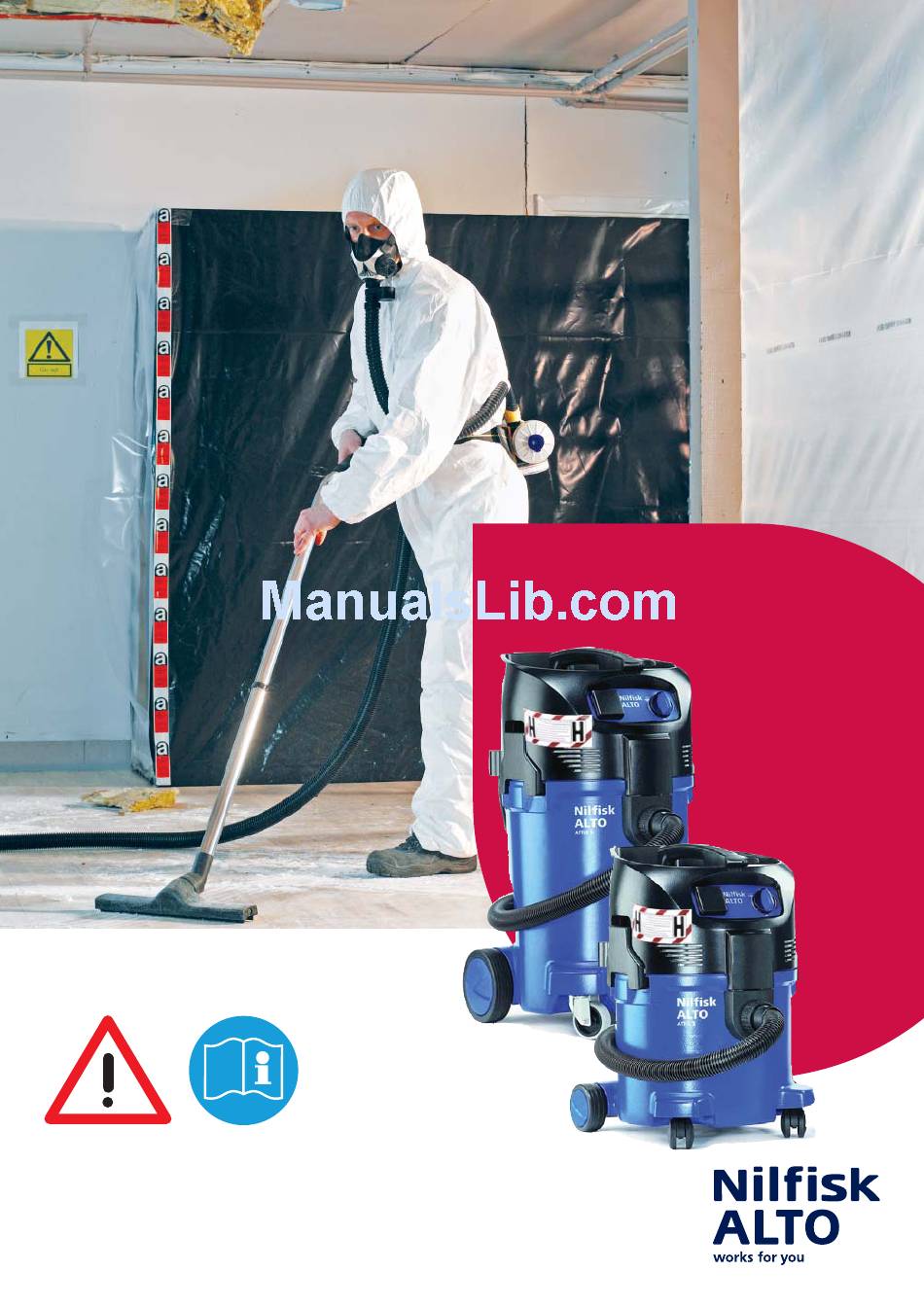

Operating instructions

107401206 B
ATTIX 30 H / M / PC / XC
ATTIX 50 H / M / PC / XC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATTIX 30 H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nilfisk-ALTO ATTIX 30 H

Summary of Contents for Nilfisk-ALTO ATTIX 30 H

  • Page 1: Operating Instructions

    Operating instructions ATTIX 30 H / M / PC / XC ATTIX 50 H / M / PC / XC 107401206 B...

  • Page 3: Table Of Contents

    ATTIX 30/50 H/M Contents Important safety instructions ....................2 Description ....................7 Before starting the cleaner ....................9 Control / Operation ..................13 Applications and methods ..................16 After using the cleaner ..................17 Maintenance ..................18 Troubleshooting ..................26 Further information ..................27 Optional accessories / Option depending on model Original Instruction...

  • Page 4: Important Safety Instructions

    ATTIX 30/50 H/M 1 Important safety instructions Symbols used to mark Prior to using the appliance for the first time, be sure to read instructions this document through and keep it ready to hand. DANGER Danger that leads directly to serious or irreversible injuries, or even death.
  • Page 5 ATTIX 30/50 H/M The safety label on the machine warns: This appliance contains dust hazardous to health. Emptying and maintenance operations, including removal of the dust collecting means, must only be carried out by authorised personnel wearing suitable personal protection. Operate only after the full filtration sys- tem has been fitted and checked.
  • Page 6 2. disposed of in a manner that complies with valid regulations for such waste removal. At least once a year, a Nilfisk-ALTO technician or an instructed per- son must perform a technical inspection including filters, air tight- ness and control mechanisms. According to AA.22.201.2 appliances in class H must have their filtration efficiency checked once a year.
  • Page 7 2. Regularly check whether the power cord is damaged or shows signs of ageing. 3. Have the faulty mains connecting lead replaced by your Nilfisk-Alto service representative or a qualified electri- cian prior to using the appliance again. DANGER The upper section of the vacuum cleaner contains live components.
  • Page 8 The use of non-genuine spare parts and accessories can impair the safety of the appliance. 1. Only use spare parts and accessories from Nilfisk-Alto. 2. Use only the brushes supplied with the vacuum cleaner or specified in the operating manual.

  • Page 9: Description

    ATTIX 30/50 H/M 2 Description Operating elements Handle with receptacle for electrical lead Fixing point for suction pipe holder Retaining clamp Castor Dirt tank Inlet fitting Applicance switch Hose diameter setting Appliance socket 10 Operating knob for filter cleaning ATTIX 30 ATTIX 50 Optional accessories / Option depending on model Original Instruction...
  • Page 10 ATTIX 30/50 H/M Operating panel ATTIX 30- /50-0M / PC/XC ATTIX 30- /50-0H / PC/XC auto ATTIX 30- /50-2M / PC/XC ATTIX 30- /50-2H / PC/XC Original Instruction...

  • Page 11: Before Starting The Cleaner

    ATTIX 30/50 H/M 3 Before starting the cleaner Assembling the 1. Take vacuum cleaner and vacuum cleaner accessories out of the pack- 3.1.1 Taking accessories out aging. of the packaging 2. The mains plug should not yet be inserted into a sock- 3.
  • Page 12 ATTIX 30/50 H/M Type of dust Filter bag/waste bag/filter element • Dusts with values Waste bag (5 pcs.) >0.1 mg/m (observe any addi- Order No. tional national regulations) ATTIX 30-XM: 302000804 • Wood dusts & concrete dusts ATTIX 50-XM: 302000728 •...
  • Page 13 ATTIX 30/50 H/M 7. Attach the upper section of the vacuum cleaner. 8. Close the retaining clamps (A). Ensure that the retain- ing clamps fit properly. Inserting the filter bag 1. The mains plug should not "M" yet be inserted into a socket. 2.
  • Page 14 ATTIX 30/50 H/M 5. Attach the upper section of the vacuum cleaner. 6. Close the retaining clamps (A ). Ensure that the retain- ing clamps fit properly. Original Instruction...

  • Page 15: Control / Operation

    ATTIX 30/50 H/M 4 Control / Operation Connections 1. Connect the suction hose. 4.1.1 Connecting the suction hose 4.1.2 Electrical connection 1. Ensure that the cleaner is switched off. The operating voltage shown on 2. Insert the power cord into a the rating plate must corres pond properly installed and fused to the voltage of the mains power...
  • Page 16 ATTIX 30/50 H/M 4.2.3 Suction power control Switch Function position The suction auto power control switch allows precise adaptation of the suction power for different cleaning tasks. 4.2.4 Auto-On/Off-Operation - 1. Switch off the vacuum clean- "auto" switch position 2. Switch off the power tool. The vacuum cleaner is switched on and off by the power tool con- nected.
  • Page 17 ATTIX 30/50 H/M Cleaning the filter element 4.3.1 Cleaning the filter element " Push&Clean Filter Cleaning System System " (ATTIX 30- / 50-xx PC) Only for vacuum cleaning without a filter bag and without a cloth insert filter. If suction performance drops: cleaning three times.
  • Page 18 The use of a seperate filter element or filter screen is recommend- If foam appears, stop work immediately and empty the tank. To reduce the amount of foam, use foam killer Nilfisk-ALTO Foam Stop (see section "Accessories" for order number).

  • Page 19: After Finishing Work

    ATTIX 30/50 H/M 6 After finishing work Switching the vacuum 1. After picking up hazardous cleaner off and storage dust, vacuum clean the out- side of the cleaner. 2. Switch off the cleaner and pull the mains plug out of the socket.

  • Page 20: Maintenance

    ATTIX 30/50 H/M 7 Maintenance Maintenance plan After finishing work When required  7.2.1 Emptying dirt tank  7.2.2 Replacing the safety filter bag "H"  7.2.3 Replacing the filter bag "M"  7.2.4 Replacing the disposal bag "M"  7.2.5 Replacing filter element "H"...
  • Page 21 ATTIX 30/50 H/M 7.2.2 Replacing the safety 1. Open the retaining clamps filter bag "H" (A) and remove the up- per section of the vacuum cleaner. During the following work, ensure that dust is not unnecessarily spread around, Wear a P2 breath- ing mask.
  • Page 22 ATTIX 30/50 H/M 7.2.3 Replacing the filter bag 1. Switch off the vacuum clean- "M" er and pull the mains plug out of the socket. 3. Open the retaining clamps (A) and remove the upper section of the vacuum clean- During the following work, ensure that dust is not unnecessarily spread around, Wear a P2 breath-...
  • Page 23 ATTIX 30/50 H/M 7.2.4 Replacing the disposal 1. Switch vacuum bag "M" cleaner and pull the mains plug out of the socket. 2. Open retain- ing clamps (A) and re- move the upper section vacuum cleaner. During the following work, ensure that dust is not unnecessarily spread around, Wear a P2 breath- ing mask.
  • Page 24 ATTIX 30/50 H/M 7.2.5 Replacing filter element 1. Switch vacuum "H" (Push & Clean cleaner and pull the mains System) plug out of the socket. 2. Open the retaining clamps (A) and remove the up- per section of the vacuum cleaner.
  • Page 25 ATTIX 30/50 H/M 7.2.6 Replacing filter element 1. Switch off the vacuum clean- "H" (Xtreme Clean er and pull the mains plug System) out of the socket. 2. Open the retaining clamps (A) and remove the upper section of the vacuum clean- During the following work, ensure that dust is not unnecessarily spread around, Wear a P2 breath-...
  • Page 26 ATTIX 30/50 H/M 11. Attach the upper section of the vacuum cleaner. 12. Close the retaining clamps (A). Ensure that the retaining clamps fit properly. 7.2.7 Replacing filter element 1. Switch vacuum "M" (Push & Clean cleaner and pull the mains System) plug out of the socket.
  • Page 27 ATTIX 30/50 H/M 7.2.8 Replacing filter element 1. Switch vacuum "M" (XtremeClean cleaner and pull the mains System) plug out of the socket. 2. Open the retaining clamps (A) and remove the up- per section of the vacuum cleaner. During the following work, ensure that dust is not unnecessarily spread around, Wear a P2 breath- ing mask.

  • Page 28: Troubleshooting

    • Switch off the vacuum cleaner has tripped. and allow it to cool for approx. 5 minutes. If the cleaner cannot be started again, contact the Nilfisk-Alto service department. > Motor is faulty. • Have motor changed by Nilfisk-Alto Service.

  • Page 29: Further Information

    ATTIX 30/50 H/M 9 Further information Recycling the cleaner Make the old cleaner unusable immediately. 1. Unplug the cleaner. 2. Cut the power cord. 3. Do not discard of electrical appliances with household waste. As specified in European Directive 2002/96/EC on old elec- trical and electronic appliances, used electrical goods must be collected separately and recycled ecologically.
  • Page 30 ATTIX 30/50 H/M EC declaration of conformity EU Declaration of Conformity Vacuum cleaner for wet and dry operation Product: ATTIX 30-/50-/0H/0M/PC/XC Type: ATTIX 30-/50-/2H/2M/PC/XC EC Machine Directive 2006/42/EC. The design of the unit corre sponds to the following EC EMC Directive 2004/108/EC pertinent regulations: EC - RoHS Directive 2011/65/EC EN 60335-1: 2012...

  • Page 31: Technical Data

    Zylindrical H-filter element PC 302000658 Zylindrical M-filter element PC 302000490 Flat H-filter element XC (2 pcs.) 107400449 Flat M-filter element XC (2 pcs.) 302002842 Motor Cooling air filter 302003721 Blowing adapter 302003717 Cloth insert filter ATTIX 30,50 302000525 Nilfisk-Alto-Foam-Stop (6x1l) 8469 Original Instruction...
  • Page 32 HOLLAND RUSSIA Nilfi sk-Advance B.V. Nilfi sk-Advance LLC Versterkerstraat 5 Vyatskaya str. 27, bld. 7, 1st fl oor 1322 AN ALMERE Moscow, 127015 www.nilfi sk.nl www.nilfi sk.ru SOUTH AFRICA HONG KONG WAP South Africa (Pty) Ltd Nilfi sk-Advance Ltd. 12 Newton Street 2001 HK Worsted Mills Ind’l Bldg.

This manual is also suitable for:

Attix 30 xcAttix 30 mAttix 30 pcAttix 50 pcAttix 50 xcAttix 50 h
