© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2008
Installation Instructions For
With Plexus Control and ZR Technology
This manual must be used in conjunction with document IN1173.
The Wood and Mutlifuel Chimney and Installation Guide.
Since April 2002 only Registered Competent Engineers may install solid fuel fired
appliances without involving the Local Authority Building Control Department. For
more details contact HETAS.
Euroheat would suggest only Registered Competent Engineers install Euroheat
appliances.
If the installer is not a registered Competent Engineer we would advise that
property owners insurance company is contacted to confirm there insurance is not
effected.
This Manual Must Always Be Available To The Stove Operator
IN1115 Edition G3
HARMONY
H13, H23, H33, H43
STANFORD
S13, S23, S33, S43
SP23, SP33, SP43
NESTOR MARTIN
R23, R33
RH33, FH33

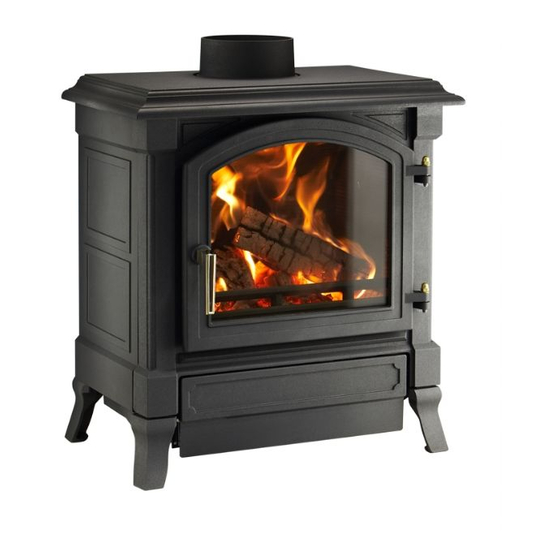

Wood and Multifuel Stoves
Part No.
Model Name
Serial Number
1
E & OE
Instructions Part number IN1115 Edition G3
