RV-5 Specifications
Audio Inputs and Outputs
HDMI (Version 1.1) 2 connectors, HDMI Type A, 19-pin
Three component video, RCA connectors
Analog Video Three component video, RCA connectors
Four S-Video connectors
Four composite video, RCA connectors
Digital Audio Four S/PDIF coaxial (RCA) and four S/PDIF optical (Toslink)
connectors Coaxial & optical input connectors conform to
IEC-958, S/PDIF standards One USB mini-B connector
Analog Audio Eight-channel RCA connectors
Six Stereo RCA connectors
One microphone, 3.5mm mono mini plug
1 DOCK 30-pin connector (for optional docking station)
1 FM antenna (included)
1 AM antenna (included)
Input sensitivity = max input level 2 Vrms
Control One RS-232, 9-pin, D-sub connector
One IR front panel lens
One 3.5mm IR IN jack:
Input Voltage: 3V - 15V
Input Current: 10mA
Frequency: 20Hz - 1KHz
accepts either stereo plug (Tip/Ring/Sleeve) or mono plug
(Tip/Sleeve)
HDMI PERFORMANCE
HDMI Input Video: 480i/p, 576i/p, 720p, or 1080i
Audio: Dolby Digital, DTS, & PCM (32, 44.1, 48, 88.2, 96 kHz,
176.4 kHz, and 192 kHz)
HDMI Output Video: 480i/p, 576i/p, 720p, or 1080i
Audio: Dolby Digital, DTS, & PCM (32, 44.1, 48, 88.2, 96 kHz,
176.4 kHz. and 192 kHz)
OUTPUTS
HDMI (Version 1.1) One connector, HDMI Type A, 19-pin
Analog Video One component video, RCA connector
One S-Video connector
One composite video, RCA connector
Analog Audio 7-channel amplified, binding posts
one 8-channel preamplifier plus additional subwoofer,
RCA connectors
Bare wire: Up to 10 gauge
Control Two triggers - one power on/off & one programmable
3.5mm mono mini plugs
12 VDC, 300mA maximum output draw
S-VIDEO & COMPOSITE VIDEO PERFORMANCE
Compatibility NTSC, PAL, and SECAM
A/D converter 12-bit, 110 MHz
D/A converter 12-bit, 74.25 MHz
Input Level / 1V peak-to-peak / 75 W
Impedance
Output Level / Impedance 1V peak-to-peak / 75 W
Frequency Response Composite: 10 Hz to 8 MHz, -3 dB
S-Video: 10 Hz to 8 MHz, -3 dB
Component: 10 Hz to 100 MHz, -3 dB
Signal-to-Noise Ratio >65 dB
Differential Gain <0.2%
Differential Phase <0.5 degrees
Gain +/- 0.15 dB
COMPONENT VIDEO PERFORMANCE
Compatibility 3-channel (Y, Pr, Pb), format-independent
Impedance 75 W
Insertion Loss <3 dB
Bandwidth >100 MHz
AMPLIFIER OUTPUTS
Continuous Output 85 W per channel, 8 W, all channels driven, 20 Hz to 20 kHz
Frequency Response 10 Hz to 40 kHz, +0, -2 dB
THD + Noise <0.05%, 20 Hz to 20 kHz, 1 W
<0.07%, 20 Hz to 20 kHz, 85 W
IM Distortion <0.04%
Slew Rate 17 V/us (Condition: output 40 Vpp, 1k sine wave, rising time
from 10% to 90%)
Signal-to-Noise Ratio 95 dB typical, 22 kHz bandwidth
min 95 dBA, 90 dBA typical
PREAMPLIFIER OUTPUTS
Frequency Response 10 Hz to 40 kHz, +0, -2 dB
THD + Noise <0.05%, 20 Hz to 20 kHz
Dynamic Range 100 dB typical, 22 kHz bandwidth
Signal-to-Noise Ratio 100 dB typical, 22 kHz bandwidth
min 100 dBA, 103 dBA typical
Output Level 200 mV typical, 5 V maximum

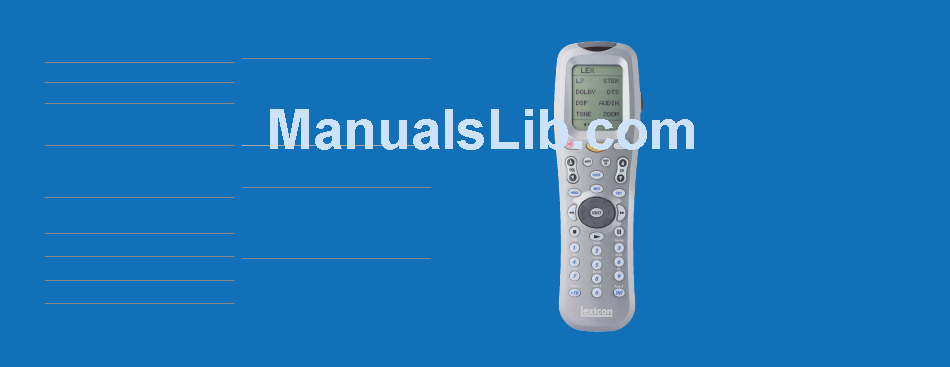

The remote control, included with the RV-5, is a full-featured universal controller, designed
to run your whole home theater system. The remote control contains an extensive library
of pre-programmed infra-red codes so it can replace virtually any remote control. This
powerful remote also has the ability to learn commands from other remote controls, as
well as a suite of built-in customizable features. Coupled with the RF receiver option,
you'll have the power to control your home theater system – from virtually anywhere
in your home. This is particularly useful in installations where the RV-5 is hidden out of
sight or for users who already have a control system for the home theater and want to
use the RV-5 remote control from another room.
The RV-5 provides several other useful features including a RS-232 port for use with
bi-directional control systems as well as an IR input jack for IR based control systems. And
to keep pace with today's rapidly-changing technology, the RV-5 has two new features
never-before offered in a Lexicon product. You can now listen to the music on your PC
with all of the power and performance of the RV-5, using a USB connection. And with the
optional Dock accessory, you can enter a new world of listening enjoyment through the
combination of the storage capacity and playback flexibility of an iPod with the sonic
power of the RV-5. The connected iPod can even be controlled seamlessly from the front
panel, remote control or RS-232 port. Since the RV-5 front panel and on-screen displays
keep you informed of what is happening, you don't even need to see the iPod
to control it.
A flexible menu structure, audio and video processing, automated calibration and EQ,
in-depth customization, multimedia playback features...the RV-5 represents a new age
of audio and video processing equipment from Lexicon. We invite you to experience the
RV-5 for yourself.
