Lexicon REFLEX - REV User Manual page 9

Switching from MIDI OUT to THRU
When shipped, Reflex is configured for
MIDI OUT operation. You can easily
reconfigure the unit for MIDI THRU operation
with the following procedure.
1. Disconnect power.
2. Remove the two top and bottom cover
screws which are closest to the rear panel
MIDI connectors.
3. Lay the unit upside down and remove the
rack ear.
4. Lift the jumper off of its pins and reposition
it according to the functionality you want.
5. Replace the rack ear and the cover screws.
6. Reconnect power.
U
R
T H
/
U T
O
R
P E
U M
R
J U
H
/ T
U T
D I
I D I
O
M I
S S M
C E
T O C
A
R
E A
K
C
A
V E
R
O
M
R E
6
OUT

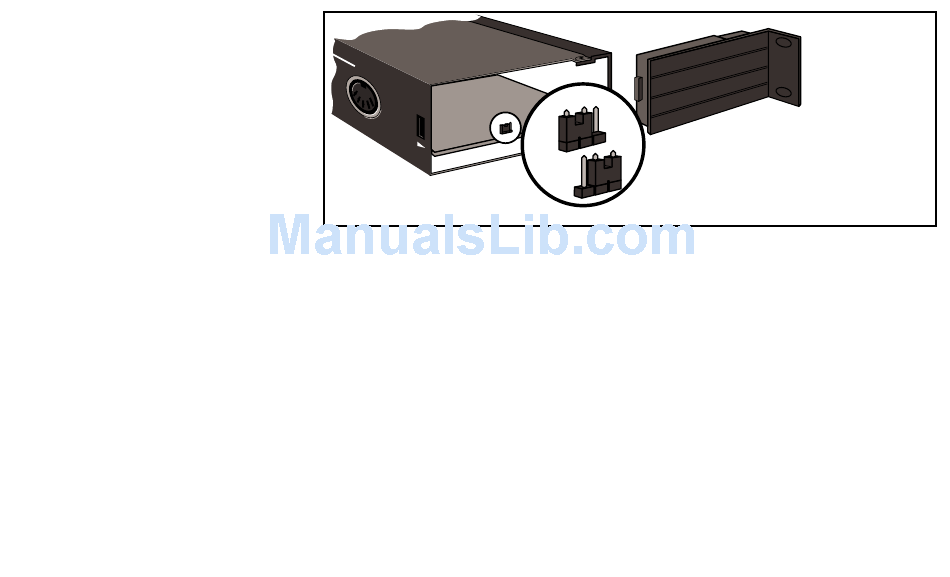

An internal jumper lets you
switch between MIDI OUT and
THRU
MIDI THRU functionality.
