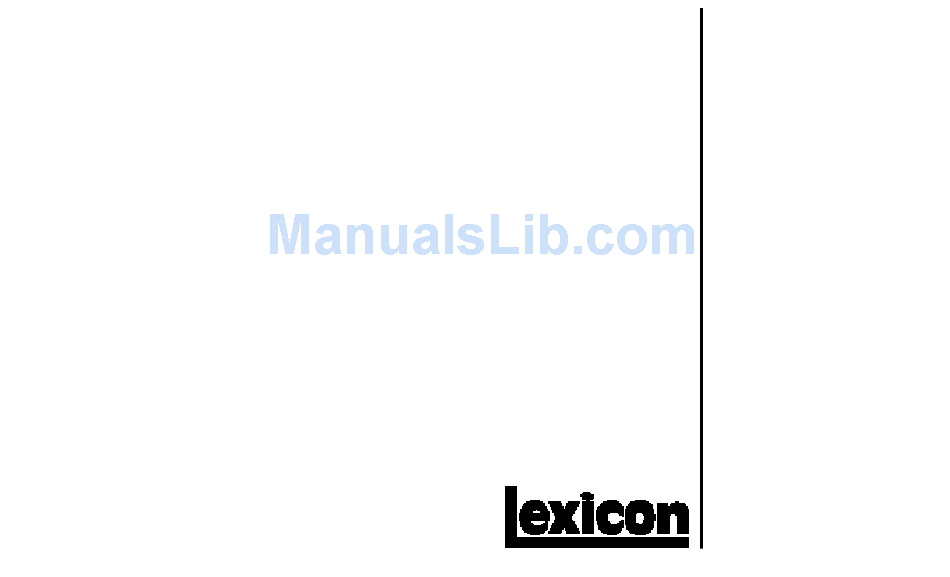

  • Page 1 LDD-1 AC-3/RF Demodulator User Guide...
  • Page 2 All Rights Reserved. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Lexicon Inc. • 3 Oak Park • Bedford MA 01730-1441 Telephone 617-280-0300 • Fax 617-280-0490 This triangle, which appears on your component, alerts you to important operating and maintenance instruc- tions in this accompanying litera- ture.
  • Page 3 AC-3/RF Demodulator User Guide Introduction Congratulations on your purchase of the Lexicon LDD-1. The LDD-1 is designed to interface between a laser disc player (with an AC-3/RF output), and any Dolby Digital decoder which accepts a standard AC-3 signal (like our DC-1). Because “AC-3 ready” laser disc players use a separate Radio Frequency (RF) modulated output to carry the Dolby Digital information, special considerations must be made.

  • Page 4: Front Panel

    NOTE: When power is off, the LDD-1 automatically outputs the COAXial digital input. POWER This LED will light whenever power to the unit is supplied and enabled. LD OPTIMIZATION 3-position switch which minimizes signal errors, pro- viding optimal timing for specific brands of laser disc players.

  • Page 5: Rear Panel

    Connections between the LDD-1 and associated equipment should be made with all units UNPLUGGED! POWER Connect the AC adapter here. Use only the supplied Lexicon MSA AC adapter. INPUT Connect a 5-pin DIN cord (not supplied) from this input to the DC-1 PWR CTL Output.

  • Page 7: Maintenance

    Recommended: Connect a 5-pin DIN cord (not supplied) between the LDD-1 PWR CTL input and the DC-1 PWR CTL output. This allows the LDD-1 to power on and off with the DC-1. If this connection is not made, the LDD-1 will turn on whenever its AC adapter is supplied power.

  • Page 8: Specifications

    General Dimensions: 17.0"X x 1.75"H x 4"D Weight: 2.4 lbs net; 4.4 lbs shipping Power Requirements: 120VAC, 60Hz or 230VAC, 50Hz. Use Lexicon MSA AC Power Adapter. Rack mount adapters are available through your Lexicon dealer. Lexicon Inc. 3 Oak Park...
