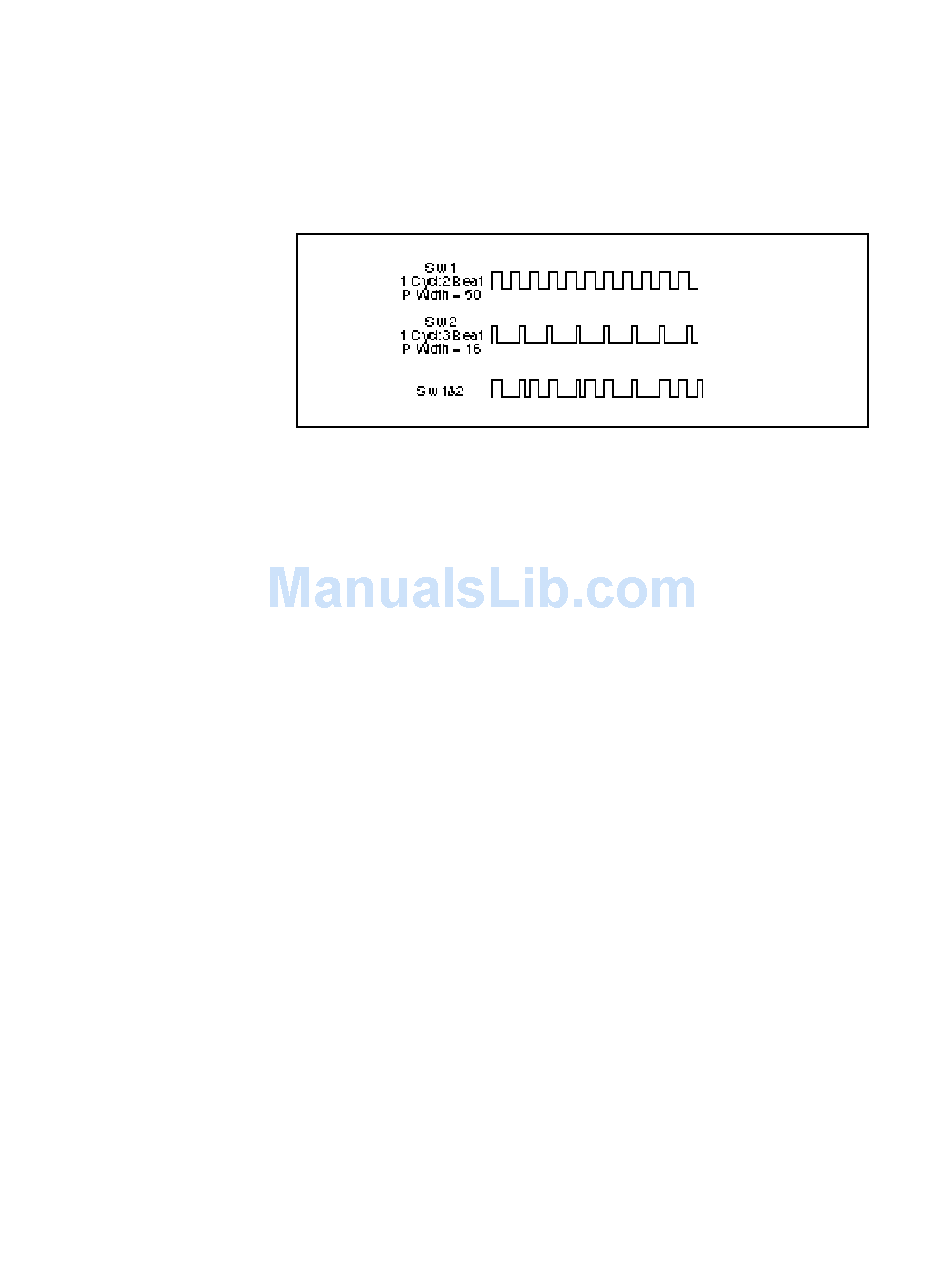

A special, composite output of these switches, called Sw 1&2 is available as a
Modulation cont'd.
patch source. The value of Sw 1&2 alternates between the output of Sw 1 and
the output of Sw 2. The alternation occurs on the transition from on to off. Note
that both Sw 1 and Sw 2 must be active for the alternation to occur.

Panning

Parameters in the Panning row provide control of panning of individual effects
voices, as well as a master panning parameter for all voices.
Master
The Pan Master provides simultaneous control over the panning of all voices in
the effect. The range of the Pan Master is 50L (full left) through L1, C (Center),
1R through 50R (full right) for a total of 101 positions. The Master Pan is additive
to the individual voice panners such that, if a voice is set to L10, and the Master
is set to 20R, the voice will be at 10R.
Voices
Individual pan controls are provided to position the output of each voice. The
range of each voice is 50L (full left) through 1L, C (Center), 1R through 50 R(full
right) for a total of 101 positions.
