Two-way Connections

Two way communication allows you to access and view parameters stored
in the LXP-15's 128 internal registers. You can connect one or two LXP-15s

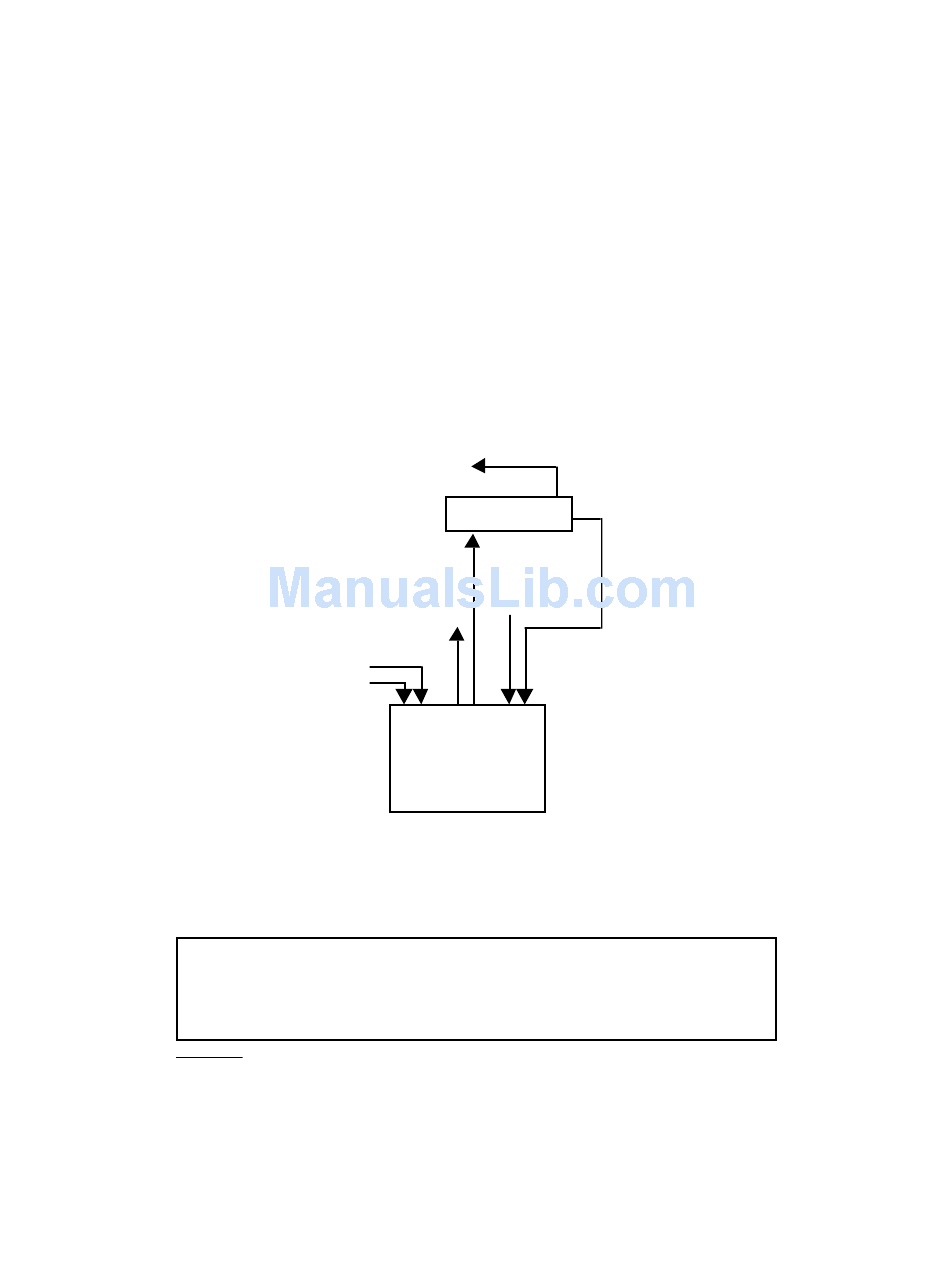

to the MRC for two-way communication. Two MIDI cables are required for
each LXP-15. The LXP-15 MIDI OUT and MIDI IN can be connected to the
MRC IN1 and OUT1 or MRC IN2 and OUT2.

Merging and Two-way Communication

can be
merged
to OUT1
When connected for two-way communication, the merging function for the
input port connected to the LXP-15 must be set to "OFF" (If it is set to "ON,"
communication will not be possible and the MRC will display "SYNCH
TIMEOUT" )
NOTE: The MRC can't merge MIDI clock with an LXP device connected
for two way communication. If you want to use Tempo patches and an
LXP, you must set up one-way communication or use an external merger.
(See Advanced Two-way Communications. )
3-6
Lexicon MRC V4.0/ MIDI Remote Controller
Additional
MIDI devices
THRU
LXP-15
MIDI Sources
(can be merged
Additional
to OUT1)
MIDI devices
2 1 2 1 2 1
EXT OUT IN
MRC
