Advanced Two-Way Configurations - Lexicon MRC V4.0 Owner's Manual Addendum

Owner's Manual Addendum

Advanced Two-way Configurations

Computer
Patcher
Keyboard
2 1 2 1
OUT
EXT
MRC

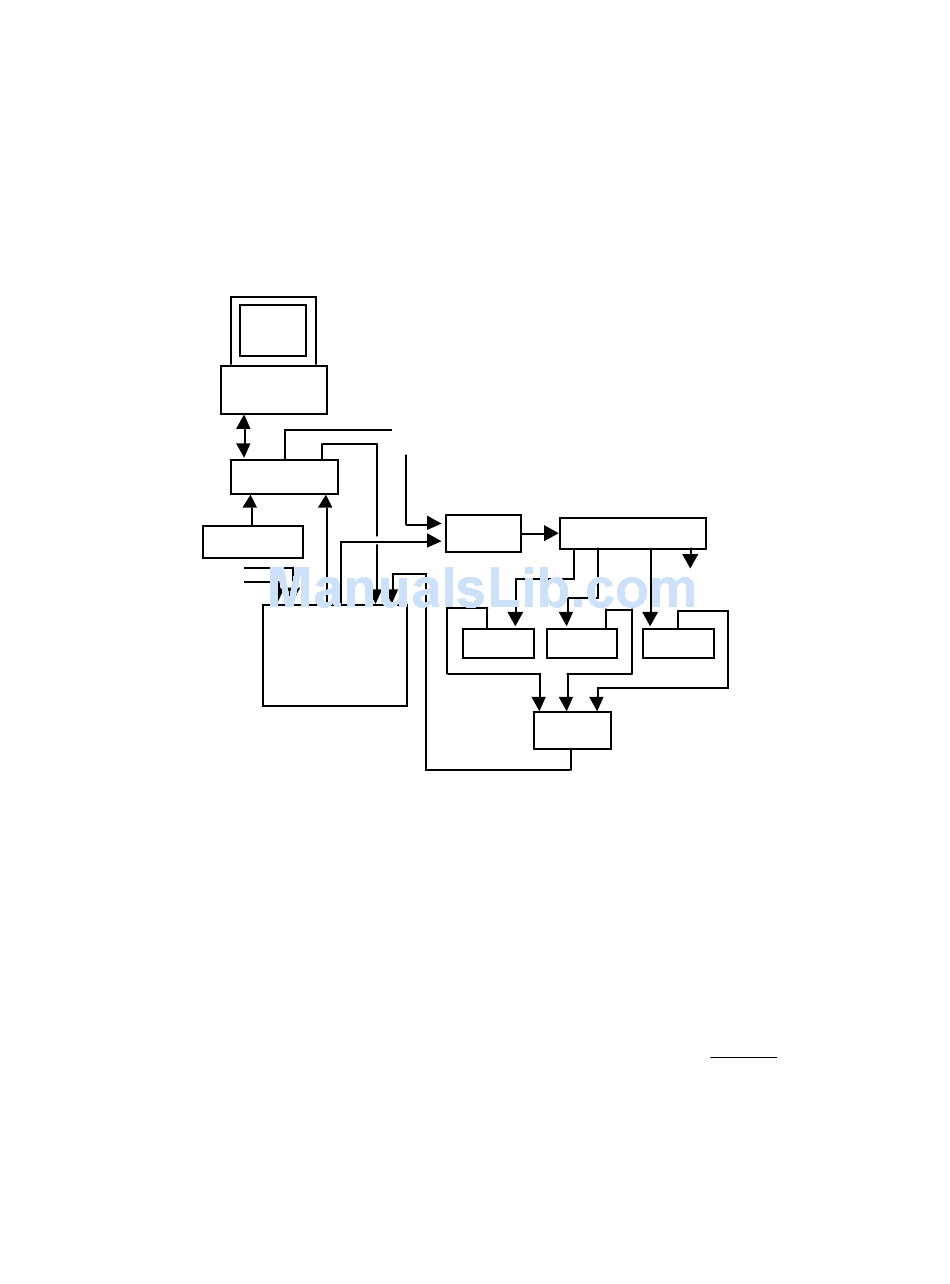

Two-way communication requires a separate pair of MIDI IN/OUT ports for
each LXP being controlled. The MRC has two sets of MIDI IN/OUT ports, so
you can control two LXPs in two-way at once using two-way communication.
Control of more than two LXPs with two-way communication is possible, but
requires a MIDI merging device that can handle System Exclusive data. In
MIDI systems with additional hardware such as mergers, THRU boxes, or
patching devices, the MRC's two-way functions can be expanded to allow
control of more than two LXPs and/or merging of MIDI clock for Tempo
patching while maintaining two-way communication.
Controlling the LXP Series of Multi-Effects Processors
MIDI
Clock
Merge
2 1
IN
LXP-15
Merge
THRU
Additional
MIDI devices
LXP-5 LXP-1
2-7
