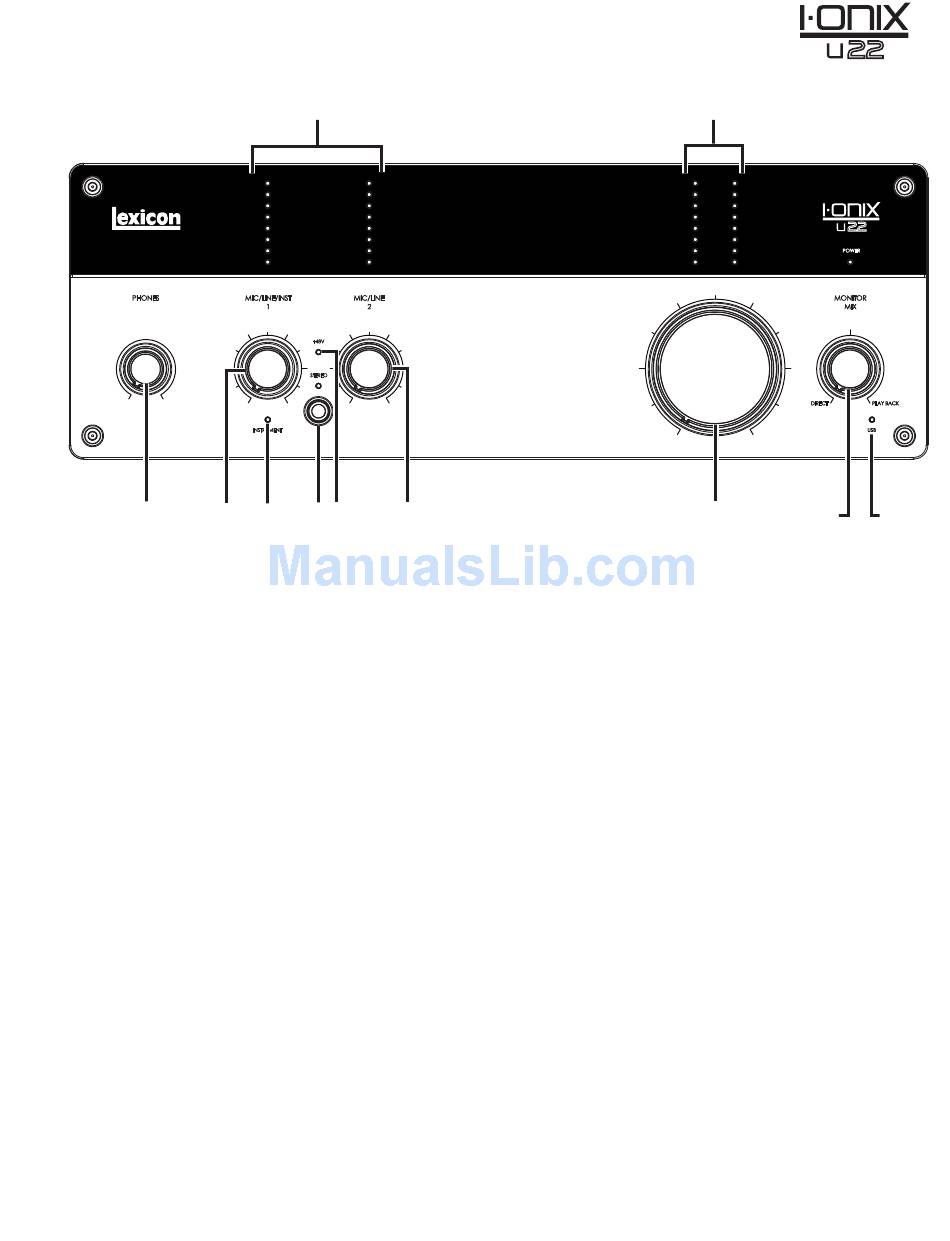

front Panel

3 4 5
1. InPut LeveL LeDS
These indicate signal level for each input by showing the remaining head-
room before clipping. Their values are:
Red Clipping
Yellow –3dB
Green –6dB
Green –9dB
Green –12dB
Green –18dB
Green –24dB
Green –30dB
2. OutPut LeveL LeDS
These indicate signal level for each output by showing the remaining head-
room before clipping. Their values are:
Red Clipping
Yellow –3dB
Green –6dB
Green –9dB
Green –12dB
Green –18dB
Green –24dB
Green –30dB
3. PhOneS LeveL KnOB
Adjust headphone output signal level here.
4. MIc/LIne/InSt 1 GaIn KnOB
Adjusts the input gain level for Mic/Line 1 or Instrument 1.
1
6 7 8
2
9 10 11
3
