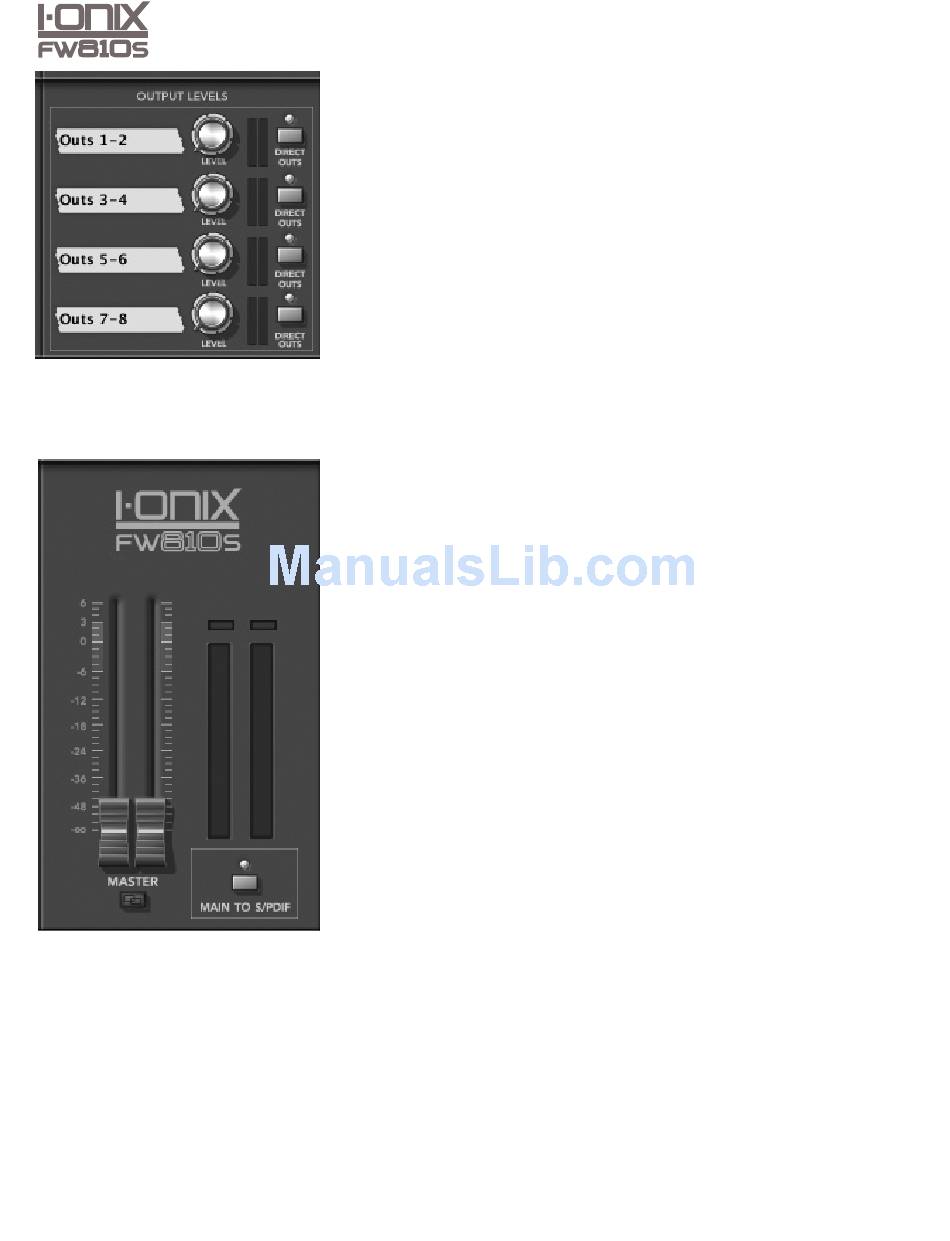

The Mixer - Balanced Out (Aux Out) Controls

These controls correlate to Balanced Outs 1-8 (located on the back panel).
Outs 1-2 control Balanced Outs 1 and 2, Outs 3-4 control Balanced outs 3
and 4, and so on.
Labels (Scribble Strips)
Double-click to assign a name to an aux pair.
Level knobs
Adjusts the aux pair master signal level.
Meters
Indicate aux pair signal level.
Direct Outs buttons
Enable the DAW playback streams to go directly out the corresponding out-
puts. For example, when Direct Out is on for Outs 1-2, only playback 1-2
will be heard on Outs 1-2.
The Mixer – Master Faders
Meters
Indicate post-fader signal level.
Master faders
Attenuate or add gain to the main signal.
Stereo button
Links the two master faders together so their settings are always the same.
Main to S/PDIF button
Controls what signal is streamed out the SPDIF jack. When lit (on), the
main mix is mirrored on the SPDIF jack. When not lit (off ), the DAW
SPDIF Out stream is sent to the SPDIF jack.
