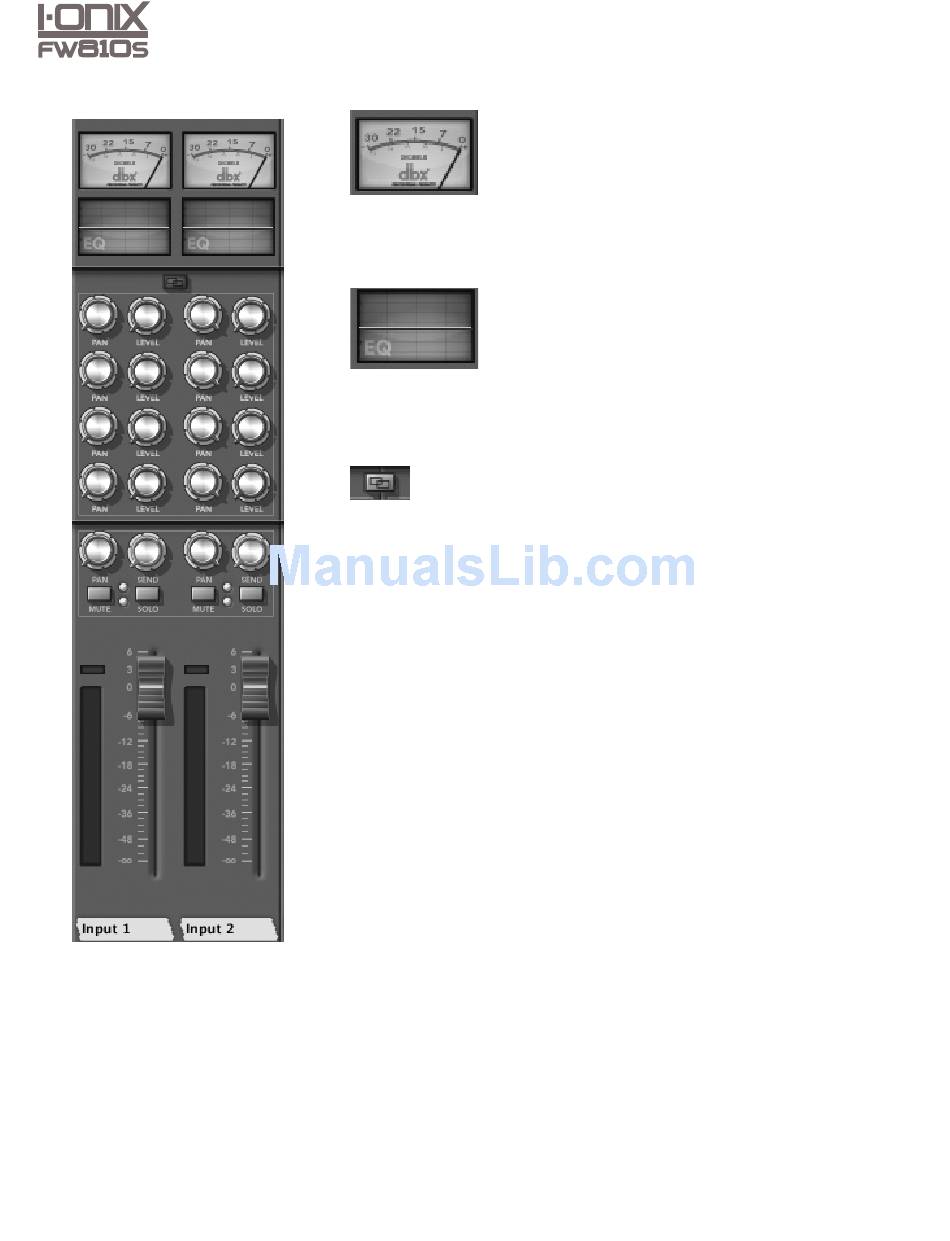

The Mixer – Input 1-8 Strips
Gain Reduction Meter/Button
Indicates the amount of gain reduction being applied. Click to open or close
the Dynamics Control Panel (described on page 13).
EQ Indicator/Button
Shows the EQ line for the corresponding channel. Click to open or close the
EQ (described on page 16).
Stereo button
Links two adjacent channels together in stereo. When linked, each strip's
controls function as a pair; when you turn one strip's Level knob, for exam-
ple, the other strip's Level knob automatically moves as well.
Pan
Positions the audio in the stereo field. The top four Pan knobs control their
corresponding Aux pairs. The bottom Pan knob controls the Main outs.
Level
Adjusts the loudness of the signal for stereo aux bus outs 1&2, 3&4, 5&6,
and 7&8.
Send
Sends the channel's signal to the monitor reverb (described on page 11).
Mute button
Silences the signal in the main mix for the selected channel (the aux and
reverb levels are unaffected by this mute button).
Solo button
Silences all channels except this one. Note that multiple channels can be
"soloed" simultaneously.
Pre-Fader Input Level Meter
Indicates the signal level for this channel.
Fader
Attenuates or adds gain to the signal in the main mix.
Label (Scribble Strip)
Double-click to enter a name for the channel here.
