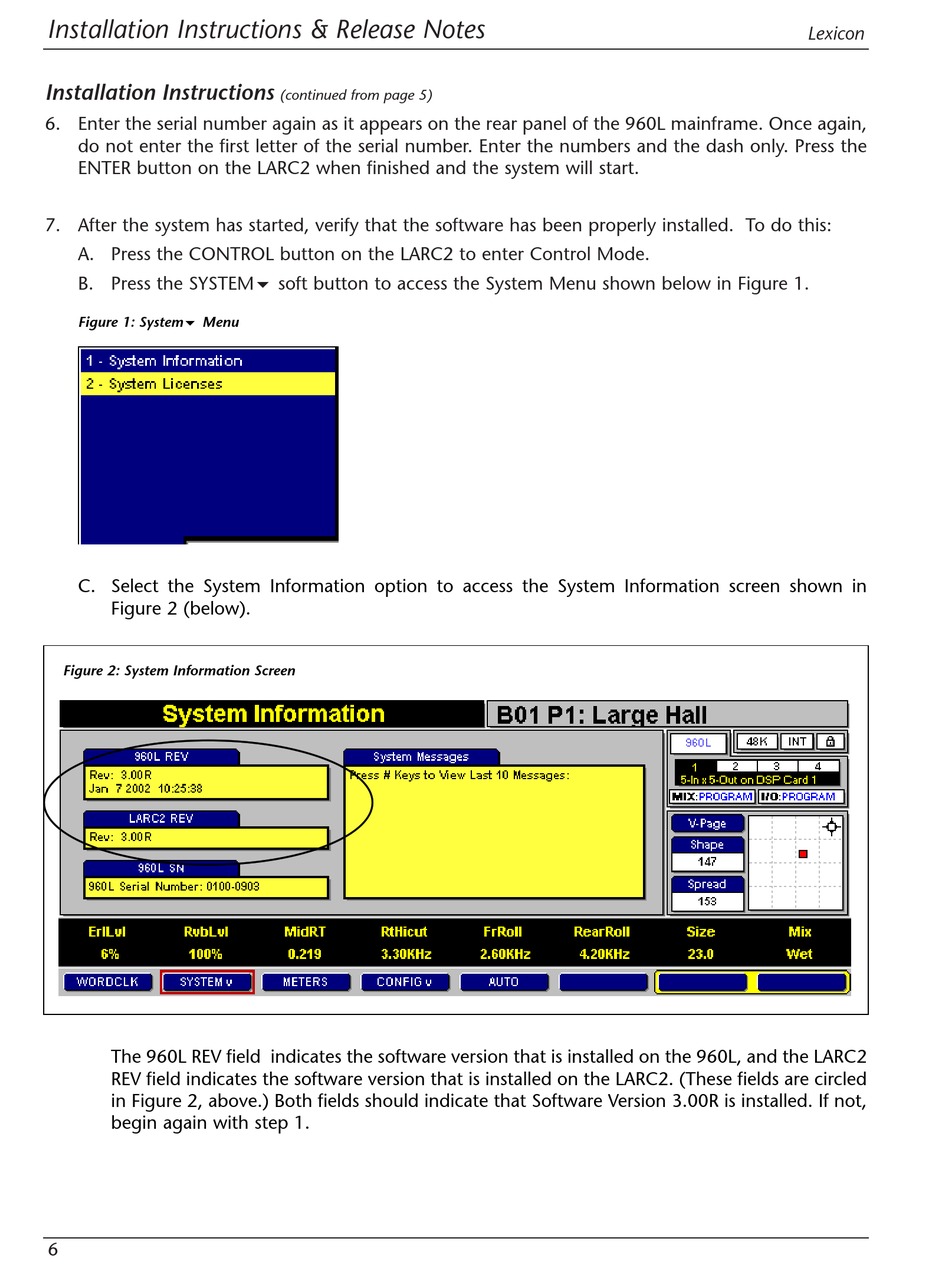

Lexicon 960L V3.0 - INSTALLATION AND RELEASE NOTES REV 4 Installation Instructions Manual page 6

Installation Instructions & Release Notes
Installation Instructions
6. Enter the serial number again as it appears on the rear panel of the 960L mainframe. Once again,
do not enter the first letter of the serial number. Enter the numbers and the dash only. Press the
ENTER button on the LARC2 when finished and the system will start.
7. After the system has started, verify that the software has been properly installed. To do this:
A. Press the CONTROL button on the LARC2 to enter Control Mode.
B. Press the SYSTEM! soft button to access the System Menu shown below in Figure 1.
Figure 1: System! Menu
C. Select the System Information option to access the System Information screen shown in
Figure 2 (below).
Figure 2: System Information Screen
The 960L REV field indicates the software version that is installed on the 960L, and the LARC2
REV field indicates the software version that is installed on the LARC2. (These fields are circled
in Figure 2, above.) Both fields should indicate that Software Version 3.00R is installed. If not,
begin again with step 1.
6
(continued from page 5)
