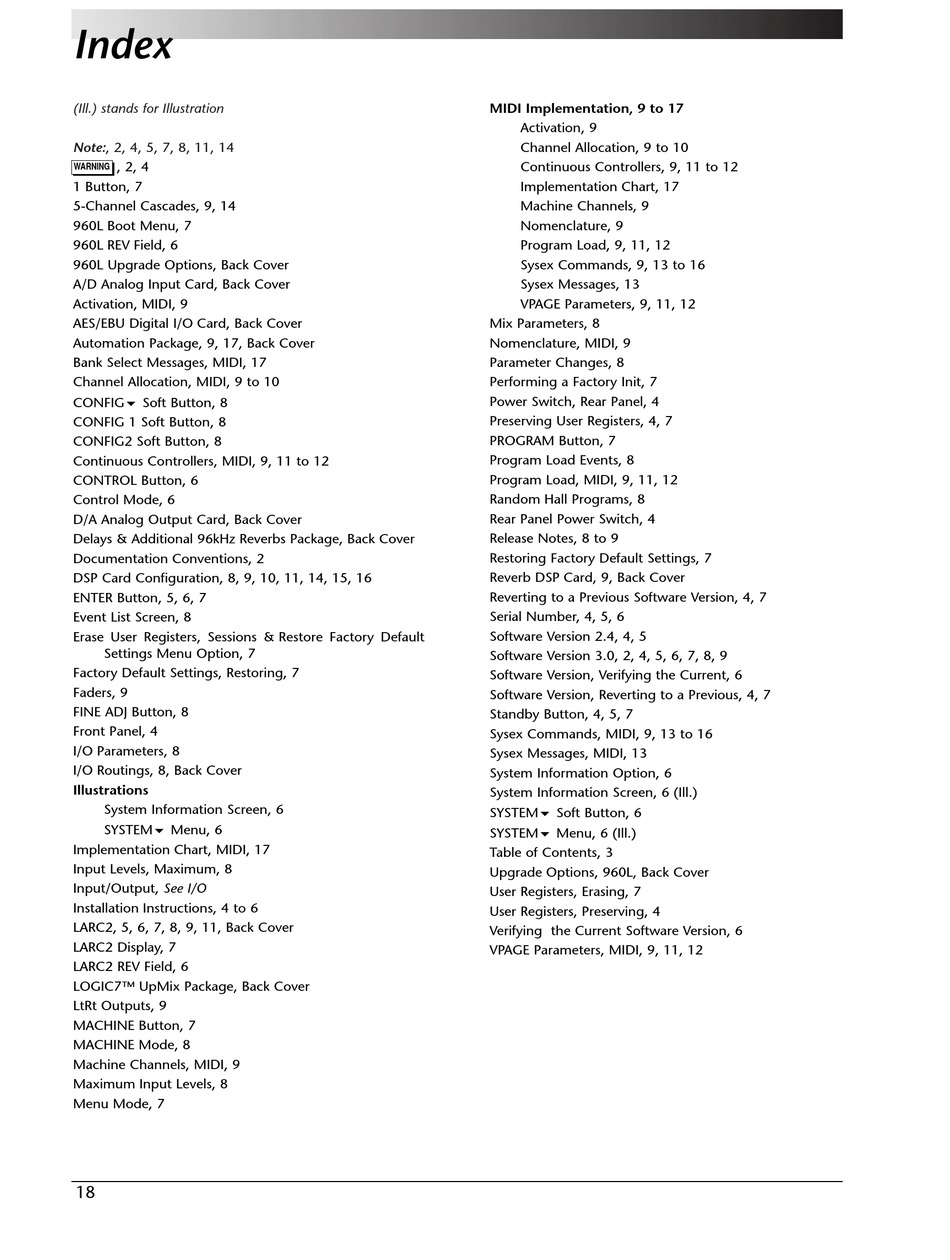

Index

(Ill.) stands for Illustration
Note:, 2, 4, 5, 7, 8, 11, 14
@@@@, 2, 4
WARNING
1 Button, 7
5-Channel Cascades, 9, 14
960L Boot Menu, 7
960L REV Field, 6
960L Upgrade Options, Back Cover
A/D Analog Input Card, Back Cover
Activation, MIDI, 9
AES/EBU Digital I/O Card, Back Cover
Automation Package, 9, 17, Back Cover
Bank Select Messages, MIDI, 17
Channel Allocation, MIDI, 9 to 10
CONFIG! Soft Button, 8
CONFIG 1 Soft Button, 8
CONFIG2 Soft Button, 8
Continuous Controllers, MIDI, 9, 11 to 12
CONTROL Button, 6
Control Mode, 6
D/A Analog Output Card, Back Cover
Delays & Additional 96kHz Reverbs Package, Back Cover
Documentation Conventions, 2
DSP Card Configuration, 8, 9, 10, 11, 14, 15, 16
ENTER Button, 5, 6, 7
Event List Screen, 8
Erase User Registers, Sessions & Restore Factory Default
Settings Menu Option, 7
Factory Default Settings, Restoring, 7
Faders, 9
FINE ADJ Button, 8
Front Panel, 4
I/O Parameters, 8
I/O Routings, 8, Back Cover
Illustrations
System Information Screen, 6
SYSTEM! Menu, 6
Implementation Chart, MIDI, 17
Input Levels, Maximum, 8
Input/Output, See I/O
Installation Instructions, 4 to 6
LARC2, 5, 6, 7, 8, 9, 11, Back Cover
LARC2 Display, 7
LARC2 REV Field, 6
LOGIC7™ UpMix Package, Back Cover
LtRt Outputs, 9
MACHINE Button, 7
MACHINE Mode, 8
Machine Channels, MIDI, 9
Maximum Input Levels, 8
Menu Mode, 7
18
MIDI Implementation, 9 to 17
Activation, 9
Channel Allocation, 9 to 10
Continuous Controllers, 9, 11 to 12
Implementation Chart, 17
Machine Channels, 9
Nomenclature, 9
Program Load, 9, 11, 12
Sysex Commands, 9, 13 to 16
Sysex Messages, 13
VPAGE Parameters, 9, 11, 12
Mix Parameters, 8
Nomenclature, MIDI, 9
Parameter Changes, 8
Performing a Factory Init, 7
Power Switch, Rear Panel, 4
Preserving User Registers, 4, 7
PROGRAM Button, 7
Program Load Events, 8
Program Load, MIDI, 9, 11, 12
Random Hall Programs, 8
Rear Panel Power Switch, 4
Release Notes, 8 to 9
Restoring Factory Default Settings, 7
Reverb DSP Card, 9, Back Cover
Reverting to a Previous Software Version, 4, 7
Serial Number, 4, 5, 6
Software Version 2.4, 4, 5
Software Version 3.0, 2, 4, 5, 6, 7, 8, 9
Software Version, Verifying the Current, 6
Software Version, Reverting to a Previous, 4, 7
Standby Button, 4, 5, 7
Sysex Commands, MIDI, 9, 13 to 16
Sysex Messages, MIDI, 13
System Information Option, 6
System Information Screen, 6 (Ill.)
SYSTEM! Soft Button, 6
SYSTEM! Menu, 6 (Ill.)
Table of Contents, 3
Upgrade Options, 960L, Back Cover
User Registers, Erasing, 7
User Registers, Preserving, 4
Verifying the Current Software Version, 6
VPAGE Parameters, MIDI, 9, 11, 12
