960L
User Interface Enhancements
The 960L user interface features several enhancements that support Delay algorithms. To simplify delay algorithm
editing, the algorithm parameters have been grouped into two separate Edit screens: the Delay Voice Screen and the
Standard Algorithm Edit screen. The new Delay Voice Screen is pictured below (Figure 1).
The Delay Voice screen displays each time a delay
program is loaded and the EDIT mode button is pressed. It
contains all parameters associated with the delay voices
of each algorithm.
To select a delay voice to edit:
1.
Use the Numeric Keypad or Navigation Arrows to
select the desired delay voice. The selected Delay
Voice parameters will be assigned to the faders.
2.
Adjust the Delay Voice parameter to the desired
setting.
DELAY VOICE PANNING
When a delay voice is selected, the panner for that delay
voice is automatically assigned to the joystick. To position
the delay voice, lock the joystick by pressing the JOYSTICK
button, then move the joystick to position the delay voice.

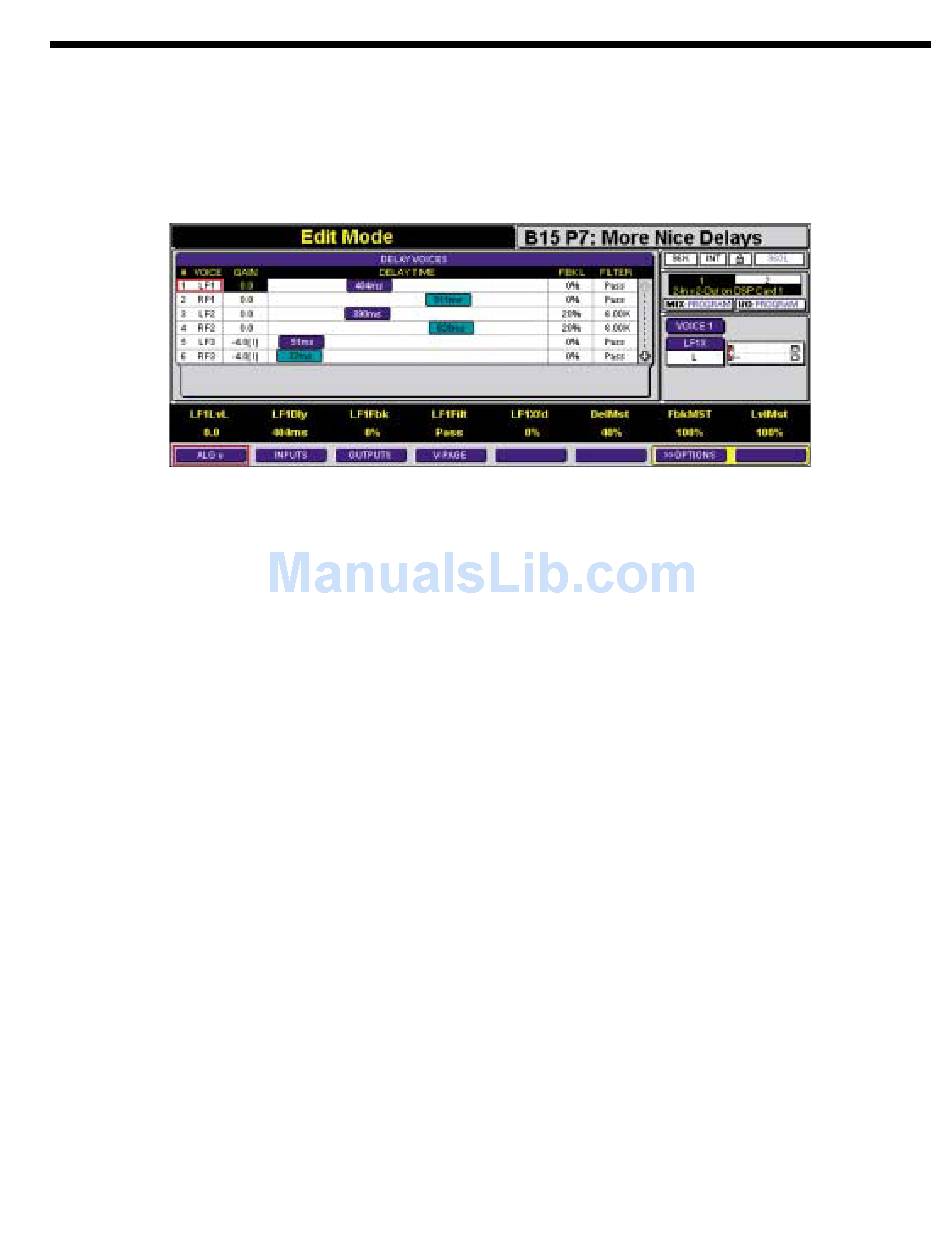

Figure 1 - Delay Voice Screen
FINE ADJUST
To make fine adjustments to parameters, use one of the
following methods:
1.
To make fine adjustments to a single parameter, simply
touch
parameter, then use the +/- keys to adjust the
parameter to the desired setting. (This option does not
apply for FbkMST and LvlMST.)
2.
Press the FINE ADJ button located on the right side of
the LARC2, then adjust the parameter to the desired
setting. When FINE ADJ is pressed, the button will light
to indicate that fine adjust is enabled. The faders will
automatically center. To disable fine adjust, press FINE
ADJ again. The faders will automatically move to their
set positions.
Version 2.5 Software Release
the
appropriate
fader
to
select
the
7
