The Front Panel

Floppy Drive

This is a 3.5", High Density, IBM Format compatible,
floppy drive. This is primarily used for saving user
Registers.
960L DIGITAL EFFECTS SYSTEM

Standby Switch and Indicator

This switches the 960L between on and standby; the
indicator LED lights when the unit is on.

Thumbscrews

To gain access into the front section of the chassis,
unscrew both thumbscrews and lower the hinged panel.

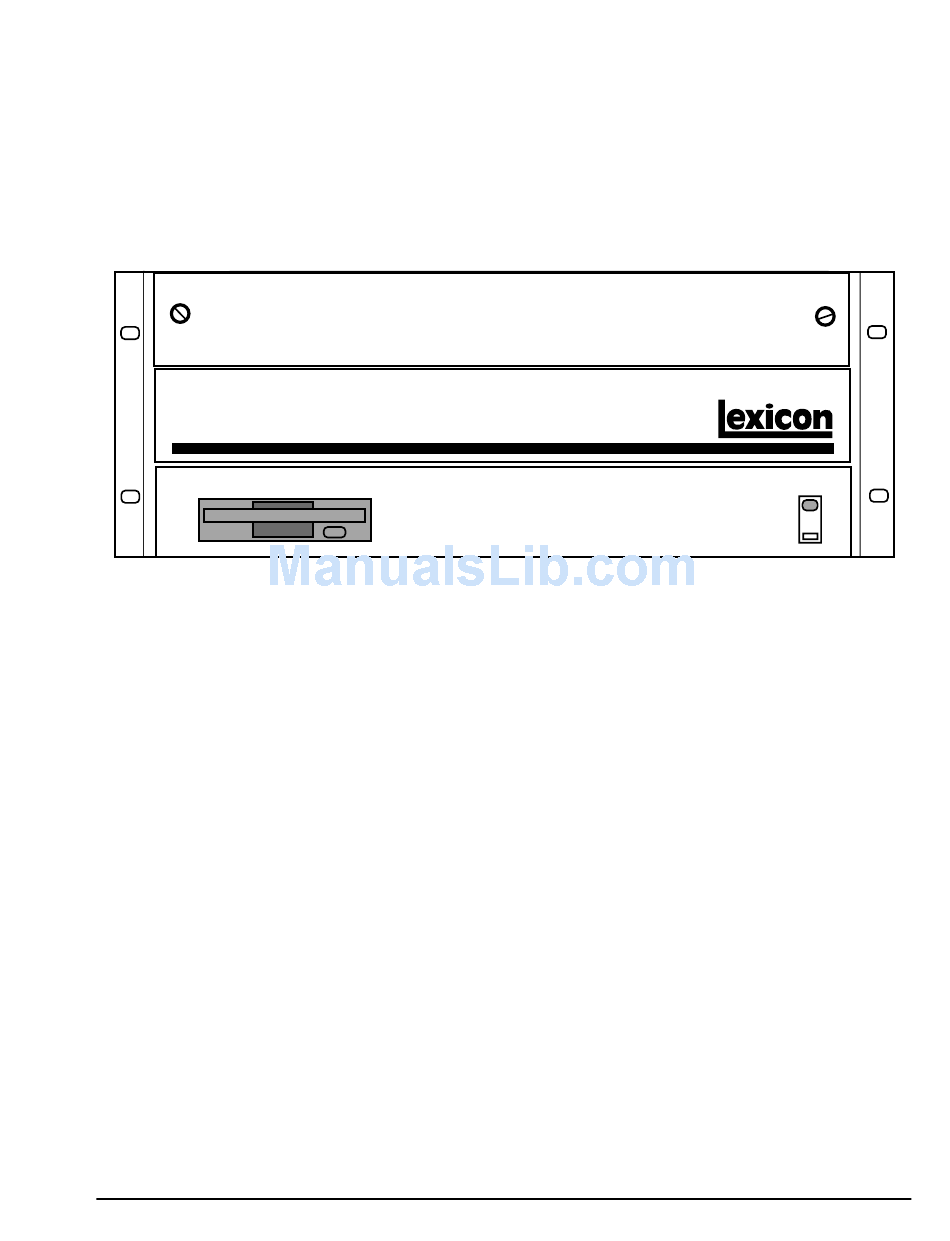

Figure 1-2 — Front panel, closed.
When your 960L is in standby, the power to most
circuitry is removed. To completely disconnect power
from the 960L, either turn off the power by using the
switch located on the rear panel of the 960L or unplug
the power cable from the wall outlets.
