Product Overview
The Juniper Networks SSG300 line
consists of purpose-built security
appliances that deliver the ideal
blend of performance, security,
routing, and LAN/WAN connectivity
for large, regional branch offices and
medium-size, standalone businesses.
Traffic flowing in and out of a regional
office or business is protected
from worms, spyware, trojans, and
malware by a complete set of Unified
Threat Management security features,
including stateful firewall, IPsec VPN,
intrusion prevention system (IPS),
antivirus (includes antispyware,
antiadware, antiphishing), antispam,

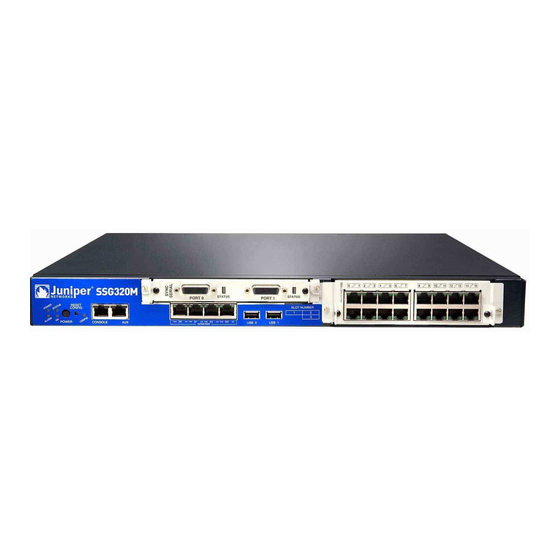

and Web filtering. The SSG300 line
comprises the SSG350M and the
SSG320M Secure Services Gateways.
SSG320M ANd
SSG350M SecUre
SerVIceS
GATeWAyS
Product Description
The Juniper Networks
SSG300 line of secure services gateways comprises high-
®
performance security platforms that help businesses stop internal and external attacks,
prevent unauthorized access, and achieve regulatory compliance. The Juniper Networks
SSG350M Secure Services Gateway provides 500 Mbps of stateful firewall performance
and 225 Mbps of IPsec VPN performance, while the Juniper Networks SSG320M Secure
Services Gateway provides 400 Mbps of stateful firewall performance and 175 Mbps of
IPsec VPN performance.
These products focus on three key disciplines:
Security: Protection against worms, viruses, trojans, spam, and emerging malware
is delivered by proven Unified Threat Management (UTM) security features that are
backed by best-in-class partners. To address internal security requirements and facilitate
regulatory compliance, the SSG300 line supports an advanced set of network protection
features such as security zones, virtual routers, and VLANs that allow administrators to
divide the network into distinct, secure domains, each with their own unique security
policy. Policies protecting each security zone can include access control rules and
inspection by any of the supported UTM security features.
Regional O ce
Zone A
SSG350M
Zone C
Zone B
The SSG350M deployed at a branch office for secure Internet connectivity and site-to-site
VPN to corporate headquarters. Internal branch office resources are protected with unique
security policies applied to each security zone.
Headquarters
M7i
Internet
NetScreen-5400
DATASHEET
1
Advertisement
Table of Contents
Related Manuals for Juniper SSG350M
Summarization of Contents
Juniper SSG300 Series Product Overview
Product Description and Key Disciplines
Details the SSG300 line's focus on high-performance security, covering Security, Connectivity, and Access Control.
Security Features
Covers Unified Threat Management (UTM) security features and network protection capabilities.
Connectivity and Routing Capabilities
Explains the platform's flexible LAN/WAN connectivity and routing capabilities for branch offices.
Access Control Enforcement
Describes how the SSG300 acts as an enforcement point in Juniper Networks Unified Access Control.
Juniper SSG300 Features and Benefits
High Performance and UTM Security
Highlights the platform's performance and best-in-class Unified Threat Management (UTM) security features.
Connectivity, Segmentation, and Modularity
Covers fixed interfaces, network segmentation, and interface modularity for flexible network design.
Routing, VPN, and Management
Details the robust routing engine, VPN capabilities, management flexibility, and professional services.
Juniper SSG300 Product Options
NEBS Compliance and DRAM Options
Details NEBS-compliant versions and available DRAM configurations for the SSG300 line.
UTM/Content Security Licensing
Explains licensing requirements for enabling UTM and content security functionality on SSG300 models.
I/O Expansion Options
Lists the various optional I/O modules available for expanding the SSG300's connectivity.
Juniper SSG300 Specifications
Maximum Performance and Capacity
Provides detailed performance metrics for firewall throughput, VPN, and session handling.
Network Connectivity Details
Specifies fixed I/O, interface modules, and WAN/LAN interface options for network connections.
Firewall, UTM, and VoIP Security
Lists specific firewall features, Unified Threat Management (UTM) capabilities, and VoIP security protocols.
IPsec VPN and User Authentication
Details IPsec VPN tunnel specifications and various user authentication methods supported.
Routing, Encapsulations, and IPv6
Covers supported routing protocols, encapsulation methods, and IPv6 features.
Address Translation, QoS, and HA
Specifies NAT/PAT, Quality of Service (QoS), High Availability (HA) configurations, and system management.
Dimensions, Power, and Environment
Provides physical specifications, power requirements, operating environment, and certifications.
Juniper Networks Services and Support
Performance-Enabling Network Services
Overview of services designed to optimize network performance, efficiency, and availability.
Juniper SSG300 Ordering Information
SSG320M and SSG350M Model Numbers
Lists specific model numbers for SSG320M and SSG350M base units and configurations.
Unified Threat Management Options
Details licensing options for UTM/Content Security features like Antivirus, IPS, and Web Filtering.
I/O Options and Accessories
Lists available I/O modules, memory upgrades, and communication cables for the SSG300 line.
About Juniper Networks
Company Overview and Innovation
Provides a brief overview of Juniper Networks' business, innovation in networking, and market presence.
