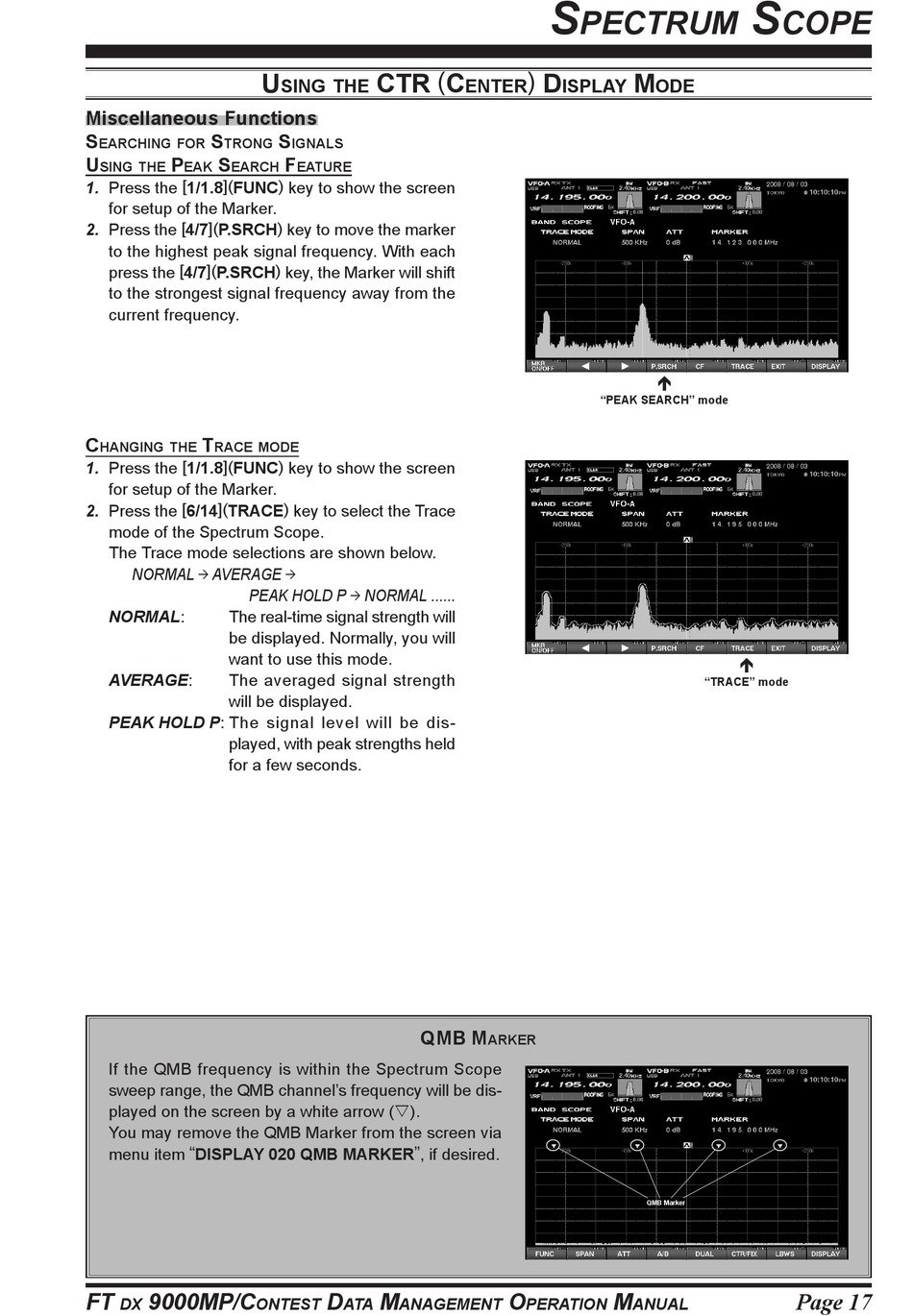

Miscellaneous Functions

S S
EARCHING FOR TRONG
U P S
SING THE EAK EARCH
1. Press the [ 1/1.8 ]( FUNC ) key to show the screen
for setup of the Marker.
2. Press the [ 4/7 ]( P.SRCH ) key to move the marker
to the highest peak signal frequency. With each
press the [ 4/7 ]( P.SRCH ) key, the Marker will shift
to the strongest signal frequency away from the
current frequency.
C T
HANGING THE RACE MODE
1. Press the [ 1/1.8 ]( FUNC ) key to show the screen
for setup of the Marker.
2. Press the [ 6/14 ]( TRACE ) key to select the Trace
mode of the Spectrum Scope.
The Trace mode selections are shown below.
NORMAL AVERAGE
PEAK HOLD P
NORMAL: The real-time signal strength will
be displayed. Normally, you will
want to use this mode.
AVERAGE: The averaged signal strength
will be displayed.
PEAK HOLD P: The signal level will be dis-
played, with peak strengths held
for a few seconds.
If the QMB frequency is within the Spectrum Scope
sweep range, the QMB channel's frequency will be dis-
played on the screen by a white arrow ( ).
You may remove the QMB Marker from the screen via
menu item " DISPLAY 020 QMB MARKER " , if desired.
FT 9000MP/C
DX ONTEST
CTR ( C
U
SING THE
S
IGNALS
F
EATURE
NORMAL ......
QMB M
D M
ATA ANAGEMENT
S
PECTRUM
) D
M
ENTER ISPLAY
"PEAK SEARCH" mode
ARKER
O M
PERATION ANUAL
S
COPE
ODE
"TRACE" mode
QMB Marker
