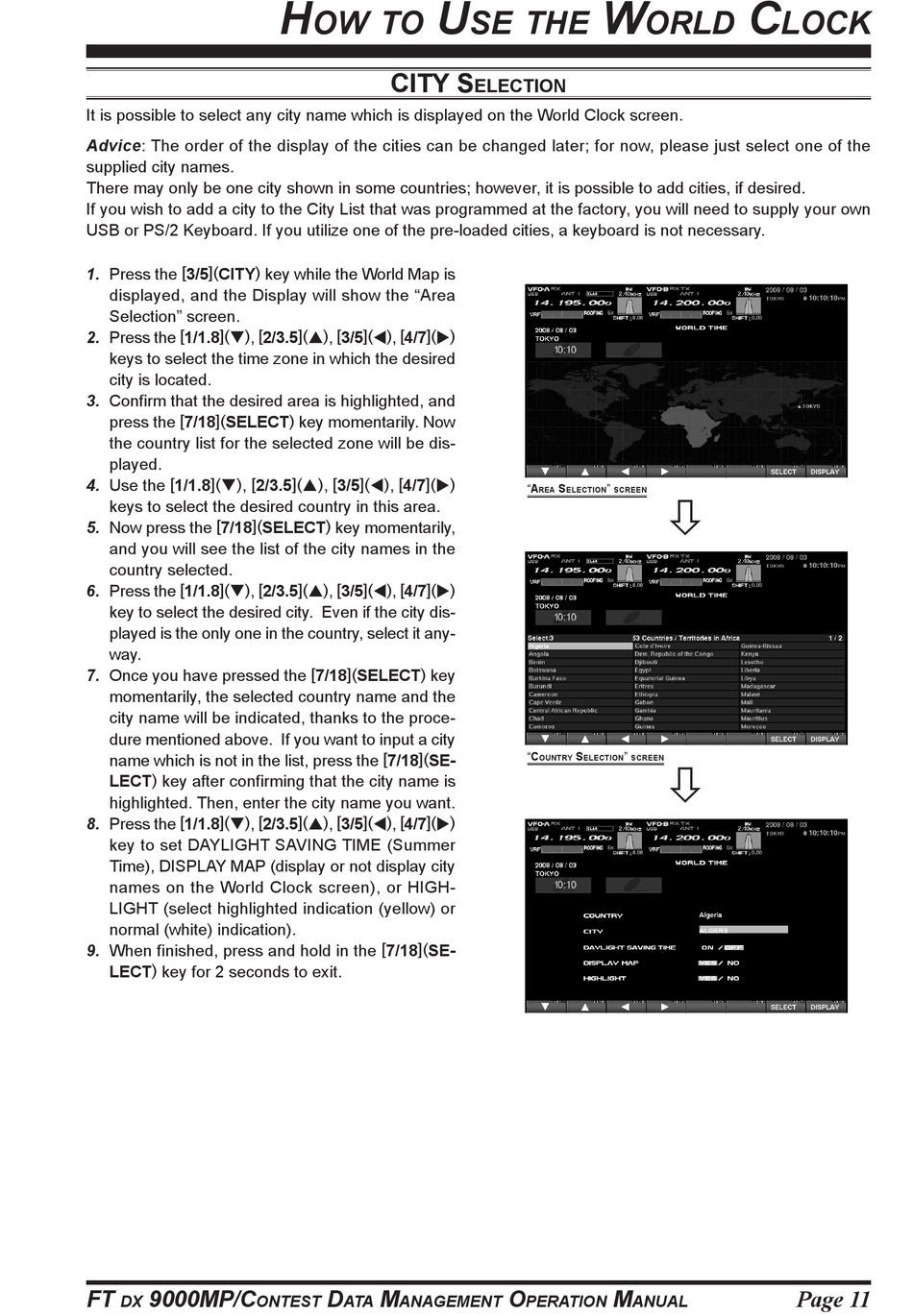

City Selection - Yaesu FTDX9000 - DATA MANAGEMENT Operation Manual

It is possible to select any city name which is displayed on the World Clock screen.
Advice: The order of the display of the cities can be changed later; for now, please just select one of the
supplied city names.
There may only be one city shown in some countries; however, it is possible to add cities, if desired.
If you wish to add a city to the City List that was programmed at the factory, you will need to supply your own
USB or PS/2 Keyboard. If you utilize one of the pre-loaded cities, a keyboard is not necessary.
1. Press the [ 3/5 ]( CITY ) key while the World Map is
displayed, and the Display will show the "Area
Selection" screen.
2. Press the [ 1/1.8 ]( ) , [ 2/3.5 ]( ) , [ 3/5 ]( ) , [ 4/7 ]( )
keys to select the time zone in which the desired
city is located.
3. Confirm that the desired area is highlighted, and
press the [ 7/18 ]( SELECT ) key momentarily. Now
the country list for the selected zone will be dis-
played.
4. Use the [ 1/1.8 ]( ) , [ 2/3.5 ]( ) , [ 3/5 ]( ) , [ 4/7 ]( )
keys to select the desired country in this area.
5. Now press the [ 7/18 ]( SELECT ) key momentarily,
and you will see the list of the city names in the
country selected.
6. Press the [ 1/1.8 ]( ) , [ 2/3.5 ]( ) , [ 3/5 ]( ) , [ 4/7 ]( )
key to select the desired city. Even if the city dis-
played is the only one in the country, select it any-
way.
7. Once you have pressed the [ 7/18 ]( SELECT ) key
momentarily, the selected country name and the
city name will be indicated, thanks to the proce-
dure mentioned above. If you want to input a city
name which is not in the list, press the [ 7/18 ]( SE-
LECT ) key after confirming that the city name is
highlighted. Then, enter the city name you want.
8. Press the [ 1/1.8 ]( ) , [ 2/3.5 ]( ) , [ 3/5 ]( ) , [ 4/7 ]( )
key to set DAYLIGHT SAVING TIME (Summer
Time), DISPLAY MAP (display or not display city
names on the World Clock screen), or HIGH-
LIGHT (select highlighted indication (yellow) or
normal (white) indication).
9. When finished, press and hold in the [ 7/18 ]( SE-
LECT ) key for 2 seconds to exit.
FT 9000MP/C
DX ONTEST
H U
OW TO
CITY S
D M
ATA ANAGEMENT
W
SE THE
ELECTION
"A S "
REA ELECTION SCREEN
"C S "
OUNTRY ELECTION SCREEN
O M
PERATION ANUAL
C
ORLD LOCK
Page 11
