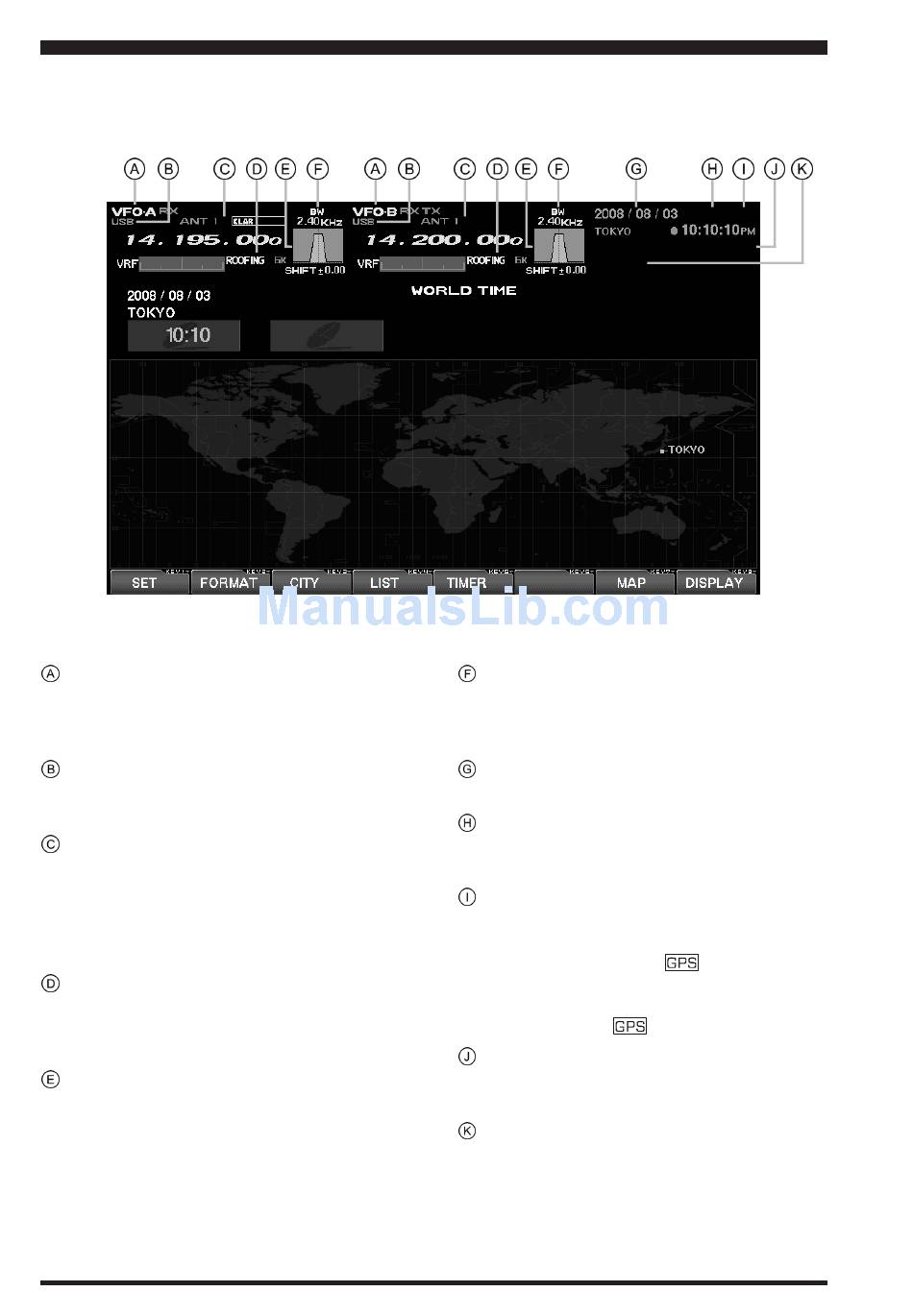

Main ( VFO-A ) & Sub ( VFO-B ) Fields
These areas of the Display contain information
about the status of the Main (VFO-A) and Sub
(VFO-B) VFOs.
MODE Fields
These fields indicate the operating mode in use
on the above VFOs.
TX Frequency/Clarifier/
Antenna Selection Fields
These notations advise which VFO is being used
for transmission, status of the Clarifier, and a no-
tation of which antenna has been selected on that
VFO.
Filter Fields
These fields note the offset status for the Tuning
or VRF filters, as well as the Roofing filter selec-
tion, for each VFO.
Filter Shift Fields
These fields graphically depict the positions of
the DSP RX filters for the Main and Sub VFOs,
indicating any "IF Shift" or "Width" tuning changes
applied.
Page 6
E
SING AN
FT 9000MP/C
DX ONTEST
M
XTERNAL
Bandwidth Fields
This field indicates the net receiver bandwidth cur-
rently set for the Main (VFO-A) and Sub (VFO-B)
VFOs.
Date Field
The current date is displayed here.
Local Time-1 Field
The current time at your location (Local Time-1)
is displayed here.
GPS Field
If you have connected an after-market GPS unit
(one providing NMEA location data) to the rear
panel of the transceiver, "
is white) will appear here. When display the your
location on a World Map with the GPS data, a
base color of the "
Local Time-2 Field
The Local Time-2 time, as programmed, will ap-
pear here.
Timer Field
When the On Timer has been engaged, "TIMER"
will appear here; when the Alarm has been en-
gaged, "ALARM" will appear in this field.
D M
ATA ANAGEMENT
ONITOR
" icon (Base color
" icon turns into yellow.
