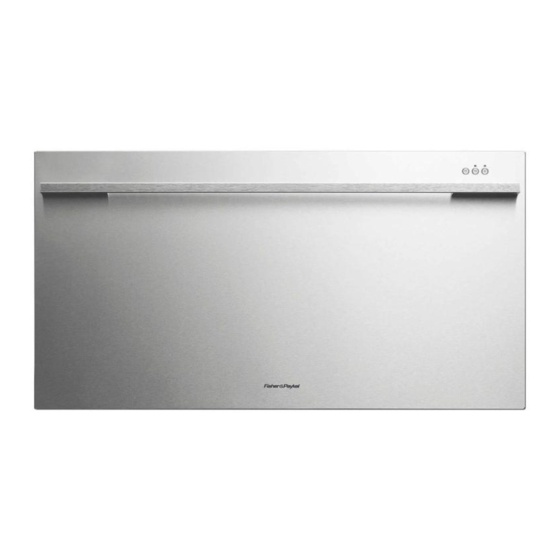

Fisher & Paykel DishDrawer DD60DCX7 Quick Start

QUICK START GUIDE

DishDrawer TM dishwasher (Designer)
NZ AU US CA
Keep this document handy for easy reference.
For detailed information on the features of your dishwasher, see your 'User guide' .
Before using your dishwasher, make sure you read the full 'User guide' , with special attention to the 'Safety and warnings' section.
For contact information or if you require service, assistance or replacement parts, see the end of this document or your 'Service & warranty' booklet.

Your model

Note: each drawer in
double models has its
DD60DDFX7
DD60DDFM7 own controls and can
DD24DDF(T)X7
run independently of
the other drawer.

Operating instructions - Starting a wash

1
Discard scraps
Scrape large food particles off
(e.g. bones, fruit stones) and
remove any foreign objects
(e.g. toothpicks, strings, paper).
2
Load dishes carefully
To help with wash performance,
arrange dishes so they are
evenly spaced and not nesting.
3
Check spray arm(s)
Ensure there are no items
blocking the spray arm(s) from
rotating.
DD60SDF(T)X7
DD90SDFTX2
DD60SDF(T)M7
DD90SDFTM2
DD24SDF(T)X7
DD36SDFTX2
4
Add detergent and check rinse
aid
Fill the detergent dispenser (a) with
powdered detergent and close the
dispenser door.
a
Important!
Do not place liquid detergent or tablets in
c
the detergent dispenser.
b
If the indicator on its plug (c) glows
bright red, refill the rinse aid
dispenser (b) with liquid rinse aid.
d
Make sure you then refit the rinse
aid plug back into its original
position.
If using a tablet, place it in the
cutlery basket (d) or at the bottom
of the drawer.
5
Select wash
Power the dishwasher on
then select wash program
Start wash or set Delay start
6
Close the drawer and press

Wash program controls

Wash program indicators
These show which program is selected.
Wash
STANDARD PROGRAMS - designed to clean and dry your dishes
program
selector
HEAVY
Press to
Heavily soiled
scroll
pots, pans and
through the
dishes.
wash
programs.
ECO PROGRAMS - designed to clean your dishes energy-efficiently
HEAVY ECO
Heavily soiled
everyday
dishes.

Main controls

Power on/off
Press to turn the dishwasher on
or off.
Opening the drawer will automatically
turn the dishwasher on for 30 seconds.
Cancel wash/Cancel Delay start
Press to cancel a wash that has
already started or to cancel the Delay
start setting.
If there is any water in the drawer,
it will automatically drain before the
.
dishwasher turns off.
.
NORMAL FAST DELICATE
Dishes that are Lightly soiled Lightly soiled
quite heavily dishes. and heat
soiled or food sensitive
soils that have crockery.
been left to dry
overnight
DELICATE
NORMAL FAST ECO
ECO
ECO
Lightly soiled,
Normal soiled Lightly soiled,
non-greasy
dishes for non-greasy
and heat
optimum dishes.
sensitive
water and
crockery.
energy usage.
The Energy
Guide is based
on this cycle.
Start/Pause Keylock
Press to start, pause, or resume a
Keylock disables all the buttons
wash.
– helpful when cleaning the
dishwasher.
After pausing a wash, wait for 3 beeps
before opening the drawer. Forcing it
To activate, press and hold
open in mid-cycle may cause damage
you hear one beep (3 seconds). The
or injury.
light above the button will glow
steadily.
Set Delay start To cancel, press and hold
light above it goes out.
Press and hold until the light
1
above it changes from blue to Childlock
purple, then release. You are now
Childlock locks the drawer and
in Delay start mode.
disables all the buttons, preventing
Press briefly again, repeating
2
unauthorized use by children.
as many times as the number of
hours you want to delay the start
To activate, press and hold
of a wash by. The dishwasher will
you hear two beeps (5 seconds). The
emit a beep for every hour of delay
light above the button will glow
time (1 to 12 hours).
steadily.
You have now set Delay start. The
To cancel, press and hold
wash will start once the delay time
light above it goes out.
is over, provided the drawer is closed.
ECO selector
RINSE
and indicator
Prevents
Press if you'd
odors
like the program
and soils
to use less energy.
drying on
The indicator will
dishes.
glow red when an
Eco program has
been selected.
until
until the
until
until the
continued over
