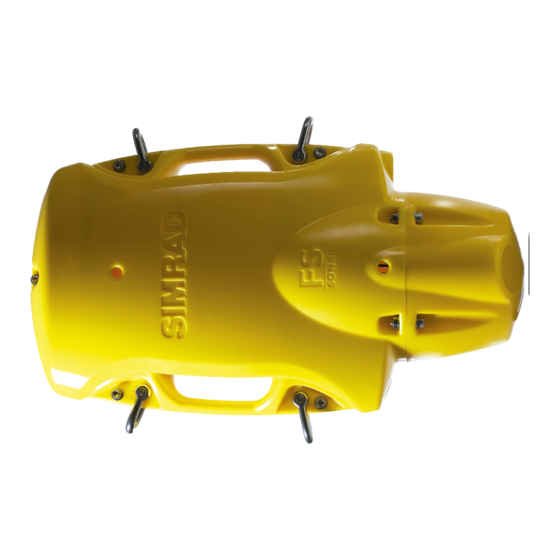

Simrad FS70 - REV 3 Manual

Fs 70 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

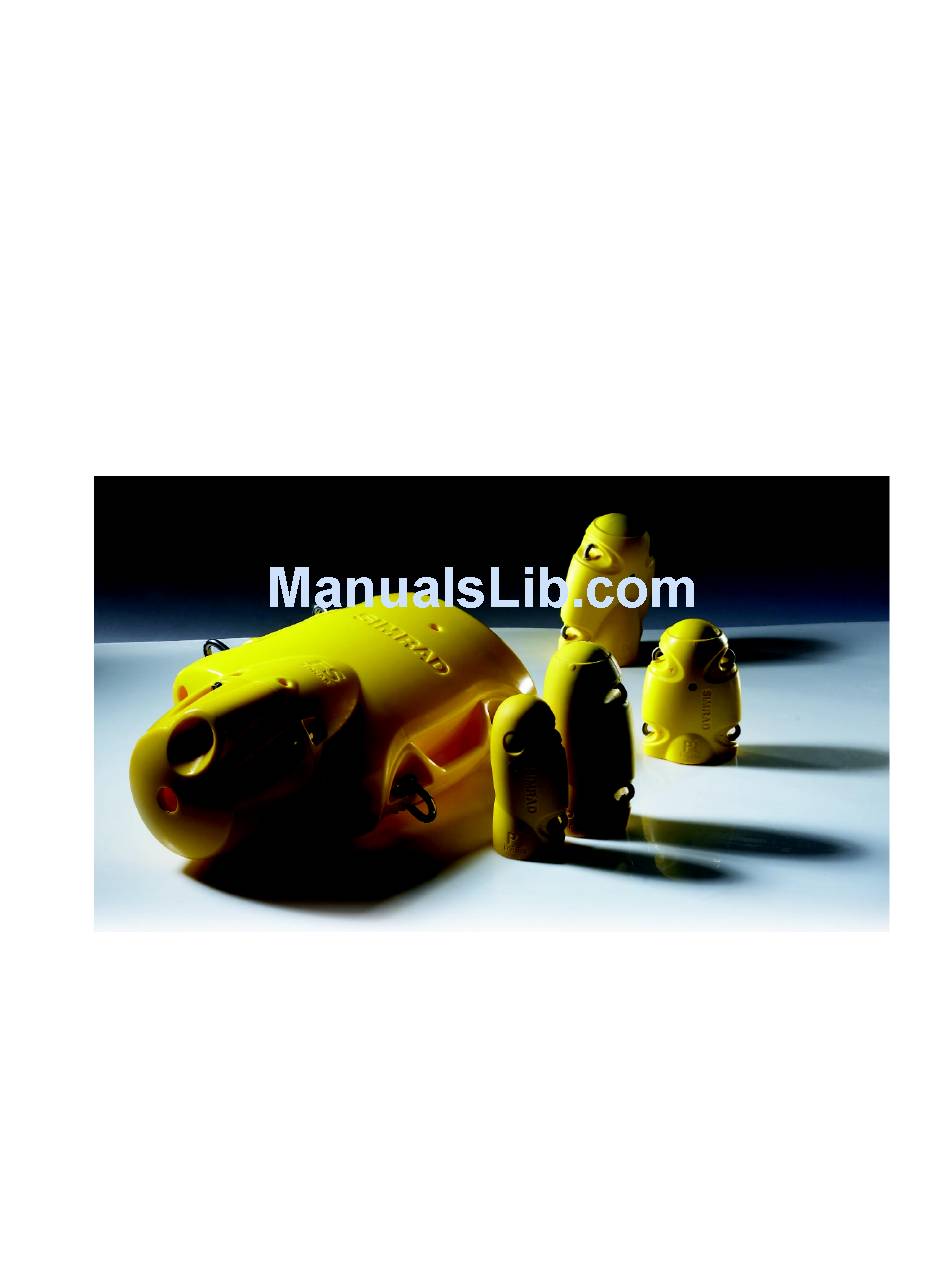

FS 70 OPERATOR MANUAL
974-24007001
Issue 3.0
January 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS70 - REV 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Simrad FS70 - REV 3

Summary of Contents for Simrad FS70 - REV 3

  • Page 1 FS 70 OPERATOR MANUAL 974-24007001 Issue 3.0 January 2009...
  • Page 3 (24) months for underwater and surface equipment from date of installation by an authorized Kongsberg Group Company, Simrad Distributor, Dealer or Agency. The warranty does not apply to defects caused by force majeure events or misuse including water damage to the surface equipment, improper maintenance and installation or including excessive wear and tear for which Kongsberg Mesotech Ltd.
  • Page 4 Warranty Service: • Warranty service is available worldwide through authorized Kongsberg Group Companies, Simrad Distributors, Dealers or Agencies. When requesting warranty service, you must supply the following information: Proof of purchase. Equipment part number and serial number.
  • Page 5 FS 70 Operators Manual 974-24007001/3.0 List of Contents Page 3 LIST OF CONTENTS Part 1..................System Familiarization Part 2..................Theory of Operation Part 3................... FS 70 System Operation Part 4............. FS 70 Installation, System Set-Up and Test Part 5..............Troubleshooting and Maintenance Part 6...................
  • Page 6 974-24007001/3.0 FS 70 Operators Manual Page 4 List of Contents Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...
  • Page 7 FS 70 Operators Manual 974-24007001/3.0 List of Contents Page 5 MODIFICATION RECORD FS 70 OPERATORS MANUAL 974-24007001 Issue: 3.0 January 2009 Issue No. Date Initial Comments 01.06 First release 01.07 Second release ______3.0_________01.09________ L.F________Third release_______________ To assist us in making improvements to the product and documentation, Kongsberg Mesotech welcomes comments and constructive criticisms.
  • Page 8 974-24007001/3.0 FS 70 Operators Manual Page 6 List of Contents Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...

  • Page 9: Table Of Contents

    FS 70 Operators Manual 974-24007001/3.0 System Familiarization Page 1.1 PART 1 SYSTEM FAMILIARIZATION SYSTEM FAMILIARIZATION................1.3 OVERVIEW ....................1.3 1.1.1 Equipment Configuration ............... 1.3 1.1.2 System Configuration................1.4 1.1.3 Display Monitor ..................1.4 1.1.4 Processor Unit ..................1.4 1.1.5 Power /TTM Interface Module..............1.5 1.1.6 Deployment Housing Unit ..............
  • Page 10 974-24007001/3.0 FS 70 Operators Manual Page 1.2 System Familiarization Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...

  • Page 11: System Familiarization

    1. SYSTEM FAMILIARIZATION 1.1 OVERVIEW The SIMRAD FS 70 Series is a third wire trawl monitoring system for pelagic and bottom fishing trawlers. The system provides real time images from the trawl sonar head and data from the sensors to the bridge, thus maximizing the quality of the catch and reducing sea time.

  • Page 12: System Configuration

    Rack Integrated System Cabinet Monitor Monitor 30m.VGA Extender Cable c/w K & M, KB & M SIMRAD Power/TTM 30m.VGA Extender Cable 120 or 230 AC Power Input System Standard Equipments 3 U, 19" Rack Power/TTM c/w Front Test Cable Connection 120 or 230 AC Power 1 U, 19"...

  • Page 13: Power /Ttm Interface Module

    FS 70 Operators Manual 974-24007001/3.0 System Familiarization Page 1.5 The sector heading and width are also controlled by a single mouse click used to set the center of the area to be scanned and the width of the sector scan (up to 360°) in the polar mode.

  • Page 14: Jointing Tool

    1.1.9 PI Sensors Option The FS 70 provides full integration with the PI System, Door Spread, Bottom Contact, Rip Sensor and Cod End Depth Sensor available from Simrad Horten AS. 1.1.10 Depth & Temperature NMEA Output The FS 70 processing Unit can be configured to output NMEA 183 data information.

  • Page 15: 19" Rack Cabinet 9U

    FS 70 Operators Manual 974-24007001/3.0 System Familiarization Page 1.7 Cable winches are delivered in different types and with different capacities; low- pressure hydraulic, high-pressure hydraulic and electrically driven. Choice of winch is dependent on prevailing conditions; type and length of cable and available source of power.
  • Page 16 974-24007001/3.0 FS 70 Operators Manual Page 1.8 System Familiarization Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...
  • Page 17 FS 70 Operators Manual 974-24007001/3.0 Theory of Operation Page 2.1 PART 2 THEORY OF OPERATION THEORY OF OPERATION................2.3 INTRODUCTION ..................2.3 2.1.1 Basic Principles..................2.3 2.1.2 Determining Target Position ..............2.3 2.1.3 Forming an Image .................. 2.3 2.1.4 Key Feature Setting ................2.4 2.1.4.1 AGC ....................
  • Page 18 974-24007001/3.0 FS 70 Operators Manual Page 2.2 Theory of Operation Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...

  • Page 19: Theory Of Operation

    FS 70 Operators Manual 974-24007001/3.0 Theory of Operation Page 2.3 THEORY OF OPERATION INTRODUCTION This section explains the theory of operation of the Vertical and Sounder Scanning Trawl Monitoring Sonar System. 2.1.1 Basic Principles • Sound waves travel very efficiently through water. •...

  • Page 20: Key Feature Setting

    974-24007001/3.0 FS 70 Operators Manual Page 2.4 Theory of Operation After the TVG correction, the absolute levels of the received signals will be determined by the acoustic response of the reflecting target. The sonar processor system repeatedly measures the TVG corrected target levels by digitizing a sequence of samples after each sound pulse transmission.

  • Page 21: Rx Gain Response And Type

    FS 70 Operators Manual 974-24007001/3.0 Theory of Operation Page 2.5 2.1.4.3 RX Gain Response and Type The setting of the “RX Gain Response” determines the response of the filter algorithm as selected by the “RX Gain Type”. For the AGC, this setting determines the speed by which the gain is adjusted.

  • Page 22: Peak Detection

    974-24007001/3.0 FS 70 Operators Manual Page 2.6 Theory of Operation 2.1.4.7 Peak Detection The Peak Detection feature is described as follows. The older sonar heads were not capable of changing the acoustic pulse length. They were generally operated at a pulse length of 100 Microseconds. This meant that at a range greater than 50 meters, there would have been a good chance of not detecting small targets.
  • Page 23 FS 70 Operators Manual 974-24007001/3.0 FS 70 System Operation Page 3.1 PART 3 `FS 70 SYSTEM OPERATION FS 70 SYSTEM OPERATION ................3.3 INTRODUCTION ..................3.3 CONTROL PANEL..................3.4 3.2.1 Operating Control Panel Page ............... 3.5 3.2.2 Display Control Panel Page ..............3.6 3.2.3 Setup Control Panel Page..............
  • Page 24 974-24007001/3.0 FS 70 Operators Manual Page 3.2 FS 70 System Operation Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...

  • Page 25: Fs 70 System Operation

    FS 70 Operators Manual 974-24007001/3.0 FS 70 System Operation Page 3.3 3. FS 70 SYSTEM OPERATION 3.1 INTRODUCTION The FS 70 Sonar uses a control panel for the most frequently needed adjustments and a software menu system for less frequently needed controls. This chapter describes the menu system and explains the adjustments to the menu settings that may be made to control the sonar operation The menu system allows adjustments to several system parameters without...

  • Page 26: Control Panel

    974-24007001/3.0 FS 70 Operators Manual Page 3.4 FS 70 System Operation 3.2 CONTROL PANEL The Sonar Control Panel located above is divided into 7 Pages, Page 1 “Operation”, Page 2 “Display”, Page 3 “Setup”, Page 4 “Settings”, Page 5 “Sensors Control”, Page 6 &...

  • Page 27: Operating Control Panel Page

    FS 70 Operators Manual 974-24007001/3.0 FS 70 System Operation Page 3.5 3.2.1 OPERATING CONTROL PANEL PAGE The main “Operating” control panel allows you to select the sonar you want to control; View Vertical or View Sounder as indicated above. Click on the appropriate display window to activate the sonar you want to control, next position the mouse cursor on the button you want to change, then, click the left mouse button or right mouse button to change the settings.

  • Page 28: Display Control Panel Page

    974-24007001/3.0 FS 70 Operators Manual Page 3.6 FS 70 System Operation 3.2.2 DISPLAY CONTROL PANEL PAGE The main “Display” control panel allows you to select the sonar you want to control. To change the value of the system parameter just left or right click the mouse over the button you have selected, move the mouse up or down until the desired button is highlighted and click the left mouse button or right mouse button to activate the new setting.

  • Page 29: Setup Control Panel Page

    FS 70 Operators Manual 974-24007001/3.0 FS 70 System Operation Page 3.7 3.2.3 SETUP CONTROL PANEL PAGE The main “Setup” control panel allows you to select the sonar you want to control. To change the value of the system parameter just left or right click the mouse over the button you have selected, move the mouse up or down until the desired button is highlighted and click the left mouse button or right mouse button to activate the new setting.

  • Page 30: Users Settings Control Panel Page

    974-24007001/3.0 FS 70 Operators Manual Page 3.8 FS 70 System Operation 3.2.4 USERS SETTINGS CONTROL PANEL PAGE The main “Users” control panel allows you to select the sonar you want to control. To change the value of the system parameter, just left or right click the mouse over the button you have selected, move the mouse up or down until the desired button is highlighted and click the left mouse button or right mouse button to activate the new setting.

  • Page 31: Sensors Control Panel Page & Setup

    FS 70 Operators Manual 974-24007001/3.0 FS 70 System Operation Page 3.9 3.2.5 SENSORS CONTROL PANEL PAGE & SETUP The main “SENSORS” control panel allows you to select the sensors you want to setup. To change the value of the system parameter just left or right click the mouse over the button you have selected, move the mouse up or down until the desired button is highlighted and click the left mouse button or right mouse button to activate the new setting.

  • Page 32: Pi, 40Khz Channel Sensors Setup

    If you are adding for example a temperature sensor you can setup an offset. see the windows above for the example. Note: For additional information on the Simrad PI 30 Setup, please refer to your PI Instruction Manual. Kongsberg Mesotech Ltd.

  • Page 33: Pi, 40Khz Receiver Sensors Setup

    Note: For additional information on the Simrad PI Sensors Setup, please refer to your PI Instruction Manual. Note: The PI sensor setup menus are not available if you are using a 70kHz Catch Sensors system.

  • Page 34: Pi, 40Khz Sensors Activation Menu

    974-24007001/3.0 FS 70 Operators Manual Page 3.12 FS 70 System Operation 3.2.8 PI, 40KHZ SENSORS ACTIVATION MENU The main “SENSORS ACTIVATION MENU” control panel allows you to select the sensors you want to turn ON or OFF. To change the value of the system parameter just left or right click the mouse over the button you have selected, move the mouse up or down until the desired button is highlighted and click the left mouse button or right mouse button to activate the new setting.

  • Page 35: Pi, 70Khz Sensors Activation Menu

    FS 70 Operators Manual 974-24007001/3.0 FS 70 System Operation Page 3.13 3.2.9 PI, 70KHZ SENSORS ACTIVATION MENU The Catch Sensor windows will be displayed automatically when you left click on the Catch Window button located on the Sensors Page. To activate or de-activate individual Catch Sensors click on the appropriate button.

  • Page 36: Advanced Panel Page

    974-24007001/3.0 FS 70 Operators Manual Page 3.14 FS 70 System Operation 3.2.10 ADVANCED PANEL PAGE The main “Advanced” control panel allows you to select the sonar you want to control. To change the value of the system parameter just left or right click the mouse over the button you have selected, move the mouse up or down until the desired button is highlighted and click the left mouse button or right mouse button to activate the new setting.

  • Page 37: Display Rec Toolbar

    FS 70 Operators Manual 974-24007001/3.0 FS 70 System Operation Page 3.15 3.2.12 DISPLAY REC TOOLBAR Place the mouse cursor on the Record “REC” Toolbar button, and then right click the mouse to enable the Record Toolbar ON or OFF. The Toolbar will automatically pop- up on the left side of the screen.

  • Page 38: Display Tools Selection

    974-24007001/3.0 FS 70 Operators Manual Page 3.16 FS 70 System Operation 3.3 DISPLAY Tools SELECTION By placing the mouse cursor on the TOOLS button and then right clicking the mouse, a drop down menu will appear. Move the mouse cursor up or down to select the TOOL of operation you want to select.

  • Page 39: Language

    FS 70 Operators Manual 974-24007001/3.0 FS 70 System Operation Page 3.17 3.5 LANGUAGE By placing the mouse cursor on the Language button and then right clicking the mouse a drop down menu will appear. Move the mouse cursor up or down to select the language of operation you want to select and then left click the mouse on the appropriate selection to activate the language of operation.

  • Page 40: Activating The Sonar

    974-24007001/3.0 FS 70 Operators Manual Page 3.18 FS 70 System Operation 3.7 ACTIVATING THE SONAR When you click on the Run button the system will initialize the serial port. and start the calibration of each sonar head connected to the TTM module. When you click the Stop button you will automatically disconnect the sonar heads from the system.
  • Page 41 FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.1 PART 4 FS 70 INSTALLATION, SYSTEM SET-UP AND TEST FS 70 INSTALLATION, SYSTEM SET-UP AND TEST ........4.3 4.1 INSTALLATION PROCEDURE ..............4.3 4.2 SURFACE UNIT ELECTRONICS INSTALLATION........4.3 4.2.1 Mounting of Units ...................
  • Page 42 974-24007001/3.0 FS 70 Operators Manual Page 4.2 FS 70 Installation, System Set-Up and Test Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...

  • Page 43: Fs 70 Installation, System Set-Up And Test

    Simrad supplied display units include the necessary mounting brackets. If you have not selected the Rack Mounted System, the FS 70 Processing unit should be mounted in close vicinity to the operator's position in the wheel house and near the display unit.

  • Page 44: Power Considerations

    The safety fuses must also be changed to the proper rating. 4.2.3 Connecting a Display Unit Either an LCD VGA monitor or a Simrad LCD monitor may be connected to the FS 70 Processor. Depending on which type of monitor is used, the video output type must be set accordingly.

  • Page 45: Connecting The Ttm Module

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.5 The FS 70 Processor Unit has a Dual NVIDIA Quadro Video interface card installed as standard equipment. You must set up your display software as per your requirement. If you have only one monitor, simply plug your monitor cable into the monitor connector marked “Connector 1”...

  • Page 46: Connecting The Processing Unit

    974-24007001/3.0 FS 70 Operators Manual Page 4.6 FS 70 Installation, System Set-Up and Test 4.2.6 Connecting the Processing Unit The FS 70 Processor unit comes with the FS 70 Trawl Sonar System operating software installed by the factory. Note! All Device drivers and utilities are preloaded on your system and provided on a Driver, Utilities and documentation CD-ROM.

  • Page 47: Connecting An Echo Sounder

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.7 Connect the serial RS 232 Port “A” from the Power Supply/TTM module using the RS232/USB dual channels telemetry converter part number 901-80010000 supplied with the TTM module or connect the 2 meter RS232 crossover cable also supplied with the system.

  • Page 48: Selecting The Trawl Output Voltage

    974-24007001/3.0 FS 70 Operators Manual Page 4.8 FS 70 Installation, System Set-Up and Test The pin connections for your heading sensor input/output PC/RS232 are as follows: Pin number “2” 232 Rx, Pin number “3” 232 Tx, and Pin number “5” GND. Your FS 70 Processing Unit comes equipped with a Network LAN interface adapter.

  • Page 49: Connection To Cable Winch/Slip-Rings

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.9 4.2.10 Connection to Cable Winch/Slip-Rings The connection between the FS TTM Interface unit and the cable winch/slip-rings should be made with an 18 GA., or heavier, shielded twisted pair cable. connection to the control unit is made using the 3-pin MS connector supplied in the TTM module accessory kit.

  • Page 50: System Set-Up And Testing Using Test Cable

    974-24007001/3.0 FS 70 Operators Manual Page 4.10 FS 70 Installation, System Set-Up and Test Note! Incorrect placement of the sonar head, may result in movement of the sonar head that could damage the transducer and/or drive shaft and result in water damage to the entire unit. Note! Dow Corning #55 grease must be applied to all mating surfaces of underwater connectors to insure proper sealing.

  • Page 51: Fs 70 Start-Up Procedure

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.11 The following sections describe the process of configuring these parameters. These steps must be followed only when the system is powered-up for the first time or when you have to replace the Processing unit or the TTM Module assembly.
  • Page 52 974-24007001/3.0 FS 70 Operators Manual Page 4.12 FS 70 Installation, System Set-Up and Test After the “Detect Heads” the above Window will pops up, note that no Com ports have not been enabled yet (and red check mark beside Com port). And If you “Click” on “Detect Heads”...
  • Page 53 FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.13 “Click” on “Apply”. The following window will appear, overlaying the above window, asking you to reboot the computer. Just “Click” “OK” and do not “Reboot the computer now”;...

  • Page 54: Fs 70 Run Up Procedure

    974-24007001/3.0 FS 70 Operators Manual Page 4.14 FS 70 Installation, System Set-Up and Test 4.4.4 FS 70 RUN UP Procedure After you Click on the “Run” Icon, the system will automatically detect and setup the sonar heads attached to the trawl cable. This operation will take approx. 40 sec. After the system Run Up is completed the best way to setup your windows is to Click on the separation window line and drag “Tile Windows”.

  • Page 55: Advanced Menu Display Settings

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.15 4.4.5 Advanced Menu Display Settings Position the cursor on the “Display Settings” Icon, and Click. The window below will pop up. By selecting the appropriate “Key”, you will be able to setup your Colors, Controls Setting and the Head Sensors.
  • Page 56 974-24007001/3.0 FS 70 Operators Manual Page 4.16 FS 70 Installation, System Set-Up and Test By clicking on the appropriate key, you will be able to setup your control setting, i.e. Gain Control, RX Gain, Scan Marker, etc. Note: The “Timer Control” will be turned “ON” automatically when you Click on Timer located on the “Menu Control Panel”.

  • Page 57: Head Sensors Setting

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.17 4.4.7 Head Sensors Setting By selecting and clicking on the “Head Sensors” key on the following window will pop By clicking on the appropriate key, The Depth and Temperature range can also be changed.

  • Page 58: Fs 70 Head Setting

    974-24007001/3.0 FS 70 Operators Manual Page 4.18 FS 70 Installation, System Set-Up and Test 4.4.8 FS 70 Head Setting Position the cursor on the “Control Head” Icon, and CLICK. The window below will pop up. By clicking on the appropriate “KEY”, you will be able to setup your Scan option. You also have full control of the Scan mode via the operator control panel.

  • Page 59: Transmit Setting

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.19 4.4.9 Transmit Setting By selecting and clicking on the “Transmit” key on the above window, the following window will pop up. By clicking on the appropriate key, you will be able to setup your Transmitter configuration in order to optimize fish detection.
  • Page 60 974-24007001/3.0 FS 70 Operators Manual Page 4.20 FS 70 Installation, System Set-Up and Test 4.4.10 TVG Page Setting By selecting and clicking on the “TVG Page” key on the above window, the following window will pop up. By clicking on the appropriate key you will be able to set up your TVG setting. You also have the option of customizing your TVG setting for a specific fishery.

  • Page 61: Info

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.21 4.4.11 Info By selecting and clicking on the “INFO” key on the above window, the following window will pop up. This INFO page will provide you with all the relevant information on the sonar head attached to the system.

  • Page 62: Sensors Page

    974-24007001/3.0 FS 70 Operators Manual Page 4.22 FS 70 Installation, System Set-Up and Test 4.4.12 Sensors Page By selecting and clicking on the “sensors Page” key on the above window, the following window will pop up. This Sensors Page will provide you with all the relevant information on the sonar head attached to the system.

  • Page 63: Auxiliary Transducer (Net Sounder)

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.23 4.4.13 Auxiliary Transducer (Net Sounder) By Clicking on the “Auxiliary Transducer” key on the above window, the following window will pop up. By Clicking on the appropriate key, you will be able to control the FS Sounder option. Note: The Auxiliary Transducer window is only applicable to the FS Sounder.

  • Page 64: Save User Setting

    974-24007001/3.0 FS 70 Operators Manual Page 4.24 FS 70 Installation, System Set-Up and Test 4.5 SAVE USER SETTING After you have completed your system configuration, you should “SAVE” your setting. Go to the User Menu and “Click” on “Save Setting”. The following window will pop up.

  • Page 65: Add User Setting

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.25 4.5.1 Add User Setting After you have completed your system configuration you should save your setting, Go to the Header Menu and Click on “Configuration”. Next Click on “USERS”, then Click on “DEFINE”.

  • Page 66: Final System Test

    974-24007001/3.0 FS 70 Operators Manual Page 4.26 FS 70 Installation, System Set-Up and Test 4.5.2 Final System Test After preparing the trawl cable and before the final trawl unit assembly a system test should be conducted to insure correct operation of the FS 70 Trawl Monitoring System over the trawl cable.

  • Page 67: Mounting Catch Sensors

    FS 70 Operators Manual 974-24007001/3.0 FS 70 Installation, System Set-Up and Test Page 4.27 trawl unit housing are properly placed to avoid being pinched and possibly damaged. The top half of the trawl unit housing is then placed on top and the two halves are secured together with the bolts supplied.
  • Page 68 974-24007001/3.0 FS 70 Operators Manual Page 4.28 FS 70 Installation, System Set-Up and Test Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...
  • Page 69 FS 70 Operators Manual 974-24007001/3.0 Troubleshooting and Maintenance Page 5.1 PART 5 TROUBLESHOOTING AND MAINTENANCE TROUBLESHOOTING AND MAINTENANCE ..........5.3 ..................5.3 NTRODUCTIONS ..................5.3 YSTEM OVERVIEW 5.2.1 FS 70 System..................5.3 5.2.2 Trawl Cable Requirements..............5.3 & ................5.4 ANDLING MAINTENANCE 5.3.1 Wheelhouse Electronics.................
  • Page 70 974-24007001/3.0 FS 70 Operators Manual Page 5.2 Troubleshooting and Maintenance 5.8.3 Automatic Recordings ................5.16 5.8.4 File Transfer Procedures..............5.17 Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...

  • Page 71: Troubleshooting And Maintenance

    In addition to the above equipment, but not supplied by Simrad, the system requires a winch with slip-rings, and a trawl cable for connection of the FS trawl unit to the wheelhouse electronics.

  • Page 72: Handling & Maintenance

    The cables allowable closed loop resistance is 100 ohms. HANDLING & MAINTENANCE The most common causes of failures to the Simrad FS Trawl Monitoring system are: 1. Trawl cable and/or winch slip-ring problems, 2. Sonar head and sensor module connector and interconnect cable failures.

  • Page 73: Trawl Unit

    FS 70 Operators Manual 974-24007001/3.0 Troubleshooting and Maintenance Page 5.5 5.3.2 Trawl Unit The Trawl Unit is subjected to the harshest conditions and therefore proper handling and maintenance is crucial to ensure trouble free operation. 5.3.2.1 Handling Tips • Though the trawl unit electronics are ruggedized for the fishing environment mishandling or repeated impacts may result in damage to, or failure of, the electronic components.

  • Page 74: Connector Maintenance

    1. Wipe connectors clean of old grease and dirt with a lint free cloth. 2. Inspect the connector’s metal contacts and sealing surfaces for corrosion, wear or damage. If problems are found, return the unit to a qualified Simrad service facility for replacement of the connector! 3.

  • Page 75: Corrosion

    The winch slip-rings and trawl cable are the umbilical cord between the processor unit and trawl unit electronics, and are critical to the proper operation of the Simrad FS Trawl Monitoring system. Damaged, worn or poorly maintained cable or slip- rings will degrade the performance of the system and may cause or lead to a complete system failure.

  • Page 76: Monitoring System Performance

    Part 7 “Drawings”. MONITORING SYSTEM PERFORMANCE There are a number of tools available with the Simrad FS Trawl Monitoring system that allow its performance to be checked. When these tools are utilized as part of the regular maintenance they provide information about the state of the system and allow it to be monitored.

  • Page 77: Power Supply Meter Readings

    FS 70 Operators Manual 974-24007001/3.0 Troubleshooting and Maintenance Page 5.9 For the FS 70 system, the trawl cable and test cable are both connected to the 3-pin connector (“2-wire”) on the rear panel of the PWR/TTM unit. To install the test cable, disconnect the trawl cable and attach the test cable.

  • Page 78: Trawl Cable Gain

    974-24007001/3.0 FS 70 Operators Manual Page 5.10 Troubleshooting and Maintenance running on the test cable. If this value is higher than a previous value obtained on the test cable then the problem is likely with the trawl unit electronics. If the current readings are the same on test the cable as previously obtained, then the trawl cable and winch slip-rings should be checked.

  • Page 79: Troubleshooting

    TROUBLESHOOTING In the event the Simrad FS Trawl Monitoring system does not operate correctly care must be taken to properly diagnose the cause of the failure. Quite often the failure is thought to be with the FS electronics when the actual cause is due to the winch slip- rings, the interconnect cable or the trawl cable.

  • Page 80: Diagnosing Problem

    Power up the system and repeat step 1 and 2. Note! If a Simrad FS unit is diagnosed as being faulty, then the unit(s) should be returned to an authorized Simrad service center. ALL system performance results and a complete description of the problem should be supplied with the defective unit to assist in its repair.

  • Page 81: Testing Trawl Cable

    FS 70 Operators Manual 974-24007001/3.0 Troubleshooting and Maintenance Page 5.13 replace sonar head. − 2. Sonar head operates okay, but Check for telemetry errors. If none, pauses periodically - may not have then problem with sonar head or sensor module data processor unit.

  • Page 82: Cable Impedance

    974-24007001/3.0 FS 70 Operators Manual Page 5.14 Troubleshooting and Maintenance 5.5.3.1 Cable Impedance The use of a Meggar to check the impedance of the trawl cable may be the most useful test. It can be done with or without the slip-rings connected and readings should be taken between the cable’s two conductors and also from each conductor to the fishing vessels hull.

  • Page 83: Test For Water In Cable

    2 - 3 volts dc. SECTION 1 - CATCH SENSORS Refer to your Simrad FA701 or PI32 sensor operator and service manual. SECTION 2 - WINCH SLIP-RINGS AND TRAWL CABLE Refer to your Manufacture operator and installation manual.

  • Page 84: Manual Recordings

    974-24007001/3.0 FS 70 Operators Manual Page 5.16 Troubleshooting and Maintenance confirms that you have taken a picture and that it has been saved. The snapshot saved will be only of the active window on your display – either the vertical head or the sounder.
  • Page 85 FS 70 Operators Manual 974-24007001/3.0 Troubleshooting and Maintenance Page 5.17 5.8.4 File Transfer Procedures To access any of the files that have been saved go to the following directory in your system: C:\ programs\KML\FS70 VO1.70 You will see the folders for “diagnostic”, “LOGS” and “Record”. Your recordings files are saved as follows: Diagnostic folder: Any snapshots that you take...
  • Page 86 974-24007001/3.0 FS 70 Operators Manual Page 5.18 Troubleshooting and Maintenance Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...
  • Page 87 FS 70 Operators Manual 974-24007001/3.0 Drawings & Attachment Page 6.1 PART 6 DRAWINGS & ATTACHEMENTS DRAWINGS & ATTACHMENTS ..............6.3 LIST OF DRAWINGS & A ............6.3 TTACHMENTS Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...
  • Page 88 974-24007001/3.0 FS 70 Operators Manual Page 6.2 Drawings & Attachments Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...
  • Page 89 FS 70 Operators Manual 974-24007001/3.0 Drawings & Attachment Page 6.3 6. DRAWINGS & ATTACHMENTS LIST OF DRAWINGS & ATTACHMENTS The drawings below are included in the technical Information (P/N 974-24007902) which is included in this chapter. • Attachments Number Description FS 70 Trawl Monitoring Integrated System Configuration FS 70 40kHz or 70kHz Alternating Sounder Configuration •...
  • Page 90 Rack Integrated System Cabinet Monitor Monitor 30m.VGA Extender Cable c/w K & M, KB & M SIMRAD Power/TTM 30m.VGA Extender Cable 120 or 230 AC Power Input System Standard Equipments 3 U, 19" Rack Power/TTM c/w Front Test Cable Connection 120 or 230 AC Power 1 U, 19"...
  • Page 91 RS232 or USB Master (LF1) Wire FS70 Host Software (Winson) c/w FS70 Dongle SIMRAD POWER / TTM FS Power / TTM FS70 Host Software Features: V3.0 and greater firmware + Master/Slave Config Pitch/Roll presentation c/w LF1 telemetry set Standardize User Interface...
  • Page 92 974-24007001/3.0 FS 70 Operators Manual Page 6.6 Drawings & Attachments Kongsberg Mesotech Ltd. Port Coquitlam, BC - Canada...
  • Page 96 DWG. NO. ITEM PART NUMBER DESCRIPTION 974-80161000 1 1.0 CATCH HYDROPHONE CABLE 172-0069 LOWER SHELL 172-0070 UPPER SHELL "THIRD WIRE" 359-01200000 DOME INTERCONNECT CABLE 974-24240000 (SHOWN) FS 70 SONAR 974-40220000 SOUNDER TRANSDUCER 805-30022201 CATCH HYDROPHONE 359-01130000 CABLE STRAIN RELIEF 359-00750000 WEDGE SPACER 171-49080101 SHACKLE D 0.5", 316SS...
  • Page 97 DWG. NO. 974-80161000 2 1.0 "THIRD WIRE" SECTION B-B (SOUNDER INSTALLATION) SCALE 1 : 2 SECTION C-C SCALE 1 : 2.5 NOTES: 1. LUBRICATE FASTENERS WITH ANTISEIZE COMPOUND BOTTOM DETAIL D SCALE 1 : 2 DESCRIPTION DATE REVISIONS Kongsberg Mesotech Ltd. APPROVALS NAME DATE...
  • Page 98 DWG. NO. 974-80161000 3 1.0 CATCH HYDROPHONE CABLE 4-PIN WHIP SINGLE 6-PIN WHIP OPTION WITH 70kHz CATCH HYDROPHONE "THIRD WIRE" SOUNDER CABLE INTERCONNECT CABLE DESCRIPTION DATE REVISIONS Kongsberg Mesotech Ltd. APPROVALS NAME DATE PROPRIETARY NOTICE DRAWN 08/02/21 THIS DOCUMENT CONTAINS INFORMATION WHICH IS SOLE PROPERTY OF ASSEMBLY DRAWING - REVISED...
  • Page 99 DWG. NO. 974-80161000 4 1.0 CATCH HYDROPHONE CABLE 4-PIN WHIP DUAL 4-PIN / 6-PIN WHIP FORWARD LOOKING HYDROPHONE CABLE SOUNDER CABLE "THIRD WIRE" INTERCONNECT CABLE OPTION WITH 40kHz CATCH HYDROPHONE AND FORWARD LOOKING HYDROPHONE DESCRIPTION DATE REVISIONS Kongsberg Mesotech Ltd. APPROVALS NAME DATE...
