Quick Start

To attach the LCD monitor to your system, follow these instructions:
NOTE: Make sure to read "Recommended Use" before installation.
In order to display the maximum resolution, a video card that can output a resolution of 2560 x 1600 is needed.
The monitor must be installed or carried by two or more people.
1. Turn off the power to your computer.

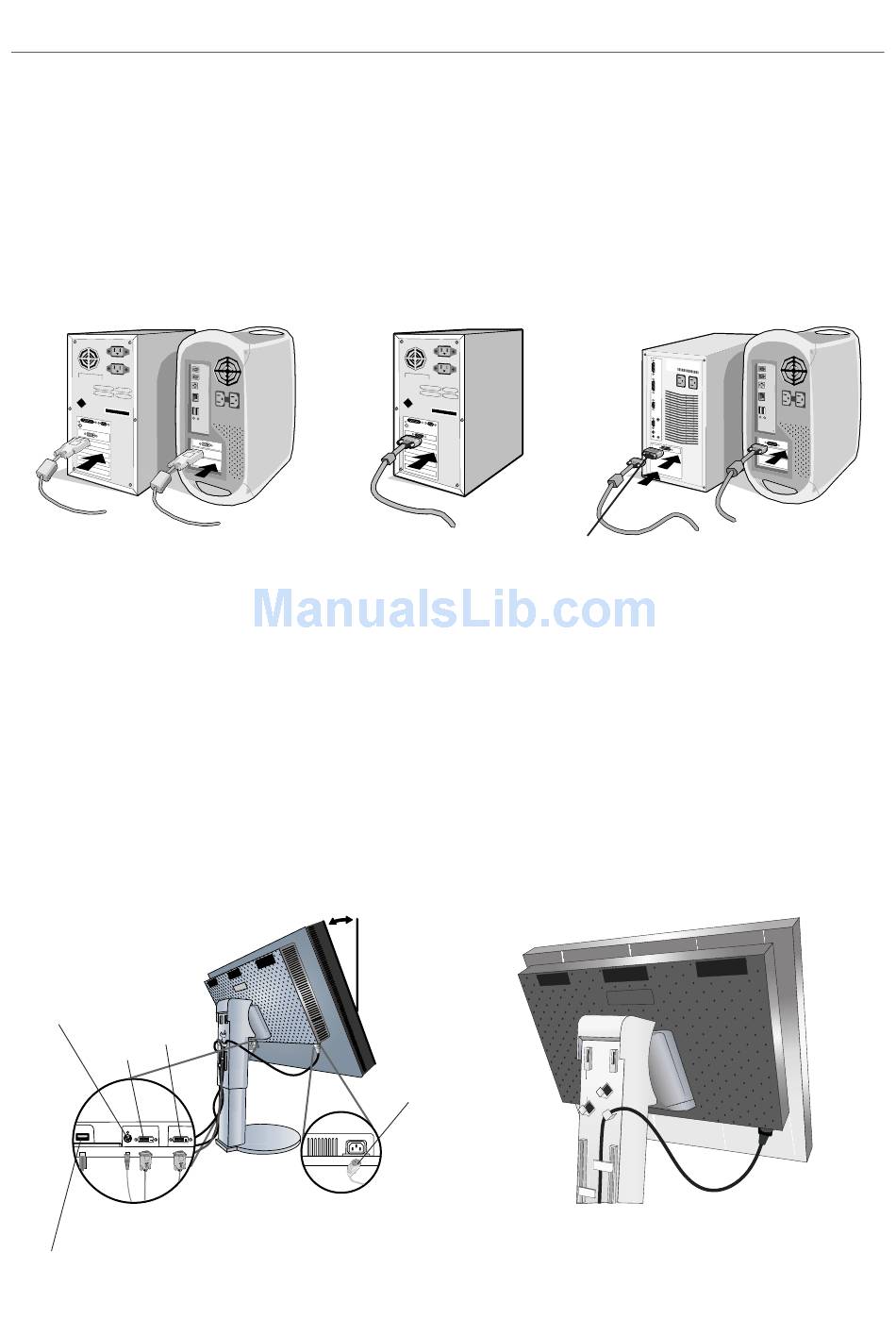

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your
system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable (not included) to the connector of
the display card in your system (Figure A.2).
For the MAC: Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to
the Macintosh cable adapter (Figure B.1).
Figure A.1
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
3. Place hands on each side of the monitor to tilt the LCD panel to a 30˚ angle and lift up to the highest position (Figure C.1).
4. Connect all cables to the appropriate connectors (Figure C.1).
NOTE: Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module
and/or shorten the module's life.
5. To keep the cables neatly organized, place them into the cable management system that is built into the stand.
Place the power cable into the specific hooks as indicated (Figure C.2).
Place the DVI cable and the 15-pin mini D-Sub to DVI-A cable (not included) into the hooks as indicated (Figure C.3).
When using the monitor in Portrait mode, place the DVI cable and the 15-pin mini D-Sub to DVI-A cable (not included) into
the hooks as indicated (Figure C.4).
6. Make sure all cables are resting flat against the stand (Figure C.3).
Please check Tilt, Rise and Lower monitor screen and screen rotation when you manage cables.
DC-OUT
NEC optional product
attachment.
Do not use this connector
unless specified.
DVI-I
DVI-D
SENSOR PORT
For optional external sensor used for self
calibration and copy calibration (Page 25).
30˚ Tilt
Figure C.1
Figure A.2
Power cord
English-6
Macintosh
Figure B.1
Cable Adapter
(not included)
Figure C.2
