SEF-1850
SEF-1850-8
EYESAVER
®
Combination Faucet
92-SEF-1850-R5
Crescent
Wrench
Flat Head
Screwdriver
The supply line for this unit shall provide an
uninterruptible supply of flushing fluid at a minimum
of 30 psi flowing pressure. If shut off valves are
installed in the supply line of the eyewash, provisions
shall be made to prevent unauthorized shut off.
ANSI Z358.1 requires that all emergency equipment
shall be tested weekly to verify proper operation and
inspected annually to assure conformance with
ANSI Z358.1 requirements. Be sure to read
instructions thoroughly before beginning installation.
Do not overtighten any connections or damage may
occur.
Cover your drain to prevent loss of parts. Always
wear eye protection.
®
Keep the EYESAVER faucet looking new by cleaning
it periodically with a soft cloth. Avoid abrasive
cleaners, steel wool, and harsh chemicals as these
will dull the finish and void your warranty.

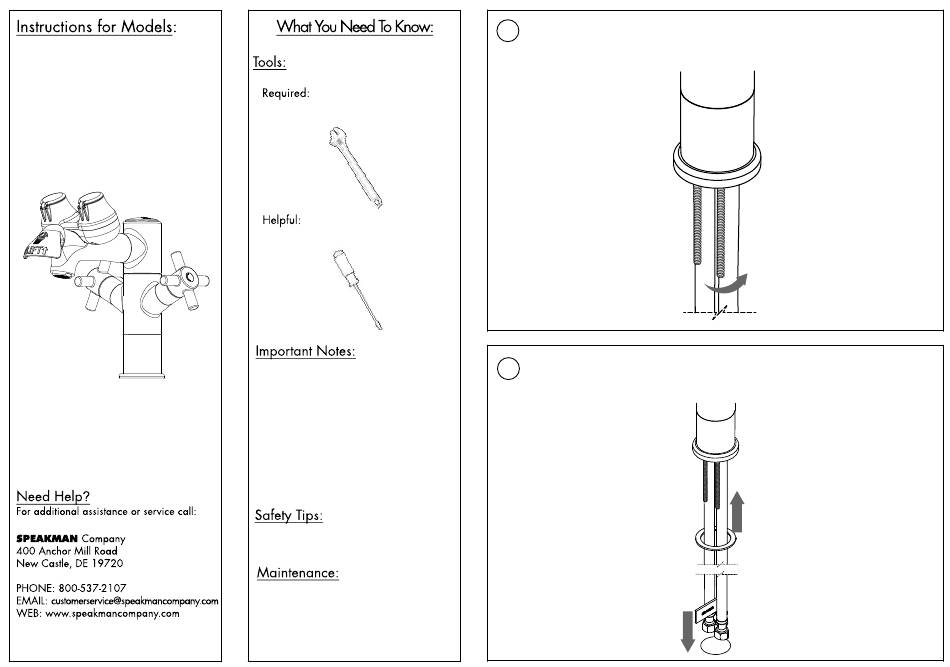

Turn off water supply. Verify diameter of hole in countertop is a
1
minimum of 1-1/4". Install mounting studs into base of faucet.
Install bottom washer over hoses and slide up to meet the base of
2
the faucet. Place hoses through hole in countertop/sink one at a time.
Place faucet with mounting studs through hole.
Advertisement
Related Manuals for Speakman EYESAVER SEF-1850
Summary of Contents for Speakman EYESAVER SEF-1850
- Page 1 Turn off water supply. Verify diameter of hole in countertop is a minimum of 1-1/4”. Install mounting studs into base of faucet. SEF-1850 SEF-1850-8 EYESAVER ® Crescent Wrench Combination Faucet Flat Head Screwdriver Install bottom washer over hoses and slide up to meet the base of The supply line for this unit shall provide an the faucet.
- Page 2 Locate the other blue hose attached to faucet, and connect it to the “F” From beneath countertop, slide the rubber mounting washer, then port on the the supply tee. Tighten. brass mounting washer over the mounting studs. Thread two (2) brass nuts onto mounting studs.
- Page 3 Connect the short blue hose from the tee to the cold supply valve, and Before installing aerator, turn on both hot and cold faucet the red (hot) supply hose to the hot supply valve. handles. This will clear out any debris from the supply lines. COLD Close both hot and cold faucet handles.
- Page 4 Eyewash Flow Data NOTE: Before testing, you must remove tape from Eyewash Caps. Lift eyewash handle to activate the eyewash and test for proper operation. See chart and notes at right. The faucet spout was designed to swivel from left to right. If a non-swivel spout is preferred, remove top cover from body.
- Page 5 ROUGH-IN MEASUREMENTS FRONT VIEW ALTERNATE SEF-1850 SIDE VIEW (LESS HOSES) EYEWASH 130° 9" SUPPLY 5-1/2" 4-1/2"in 4-7/8" 2-5/8" 6" MIN FROM WALL OR OBSTRUCTION 65° 8-7/8" 8" 6-3/8" 12° 5-1/8" 7-5/8" 5-1/4" 1-1/4" MINIMUM HOLE SIZE 1-1/4" 2-1/4" 2" MAX. DECK HEIGHT MINIMUM HOLE SIZE 20”...
