Contents:
Lower Mounting Bracket
Upper Mounting Bracket
Nut Plate
Threaded Ball Stud
Nyloc Nut
M6 x 18 Bolt
M6 Nyloc Nut
M6 Washer
M5 x 16 Bolt
M5 Washer
Struts
Rubber Gaskets

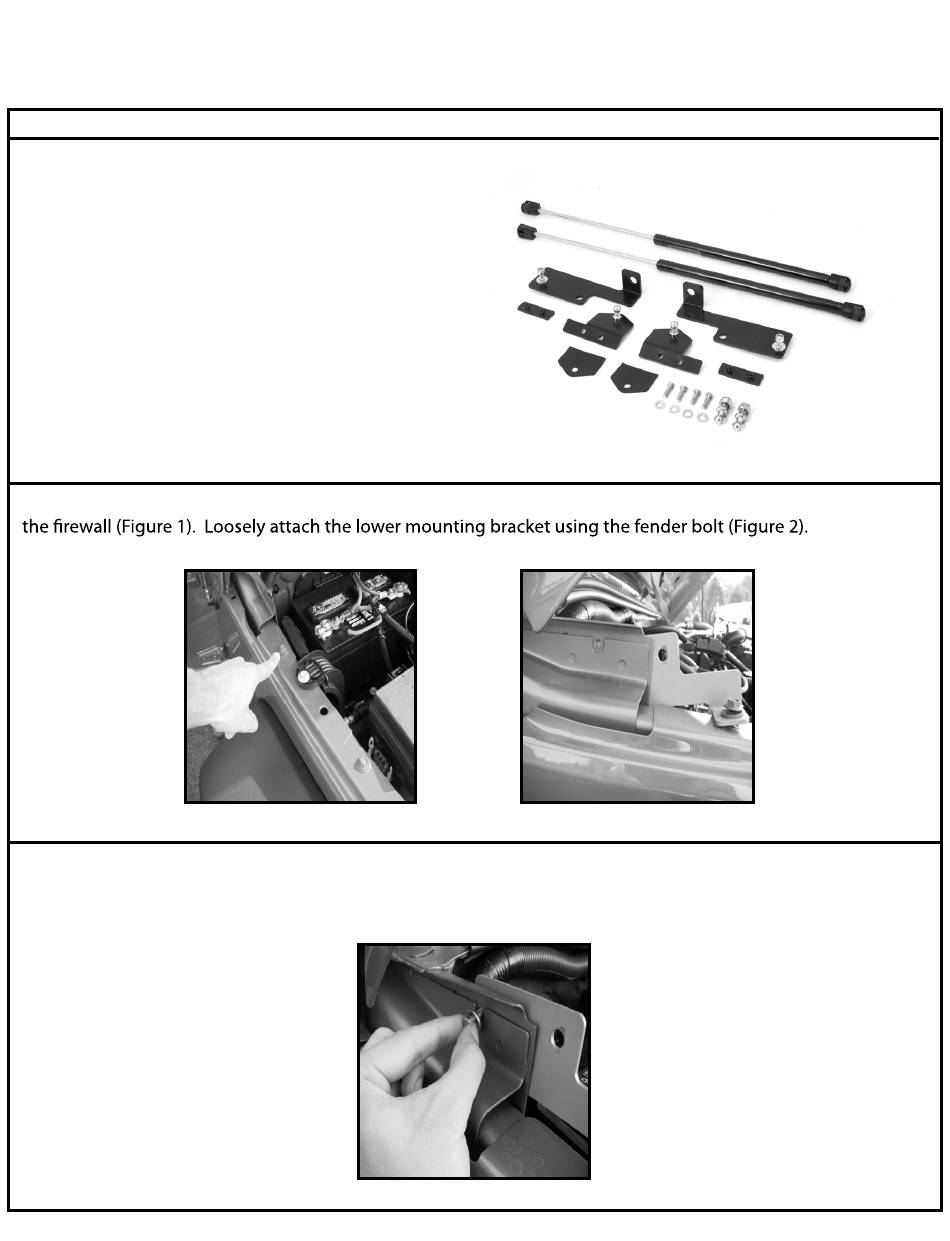

1.
Place the hood in the open position using factory hood prop. Remove the 10mm fender bolt closest to
2.
Insert supplied M6 bolt and M6 washer through preexisting hole in the sheet metal behind the fender
bolt (Figure 3). Rotate bracket up and push bolt through the lower mounting bracket. Place another M6 washer
over bolt and thread on the M6 nut. Fully tighten both the fender bolt and the M6 bolt, washer, and nut
assembly.
9/23/10
JK Hood Prop
Quantity:
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(4)
(4)
(4)
(2)
(2)
Figure 1.
Figure 3.
Page 1 of 2
Figure 2.
11252.51
Advertisement
Related Manuals for Rugged Ridge 11252.51
Summary of Contents for Rugged Ridge 11252.51
- Page 1 11252.51 JK Hood Prop Contents: Quantity: Lower Mounting Bracket Upper Mounting Bracket Nut Plate Threaded Ball Stud Nyloc Nut M6 x 18 Bolt M6 Nyloc Nut M6 Washer M5 x 16 Bolt M5 Washer Struts Rubber Gaskets Place the hood in the open position using factory hood prop. Remove the 10mm fender bolt closest to Figure 1.
- Page 2 11252.51 Mount the threaded ball stud to the lower mounting bracket with the ball facing the engine compartment. Thread on the nyloc nut and tighten completely using a 13mm socket and boxed wrench (Figure 4). Figure 4. Remove the backing tape from the rubber gasket. Attach the gasket to the back of the upper mounting bracket.
