INSTALLATION INSTRUCTIONS
ROADMASTER, Inc.
6110 NE 127th Ave.
14
ITEM
QTY

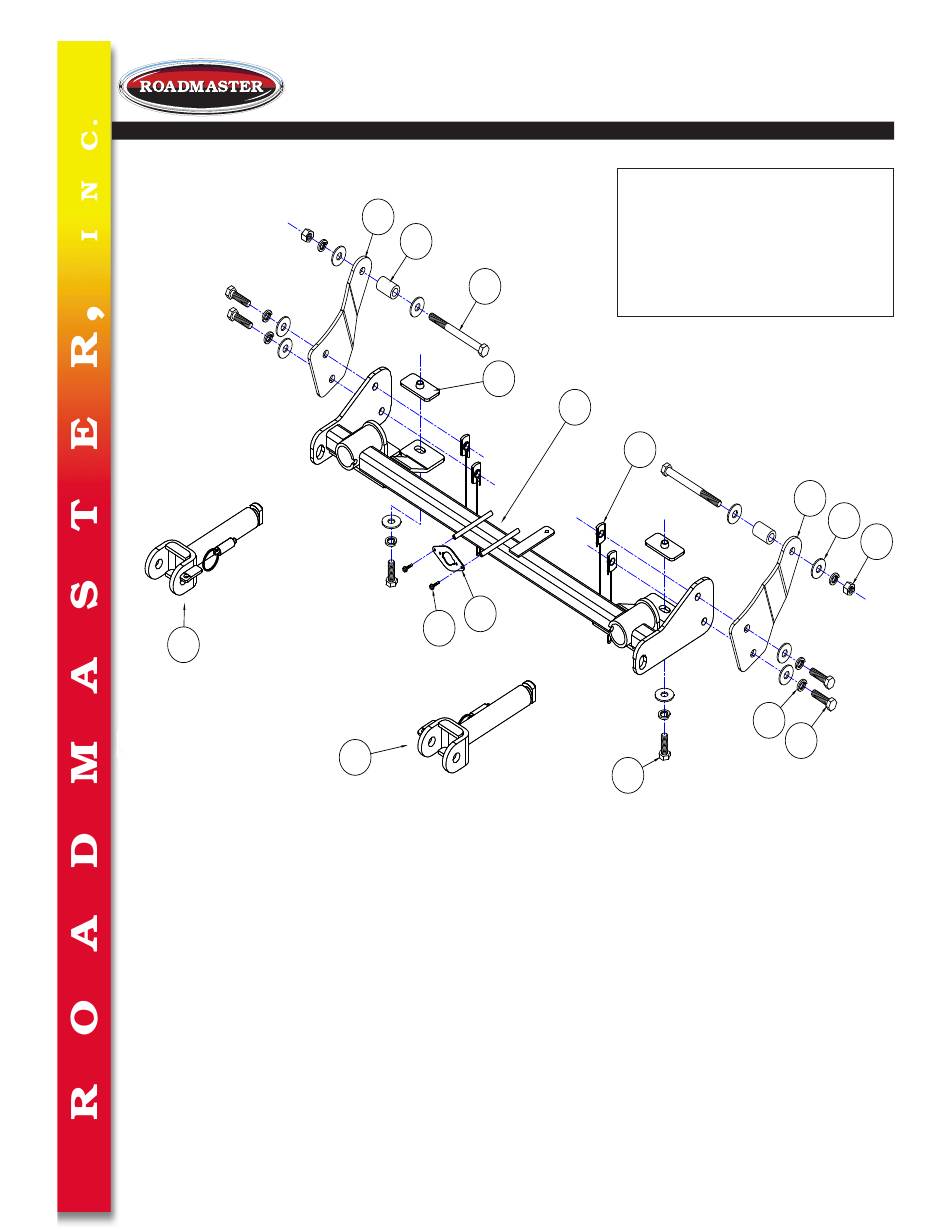

1........... 2 ..........1/2" x 1 1/2" BOLT .............................................................350095-00
2........... 4 ..........1/2" x 1 3/4" BOLT .............................................................350096-00
3........... 2 ..........1/2" x 5 1/2" BOLT .............................................................350108-00
4........... 2 ..........1/2" NUT ............................................................................350258-00
5........... 10 ........1/2" FLAT WASHER ..........................................................350308-00
6........... 8 ..........1/2" LOCK WASHER ........................................................350309-00
7........... 2 ..........#10 x 3/4" SELF DRILLING SCREW ................................350247-35
8........... 2 ..........1" O.D. x 1 1/2" TUBE SPACER .......................................A-002898
9........... 2 ..........1 1/2" x 3" THREADED BACKING PLATE ........................A-003079
10......... 1 ..........WIRE PLUG PLATE ..........................................................A-003801
11 ......... 1 ..........DRIVER SIDE MOUNTING PLATE ..................................B-002160
12......... 1 ..........PASSENGER SIDE MOUNTING PLATE ..........................B-002161
13......... 1 ..........DRIVER SIDE ARM ..........................................................C-002383
14......... 1 ..........PASSENGER SIDE ARM..................................................C-002384
15......... 1 ..........MAIN RECEIVER ..............................................................C-002725
16......... 4 ..........1/2" TAB WELDNUT WITH 6" ROD ..................................C-002870
BASEPLATE KIT
Vancouver, WA 98682
12
8
3
10
7
13
NAME
360-896-0407
fax 360-735-9300
Note: this bracket will not accom-
modate the Guardian rock shield,
some models of the Tow Defender,
or the StowMaster and StowMas-
ter All Terrain tow bars.
9
15
16
1
KIT# 521448-5
09/28/18
KS
www.roadmasterinc.com
Important
11
5
4
6
2
PART #
