ROADMASTER, Inc.
6110 NE 127th Ave.
14
ITEM
QTY
NAME
1........... 4 ..........1/2" x 1 1/4" BOLT ........................................................................... 350094-00
2........... 4 ..........1/2" x 2" BOLT ................................................................................. 350097-00
3........... 4 ..........1/2" FLAT WASHER ........................................................................ 350308-00
4........... 12 ........1/2" LOCK WASHER ...................................................................... 350309-00
5........... 12 ........1/2" HEX NUT ................................................................................. 350258-00
6........... 2 ..........1/2" x 3 1/2" x 5 1/2" U-BOLT .......................................................... 357021-50
7........... 4 ..........3/8" x 3/4" BOLT .............................................................................. 350053-00
8........... 4 ..........3/8" LOCK WASHER ...................................................................... 350305-00
9........... 2 ..........#10 x 3/4" SELF DRILLING SCREW .............................................. 350247-35
10......... 4 ..........3/16" x 1" x 2" BACKING PLATE..................................................... A-000842
11 ......... 1 ..........WIRE PLUG PLATE ........................................................................ A-003801
12......... 2 ..........REAR MOUNTING PLATE ............................................................. A-005451
13......... 1 ..........DRIVER SIDE ARM ........................................................................ C-002383
14......... 1 ..........PASSENGER SIDE ARM................................................................ C-002384
15......... 1 ..........MAIN RECEIVER ............................................................................ C-002698
16......... 1 ..........DRIVER SIDE REAR BRACKET .................................................... C-003134
17......... 1 ..........PASSENGER SIDE REAR BRACKET............................................ C-003135
18......... 2 ..........3/8" WELDNUT WITH 10" ROD ...................................................... C-003138

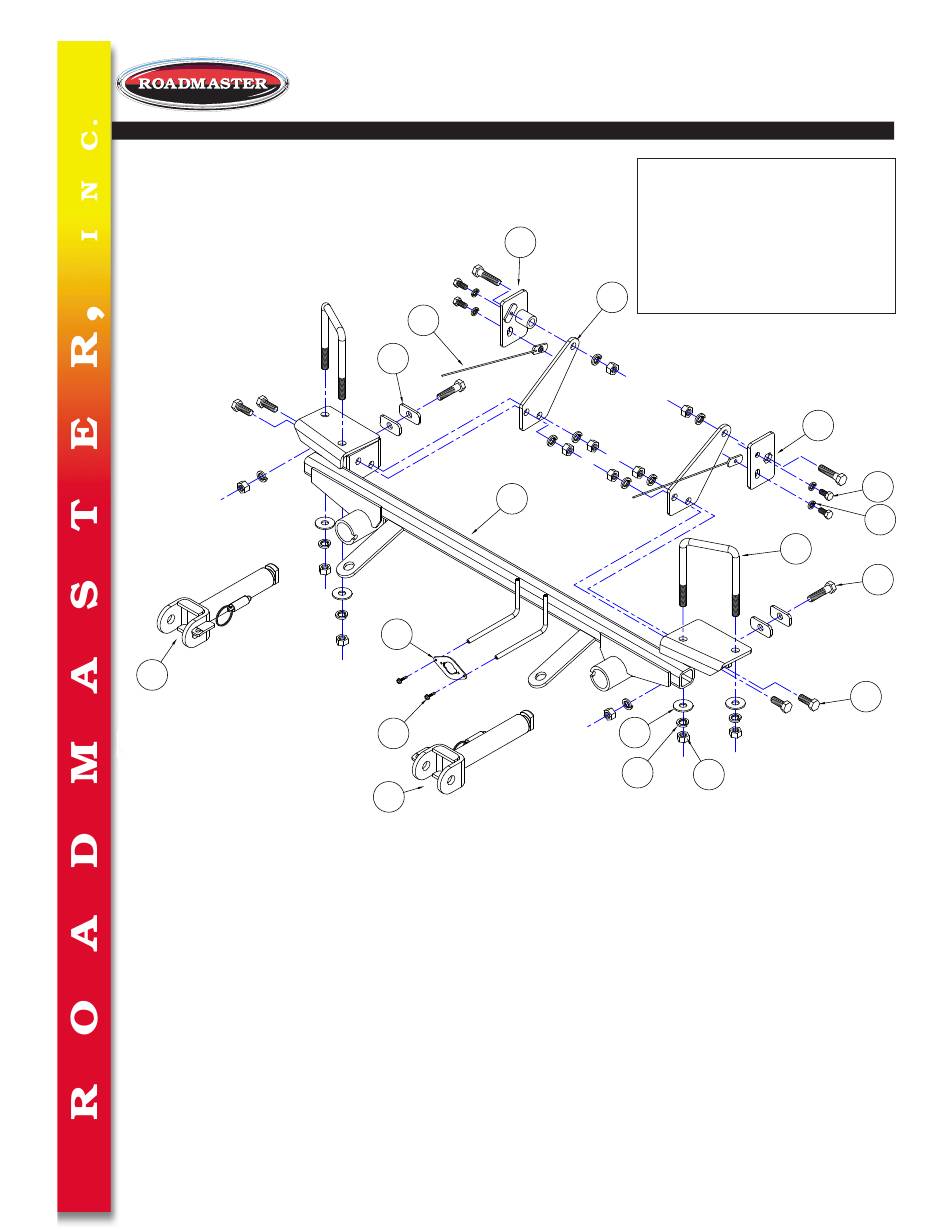

BASEPLATE KIT
INSTALLATION INSTRUCTIONS
Vancouver, WA 98682
18
10
11
9
13
360-896-0407
fax 360-735-9300
Note: this bracket will not ac-
commodate the Guardian rock
shield, some models of the Tow
17
Defender, or the StowMaster
and StowMaster All Terrain tow
bars.
12
15
3
4
KIT# 522114-5
03/20/17
KS
www.roadmasterinc.com
Important
16
7
8
6
2
1
5
PART #
