ROADMASTER, Inc.
6110 NE 127th Ave.
Ratchets
8, 10, 13, and 17mm sockets
18mm wrench
9/16", 3/4" sockets and wrenches
7
3
17

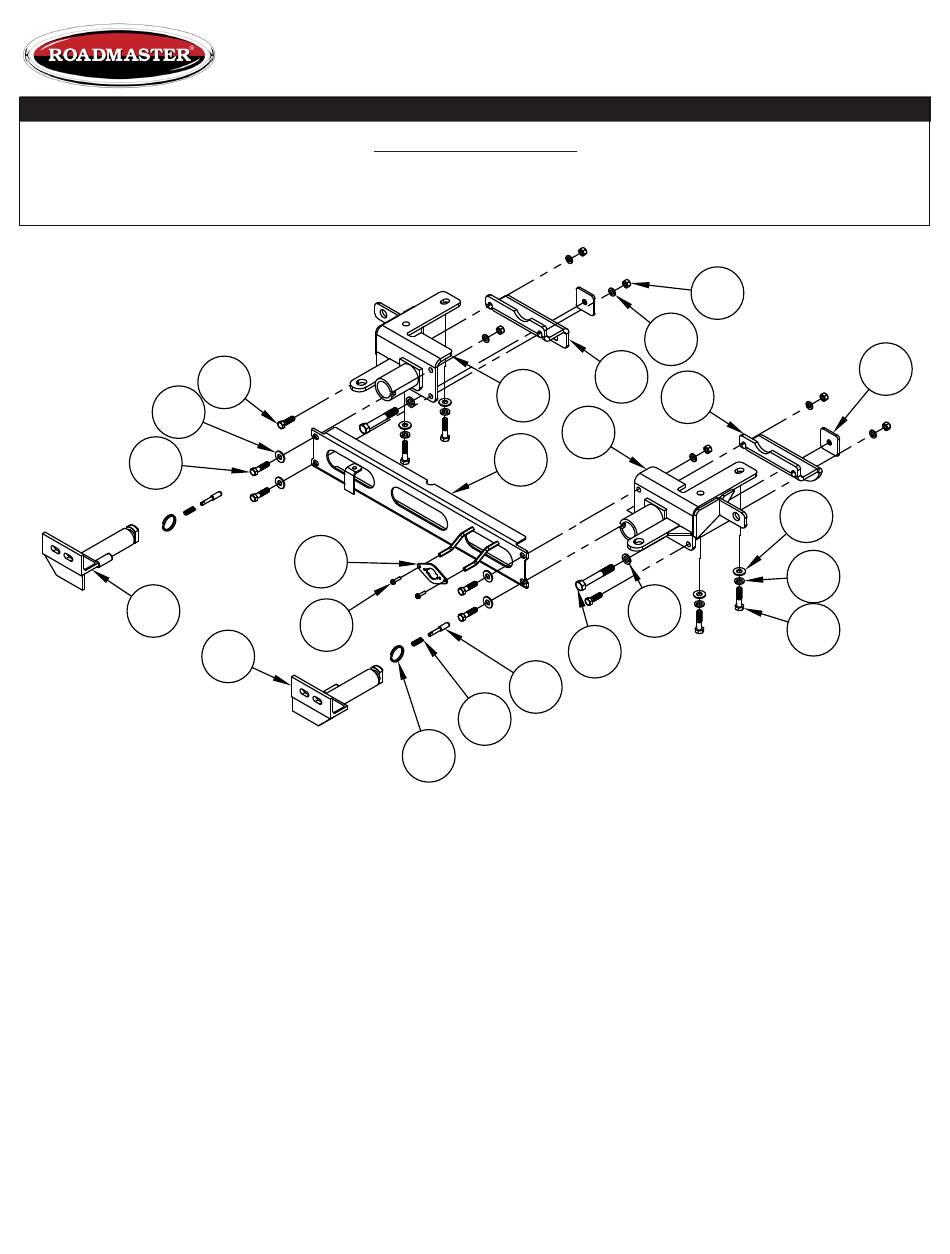

ITEM QTY
1............ 2 ..........SPRING ................................................................................ 200146-00
2............ 2 ..........3/8" x 1 1/4" BOLT ................................................................ 350056-00
3............ 4 ..........3/8" x 1 1/2" BOLT ................................................................ 350057-00
4............ 2 ..........1/2" x 3 1/2" BOLT ................................................................ 350103-00
5............ 2 ..........#10 x 3/4" SELF DRILLING SCREW ................................... 350247-35
6............ 6 ..........3/8" HEX NUT ....................................................................... 350254-00
7............ 8 ..........3/8" FLAT WASHER ............................................................. 350304-00
8............ 6 ..........3/8" LOCK WASHER ............................................................ 350305-00
9............ 2 ..........1/2" LOCK WASHER ............................................................ 350309-00
10.......... 2 ..........RING ..................................................................................... 350520-00
11 .......... 4 ..........M10 LOCK WASHER ........................................................... 355715-00
12.......... 4 ..........M10 x 1.5 x 35 mm BOLT ..................................................... 356102-00
13.......... 2 ..........LOCK PIN ............................................................................. A000008
14.......... 2 ..........2" x 2" THREADED BACKING PLATE ................................. A003080
15.......... 1 ..........WIRE PLUG PLATE ............................................................. A003801
16.......... 1 ..........DRIVER SIDE ARM ............................................................. C003592
17.......... 1 ..........PASSENGER SIDE ARM ..................................................... C003593
18.......... 1 ..........DRIVER SIDE RECEIVER ................................................... C003594
19.......... 1 ..........PASSENGER SIDE RECEIVER .......................................... C003595
20.......... 1 ..........DRIVER SIDE BRACE ......................................................... C003596
21.......... 1 ..........PASSENGER SIDE BRACE ................................................ C003597
22.......... 1 ..........WIRE PLUG BRACKET ....................................................... C003598
23.......... 4 ..........PLASTIC POP RIVET .......................................................... 350431-00
BASEPLATE KIT
INSTALLATION INSTRUCTIONS
Vancouver, WA 98682
Recommended Tools
1/4", 17/32" bits and drill
36" straight edge ruler
Needlenose pliers
2
15
5
16
DESCRIPTION
360-896-0407
19
18
22
4
13
1
10
KIT# 522206-4
fax 360-735-9300
www.roadmasterinc.com
Reciprocating saw
Torque wrench
Loctite© Red or Blue
Panel tool
6
8
21
20
9
PART NUMBER
01/27/21
KS
14
7
11
12
pg 1
Advertisement
Related Manuals for Roadmaster 522206-4
Summary of Contents for Roadmaster 522206-4
- Page 1 BASEPLATE KIT KIT# 522206-4 01/27/21 INSTALLATION INSTRUCTIONS ROADMASTER, Inc. 6110 NE 127th Ave. Vancouver, WA 98682 360-896-0407 fax 360-735-9300 www.roadmasterinc.com Recommended Tools Ratchets Reciprocating saw 8, 10, 13, and 17mm sockets Torque wrench 1/4", 17/32" bits and drill 18mm wrench Loctite©...
- Page 2 If you must use a receiver the proper procedure(s) to prepare the vehicle for towing. Some • This kit is designed for use with ROADMASTER tow bars and ROAD- vehicles must be equipped with a transmission lube pump, an axle extension or drop hitch to tow, it will reduce your receiver’s...
- Page 3 All illustrations and specifications contained herein are based on the latest information available at the time of publication approval. ROADMASTER, INC. reserves the right to make changes at any time without notice in material, specification and models or to discontinue models.
- Page 4 All illustrations and specifications contained herein are based on the latest information available at the time of publication approval. ROADMASTER, INC. reserves the right to make changes at any time without notice in material, specification and models or to discontinue models.
- Page 5 All illustrations and specifications contained herein are based on the latest information available at the time of publication approval. ROADMASTER, INC. reserves the right to make changes at any time without notice in material, specification and models or to discontinue models.
- Page 6 BASEPLATE KIT KIT# 522206-4 01/27/21 INSTALLATION INSTRUCTIONS ROADMASTER, Inc. 6110 NE 127th Ave. Vancouver, WA 98682 360-896-0407 fax 360-735-9300 www.roadmasterinc.com Fig.R Fig.S 15. Replace the 13mm bolt you removed in step 13 (Fig.R). Do not fully tighten this bolt down yet, as micro adjustments may be necessary in step 17.
- Page 7 All illustrations and specifications contained herein are based on the latest information available at the time of publication approval. ROADMASTER, INC. reserves the right to make changes at any time without notice in material, specification and models or to discontinue models.
-
Page 8: Bolt Torque Requirements
BOLT TORQUE REQUIREMENTS Note: The torque values represented below are intended as general guidelines. Torque requirements for specific applications may vary. Roadmaster does not warrant this information to be accurate for all applications and disclaims all liability for any claims or damages which may result from its use.
