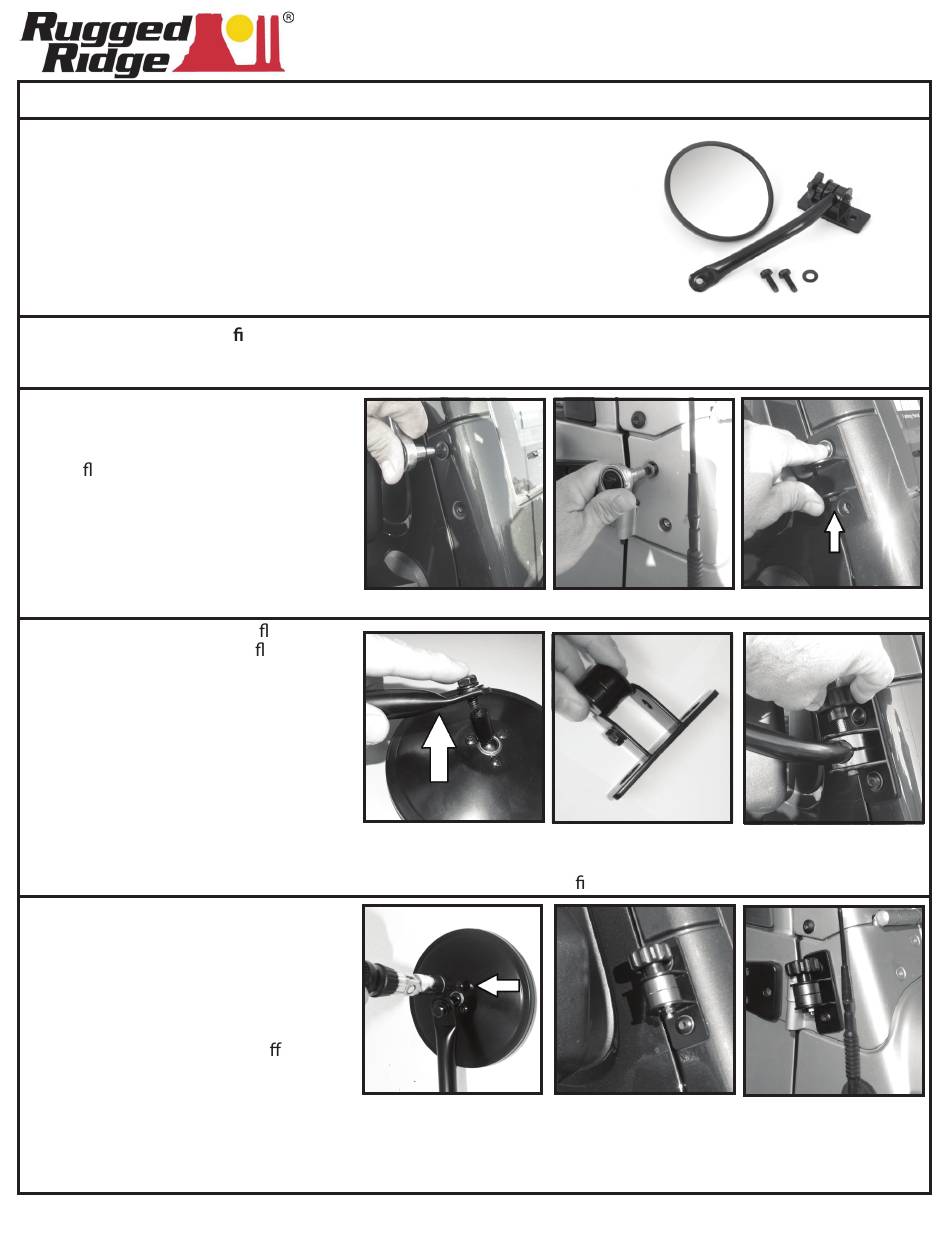

Rugged Ridge 11026.11 Manual

Jeep® Mirror Replacement Kit ( Wrangler TJ - JK)
HARDWARE NOTE: (2) New 5/16" bolts have been supplied for TJ-LJ
applications. JKs will reuse factory hardware.
Item List:
(1) 6" Round Mirror
(1) M8 Flat Washer
(1) Mounting Bracket (1) Knob
(1) Billet Bushing
NOTE: This mirror kit ts both passenger and driver side. The mirror arm has two sets of holes for
mounting on either side of vehicle. Disassemble mirror arm from mounting bracket before
you begin so arm can be properly positioned for installation by using the correct hole locations .
Step 1. Using T40 torx wrench remove
two upper windshield bracket
bolts (JK). For TJ remove two
ush mount torx head bolts just
in front of door hinge (Pic 1-2)
TJ's will use new 5/16" bolts.
Step 2. Install mounting bracket with
welded nut facing down.
(pic.3). Tighten bolts.
Step 3. Attach mirror head to at side
of arm using M8 bolt, at
washer and lock washer.(pic.4)
Step 4. Slide bushing on to arm. Arms
have 4 alignment holes for
universal installation (left/right).
Rotate arm to match passenger or
drivers side application (pic.5).
Step 5. Install arm into mounting
bracket. Open doors to check
clearance to mirror.
Tighten knob (pic.6)
NOTE: Arms have two sets of mounting holes. The arms are drilled to t either side of the vehicle.
Step 6. Adjust mirror head into desired
position. Tighten screws. DO
NOT over tighten. Mirror head
should be tight but able to be
adjusted if needed (pic.7).
NOTE: TJ applications are designed
to be used with doors o . Some
visibility on passenger side will
be blocked if used with doors.
Step 7. When doors are reinstalled
remove mirror arm from bracket.
Place bushings back into arm.
Tighten knob. (pic.8-9)
Rev (4) 6/02/2011
P/N: 11026.11 - Stainless Steel
(1) M8 Bolt
(1) M8 Lock Washer (2) 5/16" bolt
(1) Mirror Arm
Copyright Omix-Ada 2011
11025.11 - Black
(1) Foam Pad
pic.1
pic.4
pic.7
Page 1
11026.10 (PAIR)
11025.10 (PAIR)
pic.2
pic.5
JK Install TJ-LJ Install
pic.8
pic.3
pic.6
pic.9
