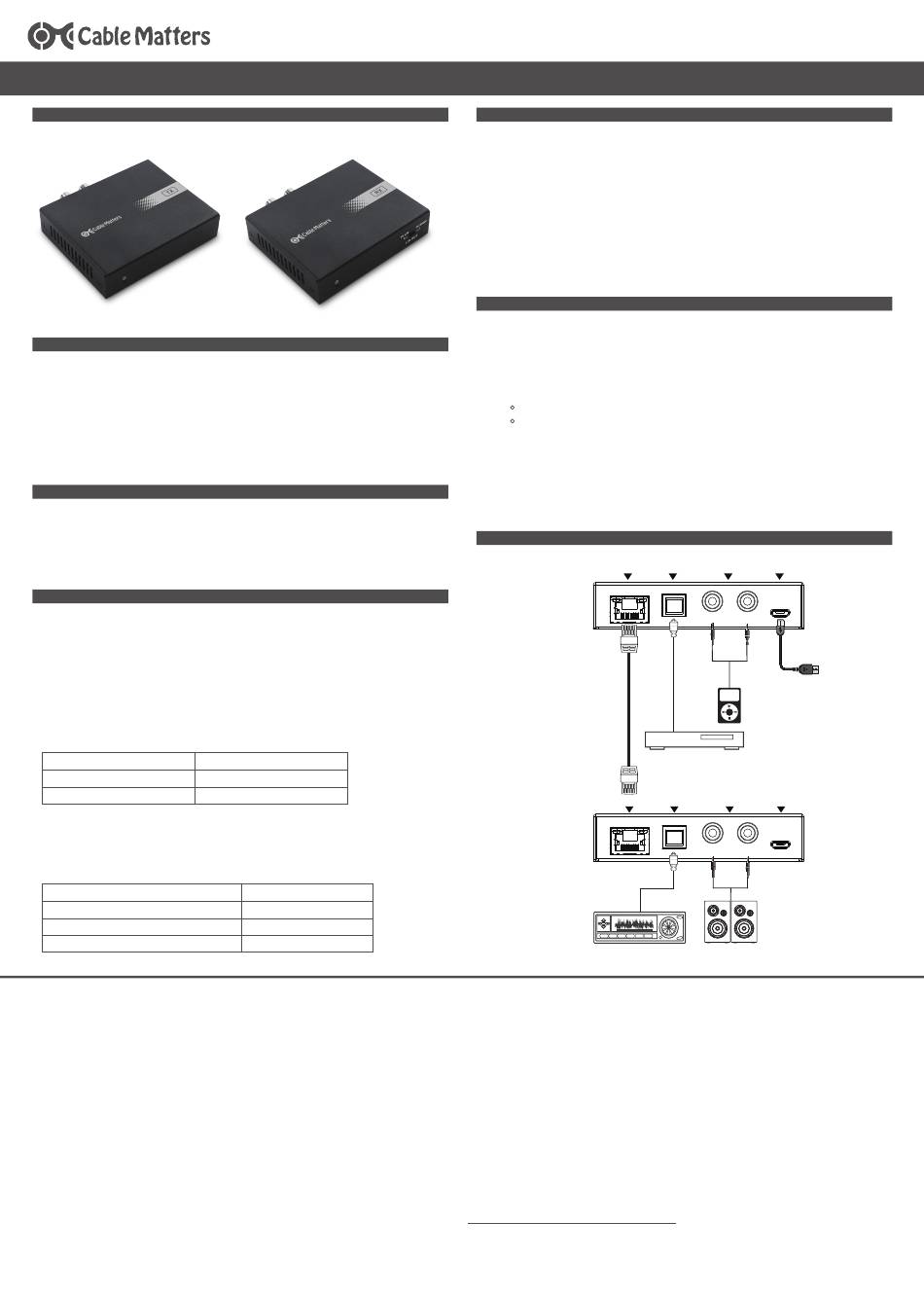

cable matters 500113 Manual

Product Picture
Product Features
• Extend a digital optical or analog audio connection up to 990 feet via Ethernet.
• Built-in digital-to-analog converter (DAC) converts digital Toslink audio into an
analog audio signal for direct connection to speakers or older equipment.
• PoC support powers both the transmitter and receiver with one power adapter.
• The audio extender supports stereo audio and popular digital audio formats,
including Dolby Digital and 5.1 surround sound.
• This audio extender is ideal for connecting a television or media player to an
A/V receiver, amplifier, or directly to speakers.
Package Contents
1x Audio extender transmitter
1x Audio extender receiver
1x USB power adapter
1x USB-A to micro USB cable
1x User manual
Installation Instructions
To install the audio extender:
1) Power off all devices.
2) Connect the transmitter to the source device with a Toslink cable or an analog
audio RCA cable.
3) Connect the transmitter to the receiver with an Ethernet cable.
4) Connect the receiver to the audio output device with a Toslink cable or an
analog audio RCA cable.
5) If you connected the receiver to an audio output device with an analog audio
RCA cable, select the correct L/R OUT setting on the receiver using the
selector switch. Refer to the chart below for the correct switch setting.
Transmitter connection Receiver switch setting
Toslink cable TX SPDIF
Analog audio RCA cable TX L/R
6) Connect the transmitter or receiver to a USB charger with a micro USB cable,
then power on all devices.
7) Configure the audio sample rate on the source device to match the supported
Ethernet cable distance. Refer to the chart below for the correct audio sample
rate setting.
Maximum Ethernet cable length
330 feet
495 feet
990 feet
Copyright and Trademarks
Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other
trademarks are the property of their respective owners.
Limitation of Liability
In no event shall Cable Matters Inc. (including their officers, directors, employees or agents) be liable for any damages (whether direct or indirect, special,
punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of, or related to the use of this product
exceeding the actual price paid for the product (as allowed by state law).
Warranty Information
This product is backed by a limited one-year warranty. The warranty covers parts and labor costs only. Cable Matters does not warrant its products from
defects or damages arising from misuse, abuse, or normal wear.
Customer Support and Contact Information
Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions.
Digital & Analog Audio Extender
Audio sample rate
192 kHz
96 kHz
48 kHz
Email us with any questions at support@cablematters.com.
www.cablematters.com
Troubleshooting Tips
• If audio playback is noisy or stutters, you must set the source device's audio
sample rate to the correct setting. This setting is based on the length of the
connected Ethernet cable. Refer to the chart in installation step 7 for the
correct sample rate setting.
• If you hear no audio on an audio output device connected to the receiver via an
analog audio RCA cable, make sure the L/R OUT selector switch on the receiver
is set correctly. Refer to the chart in installation step 5 for the correct receiver
switch setting.
• If you hear no audio when connecting the transmitter via a Toslink cable, make
sure digital optical audio output is enabled on your source device.
• Use at least a Cat5E cable to connect the transmitter to the receiver.
Technical Specifications
• Transmitter ports: 1x SPDIF IN, 1x L/R IN, 1x CAT OUT (RJ-45),
1x DC 5V (Micro USB)
• Receiver ports: 1x SPDIF OUT, 1x L/R OUT, 1x CAT IN (RJ-45),
1x DC 5V (Micro USB)
• LED: Power LED (transmitter and receiver)
• Supported audio formats:
Optical: LPCM2.0, LPCM5.1, Dolby Digital 2/5.1 Channel, DTS
Analog: PCM 2.0
• Supported sample rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 176.4 kHz, and
192 kHz up to 24-bit resolution
• Maximum Ethernet cable distance: 330 ft (192 kHz), 495 feet (96 kHz),
• Product dimensions: 90mm x 72mm x 20mm, 174g
• Power input: DC 5V/1A, 1.5W
Connection Diagram
CAT OUT
Transmitter
CAT5E/6 Cable
DVD or Blu-ray Player
CAT IN SPDIF OUT
Receiver
Amplifier
990 feet (48 kHz)
SPDIF IN L/R IN DC 5V
R L
USB Power Cable
MP3
L/R OUT
DC 5V
R L
2.0 Speakers
500113
