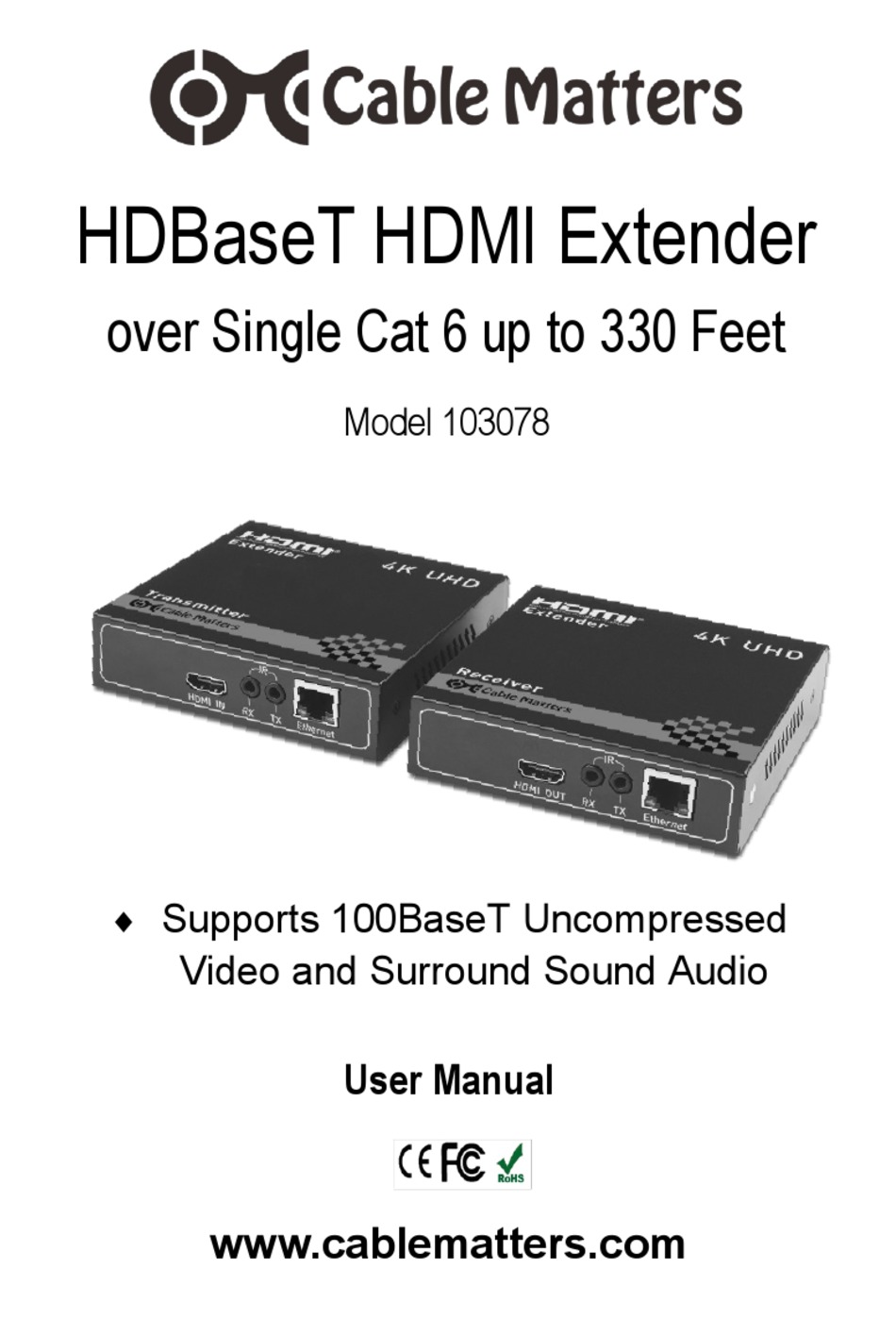

- Page 1 HDBaseT HDMI Extender over Single Cat 6 up to 330 Feet Model 103078 Supports 100BaseT Uncompressed Video and Surround Sound Audio User Manual www.cablematters.com...
-
Page 2: Table Of Contents
HDBaseT HDMI Extender Table of Contents 1. INTRODUCTION ............1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description ............2 2.3 Product Features 3. CONNECTION AND OPERATION 3.1 Installation Checklist ............3 3.2 Front Panel Connections - Transmitter 3.3 Rear Panel Connections - Transmitter ....... -
Page 3: Introduction
1.2 Copyright and Trademarks Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. 1.3 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Product Description
HDBaseT HDMI Extender 2.2 Product Description The Cable Matters® HDBaseT HDMI Extender over Cat 6 connects devices with HDMI up to 330 Feet. One cable transmits video, audio, Ethernet, and control signals using HDBaseT technology. 2.3 Product Features Connect devices with HDMI up to 330 feet apart over a Cat 6 cable ... -
Page 5: Connection And Operation
HDBaseT HDMI Extender 3. CONNECTION AND OPERATION 3.1 Installation Checklist Please review these steps before installing the HDMI Extender Power-off the source and display equipment before connecting Extenders must be located within 3.7 feet of an electrical outlet Recommend max total distance for HDMI cables (in/out) is 20 feet ... -
Page 6: Rear Panel Connections - Transmitter
HDBaseT HDMI Extender 3.3 Rear Panel Connections - Transmitter 1) RS232: Female DB-9 serial port connects an RS-232 controller 2) Link: Connect a Cat 6 cable with 568B wiring. Green LED Link status indicator verifies a live connection 3) DC/5V: AC power adapter port. Red LED confirms power. 3.4 Front Panel Connections - Receiver 1) HDMI OUT: Connect the HMDI output display cable 2) IR RX/TX: Connect the IR Receiver and Transmitter cables to RX and... -
Page 7: Rear Panel Connections - Receiver
HDBaseT HDMI Extender 3.5 Rear Panel Connections - Receiver 1) RS232: Male DB-9 serial port connects an RS-232 device 2) Link: Connect a Cat 6 cable with 568B wiring. Green LED Link status indicator verifies a live connection 3) DC/5V: AC power adapter port. Red LED confirms power. See Section 3.7 for Extender connection instructions... -
Page 8: Ir Cable Installation
HDBaseT HDMI Extender 3.6 IR Cable Installation HDMI Extender transmits bi-directional IR control signals over a Cat 6 cable using HDBaseT technology. Control both the HDMI input source and output display with a paired handheld remote for either side. 1) Connect an IR Transmitter cable to the Transmitter TX port ... -
Page 9: Extender Connection Instructions
HDBaseT HDMI Extender 3.7 Extender Connection Instructions 1) Power off all the equipment before connecting any cables 2) Connect the HDMI cables to the Transmitter and Receiver boxes 3) Connect the Cat 6 cabling to the Transmitter and Receiver boxes 4) Connect the IR RX and TX cables (optional) 5) Connect the RS-232 cables (optional) 6) Power on all the equipment... -
Page 10: Troubleshooting Notes
HDBaseT HDMI Extender 3.8 Troubleshooting Notes Verify that the Extender and all connected equipment have power. The red power LED indicator should be lit on the Extender. Verify that all cables are connected to the correct input and output ports. ... -
Page 11: Technical Specifications
HDBaseT HDMI Extender 4. TECHNICAL SPECIFICATIONS Model 103078 Extender Connections - Transmitter/Receiver (each) HDMI Input/Output ..........1 x HDMI 19 pin female Ethernet (Local) ............. 1 x RJ45 8P/8C (568B) female HDBaseT (Link) ............. 1 x RJ45 8P/8C (568B) female IR RX &... -
Page 12: Warranty And Support
HDBaseT HDMI Extender 5. Warranty and Support 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com. 5.2 Warranty Information This product is backed by a limited one-year warranty.
