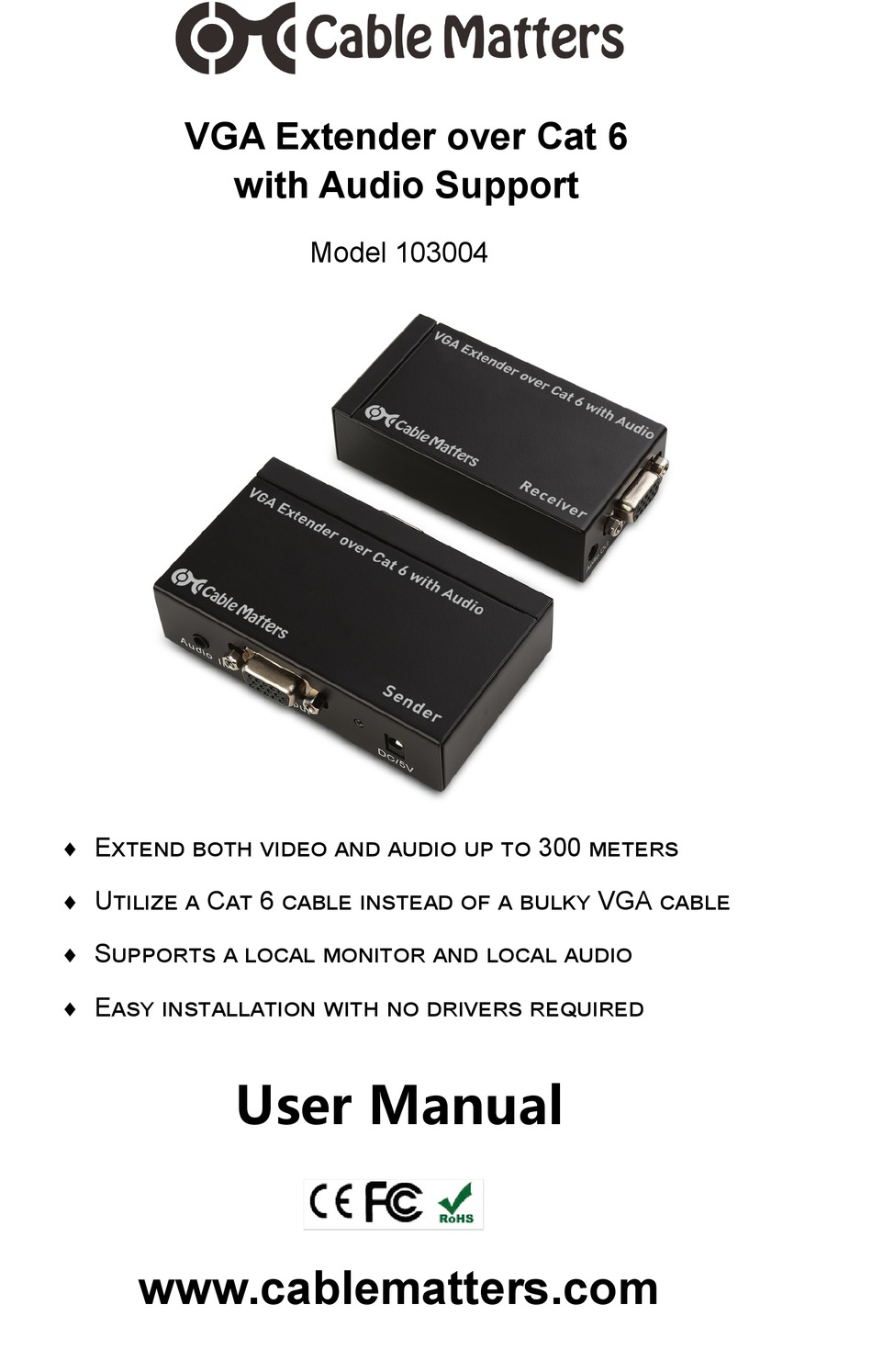

cable matters 103004 User Manual

Vga extender over cat 6 with audio support

Advertisement

Quick Links

VGA Extender over Cat 6
Extend both video and audio up to 300 meters
Utilize a Cat 6 cable instead of a bulky VGA cable
Supports a local monitor and local audio
Easy installation with no drivers required
www.cablematters.com
with Audio Support
Model 103004

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 103004 and is the answer not in the manual?

Questions and answers

Summary of Contents for cable matters 103004

  • Page 1: User Manual

    VGA Extender over Cat 6 with Audio Support Model 103004  Extend both video and audio up to 300 meters  Utilize a Cat 6 cable instead of a bulky VGA cable  Supports a local monitor and local audio ...
  • Page 2: Table Of Contents

    VGA Extender over Cat 6 with Audio Support Table of Contents 1. INTRODUCTION ..............1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW ............2 2.1 Package Contents 2.2 Product Description 2.3 Connection Diagram 2.3 Product Features ............3 3.
  • Page 3: Introduction

    Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cable Matters, or an endorsement of the product to which this manual applies by the third-party company in question. Regardless of any direct...
  • Page 4: Product Overview

    NOTE: VGA cables, audio cables, and Cat 6 cabling is sold separately. 2.2 Product Description The Cable Matters VGA Extender distributes a VGA signal up to 975 feet from a computer to a VGA display over a single Cat 6 cable. It connects one local and one remote display.
  • Page 5: Product Features

    VGA Extender over Cat 6 with Audio Support 2.3 Product Features Extend a VGA connection up to 975 feet from a computer source, to a  monitor or projector over a single Cat 6 UTP/STP cable Utilize existing Cat 6 premise wiring instead of running a long, bulky VGA ...
  • Page 6: Connection Instructions

    VGA Extender over Cat 6 with Audio Support 3. CONNECTION INSTRUCTIONS 3.1 Installation Checklist Please review these steps before installing the VGA Extender. Cat 5 or 5e cabling will reduce the maximum distance of the Extender.  Test the VGA, audio, and Cat 6 cabling (sold separately) before installing ...
  • Page 7: Connecting The Sender Unit

    VGA Extender over Cat 6 with Audio Support 3.2 Connecting the Sender Unit 1) Connect the power adapter to the Sender and an electrical outlet. Verify that the green power LED is lit. 2) Connect a VGA cable from the computer source to the VGA Input female port (not the VGA Local port) on the Sender.
  • Page 8: Connecting The Receiver Unit

    VGA Extender over Cat 6 with Audio Support 3.3 Connecting the Receiver Unit 1) Connect the power adapter to the Receiver and an electrical outlet. Verify that the green power LED is lit. 2) Connect a VGA cable from the remote display to the VGA Output female port on the Receiver.
  • Page 9: Video And Audio Settings

    VGA Extender over Cat 6 with Audio Support 3.5 Video and Audio Settings Video Settings Select a video resolution and refresh rate that is supported by the source  computer and output display. Select the VGA input on the remote output display. ...
  • Page 10: Troubleshooting Notes

    VGA Extender over Cat 6 with Audio Support 3.6 Troubleshooting Notes NOTE: Analog VGA does not support playback of copy protected video. Verify that both Extender units and the connected equipment have power.  The green power LED indicators should be lit on both Extender units. Verify that all cables are connected to the correct input and output ports.
  • Page 11: Technical Specifications

    VGA Extender over Cat 6 with Audio Support 4. TECHNICAL SPECIFICATIONS Model 103004 Extender Sender Connections Video / VGA 2 x HD15 VGA female (input and output) Stereo Audio 2 x 3.5mm stereo (input, local) Transmission / Cat 6 1 x RJ45 8P/8C Female...
  • Page 12: Warranty And Support

    VGA Extender over Cat 6 with Audio Support 5. Warranty and Support 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com.
