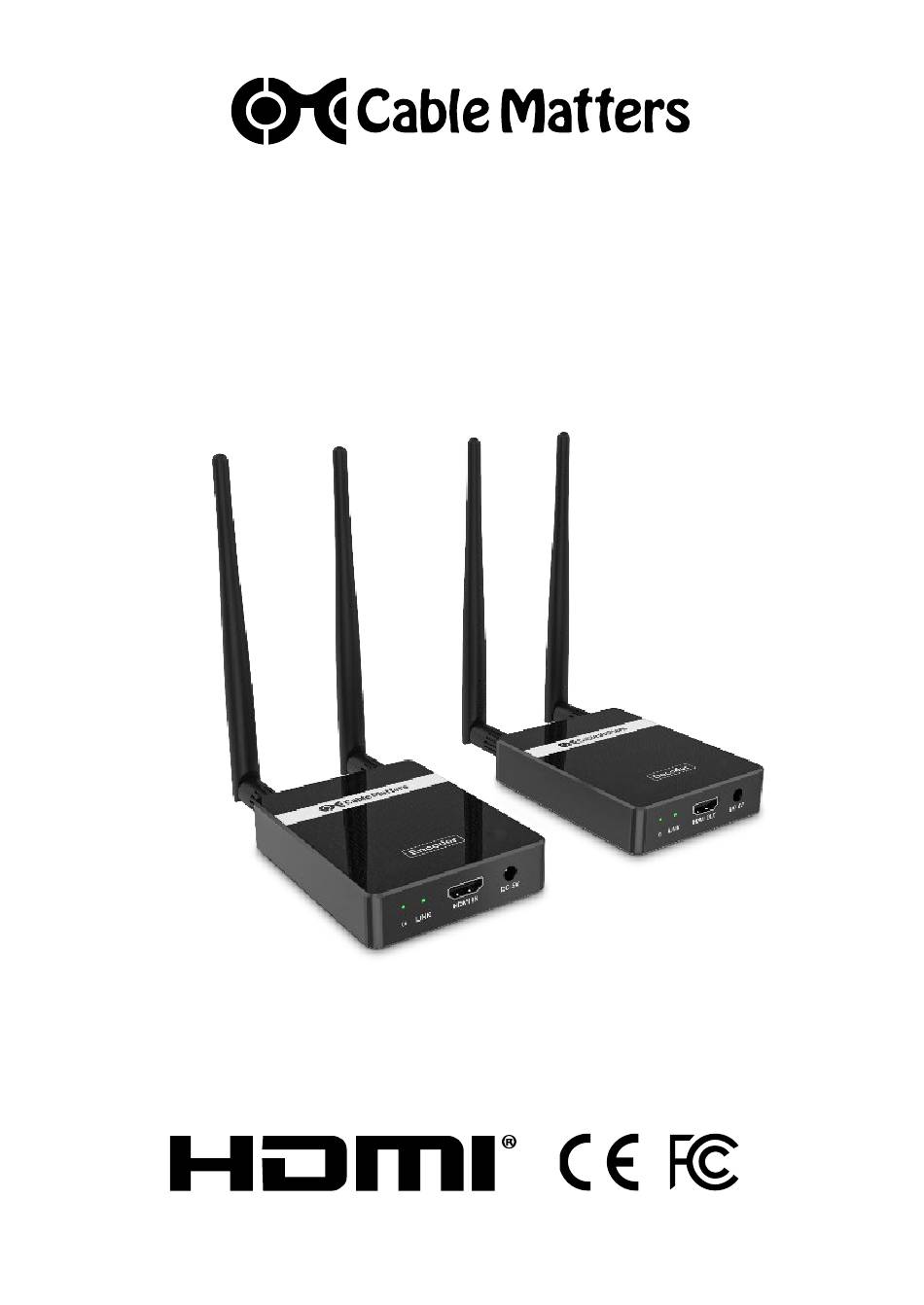

- Page 1 Wireless HDMI ® Extender with IR Support Model 103103 User Manual (Available in a PDF file) Email: support@cablematters.com...
-
Page 2: Table Of Contents
Wireless HDMI® Extender with IR Support Table of Contents ............. INTRODUCTION 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description 2.3 Product Features .............. 2 3. CONNECTION AND OPERATING INSTRUCTIONS..... 3 3.1 Installation Checklist 3.2 Encoder Panel Connections 3.3 Decoder Panel Connections .......... -
Page 3: Introduction
1.2 Copyright and Trademarks Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. 1.3 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. -
Page 4: Product Features
Wireless HDMI® Extender with IR Support 2.3 Product Features • Wirelessly transmit one HDMI HD source signal to one HDMI HD display with 1920×1080@60Hz resolution up to 330ft/100m. • Supports HDCP 1.4 pass-thru for seamless viewing of content-protected video. • Includes one-way IR control for convenient operation. •... -
Page 5: Connection And Operating Instructions
Wireless HDMI® Extender with IR Support 3. CONNECTION AND OPERATING INSTRUCTIONS 3.1 Installation Checklist Power off all equipment before connecting the cables • Test placement of Encoder and Decoder before installing permanently • Use high quality HDMI cables in the shortest length needed (2 are included) •... -
Page 6: Decoder Panel Connections
Wireless HDMI® Extender with IR Support 3.3 Decoder Panel Connections 1) Power LED: The LED will illuminate when the decoder is powered on. 2) LINK LED: The LINK LED flashing means that the encoder and decoder are transmitting video signals 3) HDMI OUT: HDMI output port for connecting the HDMI display device 4) Power: Connect the DC 5V/2A power adapter 5) PAIR: Press and hold the PAIR button, then power on the Decoder, and the Decoder... -
Page 7: Troubleshooting Tips
Wireless HDMI® Extender with IR Support 3.5 Troubleshooting Tips Cabling • Check that all cable connections are secure • Test HDMI cables with different equipment • An HDMI splitter or switch may be incompatible or cause latency Video/Audio Source • Try different video resolution settings supported by the display •... -
Page 8: Technical Specifications
5.2 Warranty Information This product is backed by a limited one-year warranty. The warranty covers parts and labor costs only. Cable Matters does not warrant its products from defects or damages arising from misuse, abuse, or normal wear. 5.3 Limitation of Liability In no event shall Cable Matters Inc.
