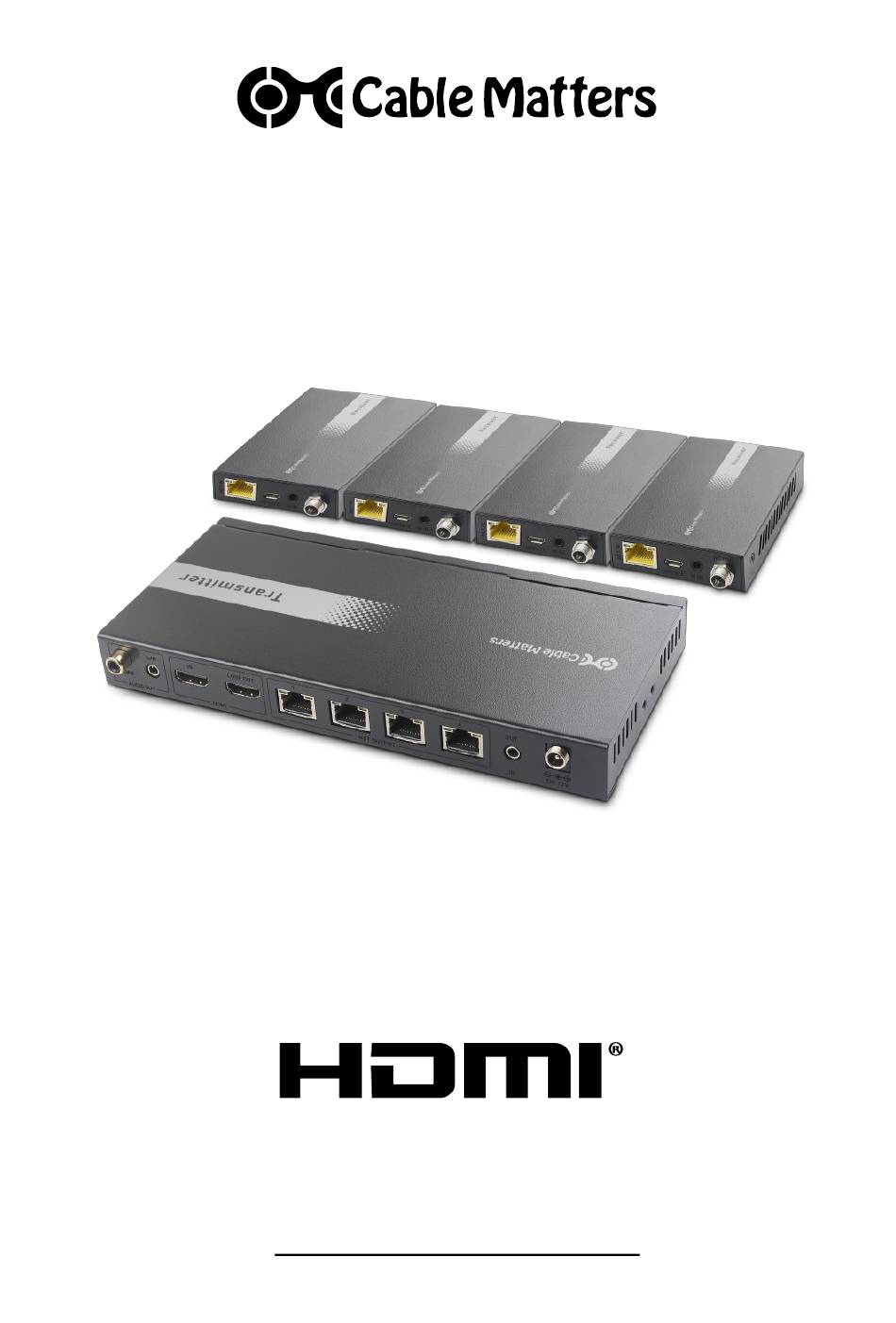

- Page 1 1x4 18Gbps 4K Audio/Video Extender and Splitter Model 103095 Extend a signal from an HDMI source to 4 remote displays simultaneously User Manual Download the user manual at: • www.cablematters.com/dl/103095 support@cablematters.com...
-
Page 2: Table Of Contents
1x4 18Gbps 4K Audio/Video Extender and Splitter Table of Contents 1. INTRODUCTION ..................1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description ................2 2.3 Product Features 3. CONNECTION AND OPERATION .............. 3 3.1 Installation Checklist 3.2 Transmitter Panel Connections 3.3 Receiver Panel Connections .............. -
Page 3: Introduction
Contact support@cablematters.com for questions or product support. 1.2 Copyright and Trademarks Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. -
Page 4: Product Description
1x4 18Gbps 4K Audio/Video Extender and Splitter 2.2 Product Description The Cable Matters 1x4 18Gbps 4K Audio/Video Extender and Splitter provides the ideal solution for connecting 4 remote displays with 4K 60Hz HDMI video and audio up to 164 feet simultaneously (up to 196 feet at 4K 30Hz or 229 feet at 1080p 60Hz). -
Page 5: Connection And Operation
1x4 18Gbps 4K Audio/Video Extender and Splitter 3. CONNECTION AND OPERATION 3.1 Installation Checklist Please review this information before installing the 1x4 18Gbps 4K A/V Extender and Splitter Installation with a surge protector is recommended to protect the equipment • Power-off the source and display equipment before connecting •... -
Page 6: Receiver Panel Connections
1x4 18Gbps 4K Audio/Video Extender and Splitter 3.3 Receiver Panel Connections DC 12V HDMI OUT UPDATE IR IN 1. HDMI OUT: Connect to the remote extended display with HDMI 2. NET IN: RJ45 port for Cat 6 cable 3. UPDATE: Used for firmware updates 4. -
Page 7: Edid Management
1x4 18Gbps 4K Audio/Video Extender and Splitter 3.5 EDID Management This 1x4 18Gbps 4K Audio/Video Extender and Splitter can connect HDMI source equipment and output displays with different video resolutions and audio output settings. These settings can be individually programmed using the EDID management function on the transmitter and receivers. For Dolby Vision support, set the EDID to copy the EDID from the OUTPUT the Dolby Vision-compatible television or monitor is connected to (values 22-26 on this chart). - Page 8 1x4 18Gbps 4K Audio/Video Extender and Splitter Number EDID Position EDID Description 01111 4K 60Hz 4:4:4 Dolby DTS 5.1 01110 4K 60Hz 4:4:4 HD Audio 7.1 01101 4K 60Hz 4:4:4 Stereo Audio 2.0 HDR 01100 4K 60Hz 4:4:4 Dolby DTS 5.1 HDR 01011 4K 60Hz 4:4:4 HD Audio 7.1 HDR 01010...
-
Page 9: Ir Remote Control
1x4 18Gbps 4K Audio/Video Extender and Splitter 3.6 IR Remote Control IR Transmitter (Blaster) Cable IR Receiver Cable IR Transmitter Cable: Connect to the IR-T port on the Transmitter box. Requires line-of-sight with the HDMI source equipment IR window. Tip: Shine a light on the source box to reveal the IR window, if it is not labeled. - Page 10 1x4 18Gbps 4K Audio/Video Extender and Splitter Test each HDMI cable by connecting it with other equipment. • Recommended maximum total HDMI cable distance In/Out is 25/25ft. • Connecting an HDMI cable with a coupler or wall plate may degrade the signal transmission. •...
-
Page 11: Technical Specifications
1x4 18Gbps 4K Audio/Video Extender and Splitter 4. TECHNICAL SPECIFICATIONS Model 103095 Extender and Splitter Ports (Transmitter and Receiver) HDMI Input 1x HDMI Female HDMI Output 5x HDMI Female Audio Output 1x Coaxial Audio Out, 1x 3.5mm Stereo Audio Out... -
Page 12: Warranty And Support
1x4 18Gbps 4K Audio/Video Extender and Splitter 5. WARRANTY AND SUPPORT 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com. - Page 13 1x4 18Gbps 4K Audio/Video Extender and Splitter View related products at www.cablematters.com 3-Pack Certified Ultra High Speed HDMI Cables Model 300029 150’ Snagless Cat 6 Patch Cable Model 160001 150’ Shielded Cat 6 Patch Cable Model 160012 www.cablematters.com...
