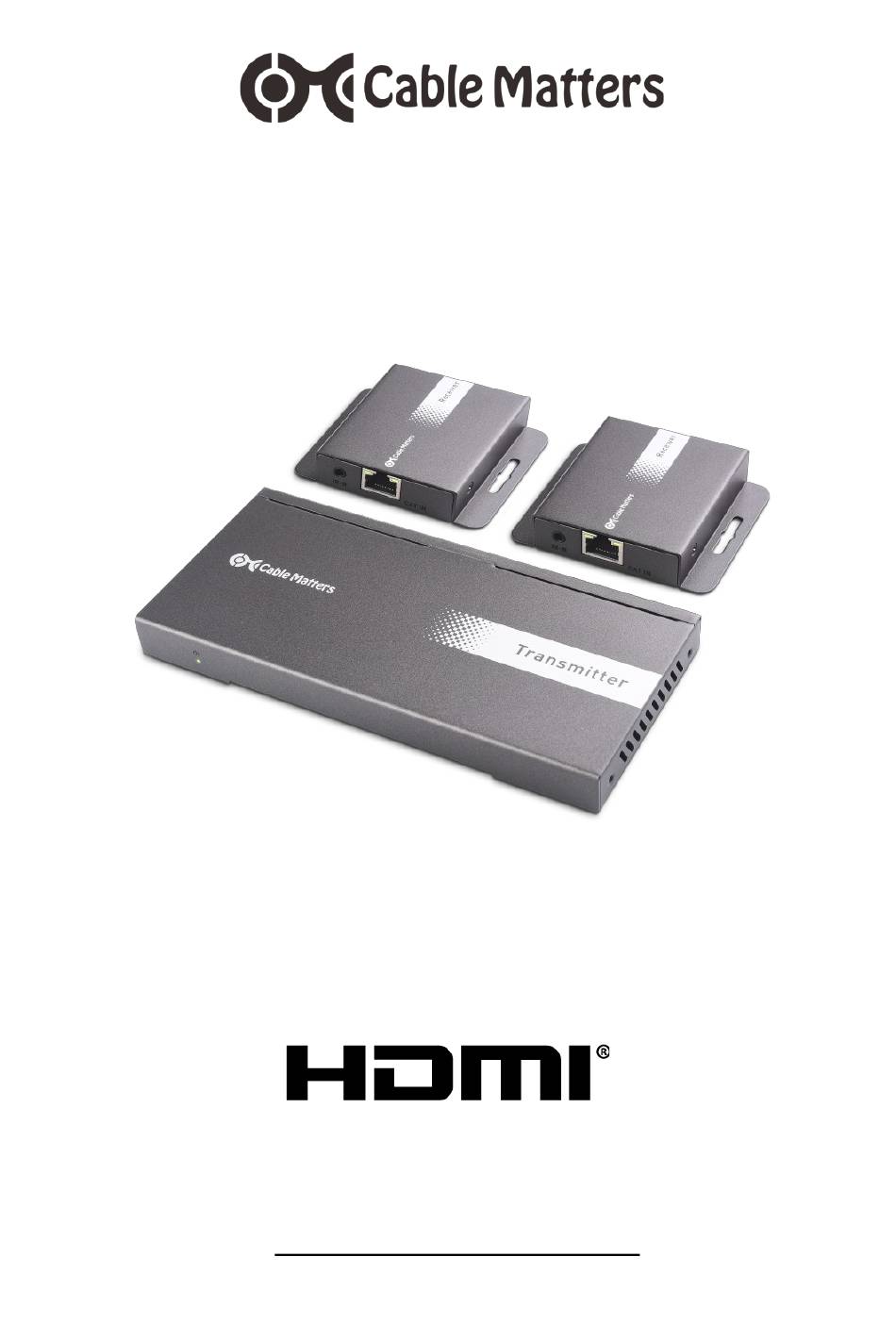

- Page 1 1x2 HD Audio/Video Extender and Splitter Model 103093 Extend signal from an HDMI source to 2 remote displays simultaneously User Manual Download the user manual at: • www.cablematters.com/dl/103093 support@cablematters.com...
-
Page 2: Table Of Contents
1x2 HD Audio/Video Extender and Splitter Table of Contents 1. INTRODUCTION ..................1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description ................2 2.3 Product Features 3. CONNECTION AND OPERATION .............. 3 3.1 Installation Checklist 3.2 Transmitter Panel Connections 3.3 Receiver Panel Connections .............. -
Page 3: Introduction
Contact support@cablematters.com for questions or product support. 1.2 Copyright and Trademarks Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. -
Page 4: Product Description
1x2 HD Audio/Video Extender and Splitter 2.2 Product Description The Cable Matters 1x2 HD Audio/Video Extender and Splitter provides the ideal solution for connecting 2 remote displays with 4K HDMI video and audio up to 131 feet simultaneously (up to 230 feet at 1080p 60Hz). -
Page 5: Connection And Operation
1x2 HD Audio/Video Extender and Splitter 3. CONNECTION AND OPERATION 3.1 Installation Checklist Please review this information before installing the 1x2 HD A/V Extender and Splitter Installation with a surge protector is recommended to protect the equipment • Power-off the source and display equipment before connecting •... -
Page 6: Receiver Panel Connections
1x2 HD Audio/Video Extender and Splitter 3.3 Receiver Panel Connections 1. Video OUT: Connect to the remote extended display with HDMI 2. IR-R: 3.5mm port for IR Receiver cord 3. CAT IN: RJ45 port for Cat 6 cable 3.4 Connection Instructions 1. -
Page 7: Edid Management
1x2 HD Audio/Video Extender and Splitter 3.5 EDID Management This 1x2 HD Audio/Video Extender and Splitter can connect HDMI source equipment and output displays with different video resolutions and audio output settings. These settings can be individually programmed using the EDID management function. Number EDID Position EDID Description... -
Page 8: Ir Remote Control
1x2 HD Audio/Video Extender and Splitter 3.6 IR Remote Control IR Transmitter (Blaster) Cable IR Receiver Cable IR Transmitter Cable: Connect to the IR-T port on the Transmitter box. Requires line-of-sight with the HDMI source equipment IR window. Tip: Shine a light on the source box to reveal the IR window, if it is not labeled. - Page 9 1x2 HD Audio/Video Extender and Splitter Test each HDMI cable by connecting it with other equipment. • Recommended maximum total HDMI cable distance In/Out is 25/25ft. • Connecting an HDMI cable with a coupler or wall plate may degrade the signal •...
-
Page 10: Technical Specifications
1x2 HD Audio/Video Extender and Splitter 4. TECHNICAL SPECIFICATIONS Model 103093 Extender and Splitter Ports (Transmitter and Receiver) HDMI Input 1x HDMI Female HDMI Output 3x HDMI Female CAT Ports RJ45 port for Cat 6 cable IR Ports 1x IR out (Transmitter), 2x IR in (Receiver) -
Page 11: Warranty And Support
1x2 HD Audio/Video Extender and Splitter 5. WARRANTY AND SUPPORT 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com. - Page 12 1x2 HD Audio/Video Extender and Splitter View related products at www.cablematters.com Certified Premium HDMI Cable ® Model 300016 150’ Snagless Cat 6 Patch Cable Model 160001 150’ Shielded Cat 6 Patch Cable Model 160012 www.cablematters.com...
