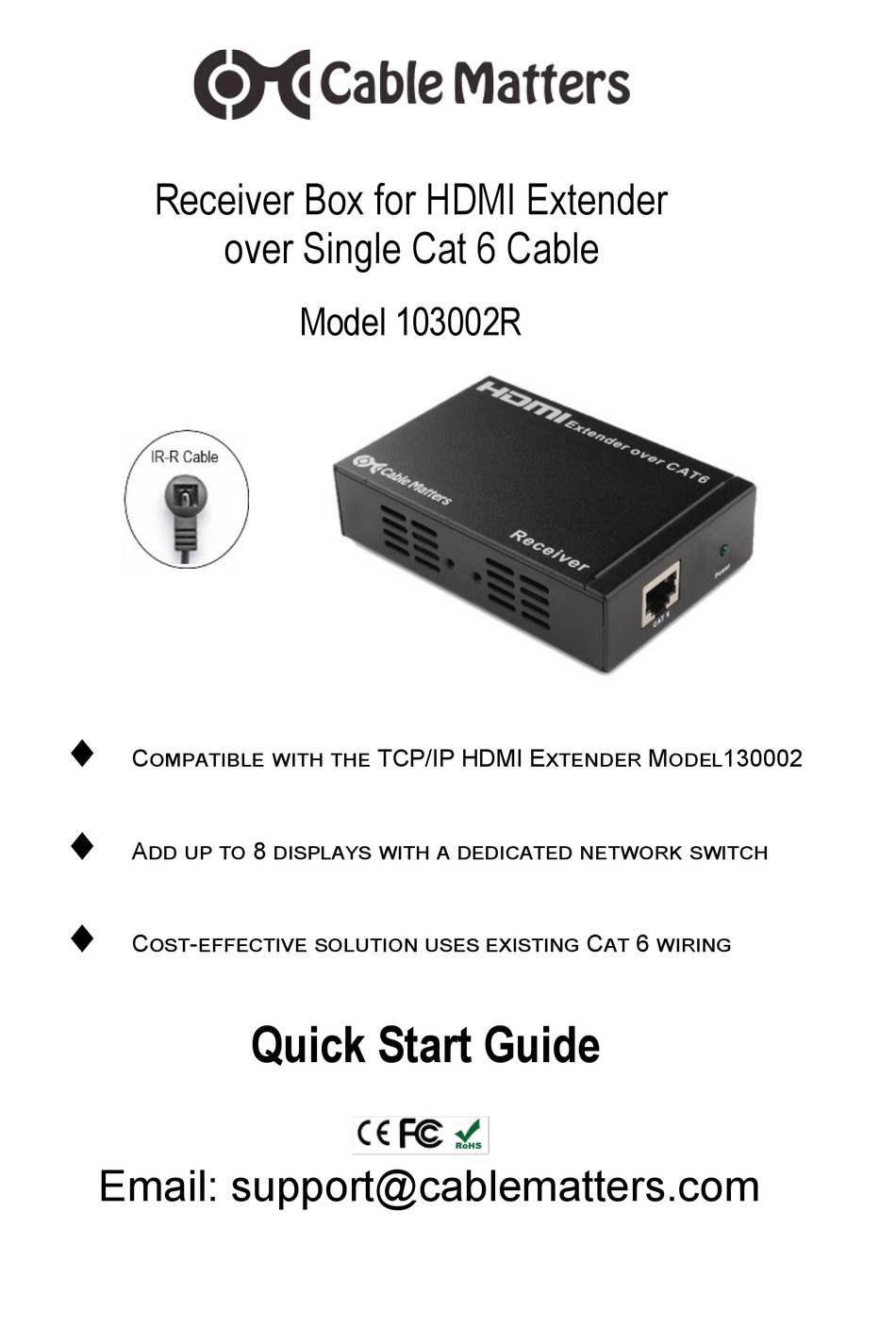

Page 1: Quick Start Guide
Receiver Box for HDMI Extender over Single Cat 6 Cable Model 103002R Compatible with the TCP/IP HDMI Extender Model130002 Add up to 8 displays with a dedicated network switch Cost-effective solution uses existing Cat 6 wiring Quick Start Guide... -
Page 2: Package Contents
Quick Start Guide for the installation of the Receiver Box for HDMI Extender over Single CAT6 Cable This Receiver box is designed to operate with the Cable Matters HDMI Extender over Single CAT 6 Cable with IR Control (Model 103002). - Page 3 QUICK START GUIDE - MODEL 103002R The Cable Matters® Receiver Box for HDMI Extender over Single CAT 6 Cable operates with the Cable Matters HDMI Extender Transmitter (Model 103002). Connect up to 8 HD video displays with HDMI in remote locations up to 300 feet apart.
-
Page 4: Installation Instructions
QUICK START GUIDE - MODEL 103002R Installation Instructions Power off the connected source and destina- tion equipment before connecting any equip- ment or cabling. Test the Receiver with the Transmitter box before installing permanently. Locate the Receiver within 5 feet of an electri- ... -
Page 5: Receiver Connections
QUICK START GUIDE - MODEL 103002R Receiver Connections Connect the power adapter to the Receiver and to an electrical outlet. Check that the green LED is lit. Connect an HDMI cable from the ‘HDMI OUT’ female port on the Receiver box to the HDMI destination display female port. -
Page 6: Troubleshooting Tips
QUICK START GUIDE - MODEL 103002R Troubleshooting Tips Check that both Extenders and the connected equipment have power. The green LED should be lit. Check that the correct video input is selected on the display. Check the video resolution settings of the video source and output displays to verify that they are compatible. - Page 7 QUICK START GUIDE - MODEL 103002R Technical Specifications: Model 103002-R Extender Connections (Receiver) Audio Video HDMI 19 pin female Transmission RJ45 female IR Control 3.5mm female Power 5V DC power input Protocol Support I/O Audio/Video Signals HDMI 1.3b, DVI 1.1, DDC...
-
Page 8: Warranty Information
During this period, the products may be returned for repair, or replaced with equivalent products at our discretion. The warranty covers parts and labor costs only. Cable Matters does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
