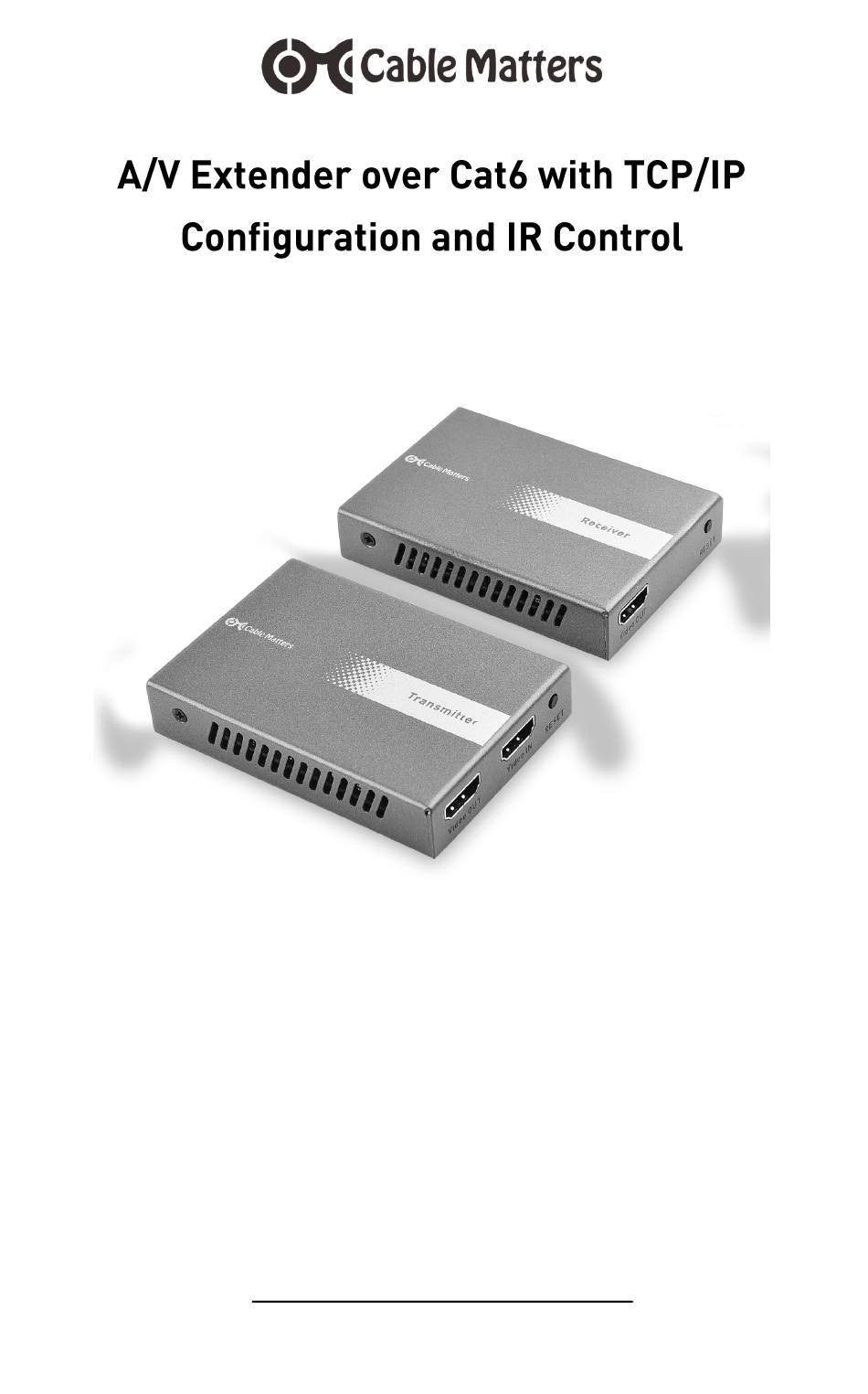

- Page 1 Model 103091 Extend HDMI audio and video connections up to 100M/328FT Utilize existing Cat 6 wiring for an easy installation Add up to 8 receivers with a dedicated unmanaged network switch User Manual Download the user manual at: •...
-
Page 2: Table Of Contents
Table of Contents 1. INTRODUCTION……………………………………...1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents…………………………………………...1 2.2 Product Description………………………………………… 2 2.3 Product Features 3. CONNECTION INSTRUCTIONS 3.1 Installation Checklist……………………………………..….3 3.2 Transmitter Panel Connections…………………………….4 3.3 Receiver Panel Connections 3.4 Connection Instructions……………………………………..5 3.5 Connecting Additional Receivers 3.6 Troubleshooting Notes……………………………...……….7... -
Page 3: Introduction
Contact support@cablematters.com for questions or product support. 1.2 Copyright and Trademarks Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. -
Page 4: Product Description
A/V Extender over Cat6 with TCP/IP Configuration and IR Control 2.2 Product Description The Cable Matters® A/V Extender over Cat6 with TCP/IP Configuration and IR Control is the ideal solution for connecting HD display equipment in remote locations up 328 feet apart. -
Page 5: Connection Instructions
A/V Extender over Cat6 with TCP/IP Configuration and IR Control 3. CONNECTION INSTRUCTIONS 3.1 Installation Checklist Please review the installation checklist before installing the A/V Extender over Cat6. Test an active configuration with the included HDMI cables before installing permanently. Sections 3.2 and 3.3 provide a description of the external connections to the A/V Extender Transmitter and Receivers. -
Page 6: Transmitter Panel Connections
A/V Extender over Cat6 with TCP/IP Configuration and IR Control 3.2 Transmitter Panel Connections 1. Video OUT : Connect HDMI display mirror the output of the remote displays 2. Video IN: Connect to HDMI video source 3. Reset: Restart the Transmitter with default settings 4. -
Page 7: Connection Instructions
A/V Extender over Cat6 with TCP/IP Configuration and IR Control 3.4 Connection Instructions 1. Power off the source equipment and destination displays before connecting any cabling. 2. Connect the power adapter to the Transmitter and Receiver. 3. Connect an HDMI cable from the ‘Video IN’ female port on the Transmitter to the video source female port . - Page 8 A/V Extender over Cat6 with TCP/IP Configuration and IR Control 8. Plug the power adapters of the Transmitter and Receiver into an AC outlet (look for a blue LED) 9. Turn on the power to the source equipment and connected display and wait a few seconds for the signal to synchronize.
-
Page 9: Troubleshooting Notes
A/V Extender over Cat6 with TCP/IP Configuration and IR Control 3.6 Troubleshooting Notes Please review the following notes if you have any problems connecting the Transmitter and Receivers of the A/V Extender, HDMI equipment, or cabling. Check that the Transmitter and Receivers of the A/V Extender, and the connected •... -
Page 10: Technical Specifications
A/V Extender over Cat6 with TCP/IP Configuration and IR Control 4. TECHNICAL SPECIFICATIONS Model 103091 Extender Connections (Transmitter and Receiver) HDMI Input 1x HDMI Female HDMI Output 2x HDMI Female IR Ports 2x 3.5mm Female Transmission 2x RJ45 female Power... -
Page 11: Warranty And Support
A/V Extender over Cat6 with TCP/IP Configuration and IR Control 5. WARRANTY AND SUPPORT 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com. - Page 12 A/V Extender over Cat6 with TCP/IP Configuration and IR Control View related products at www.cablematters.com Certified Premium HDMI® Cable Model 300016 150’ Snagless Cat 6 Patch Cable Model 160001 150’ Shielded Cat 6 Patch Cable Model 160012 www.cablematters.com...
