37˚ FLARE TOOL W80671
This tool is designed to flare thin wall steel tubing, aluminum and .040 wall soft copper
1) End of tubing must be cut square. (Use Performance Tool part number W700C or W702C.)
2) Deburr inside of tubing, and chamfer outside.
3) Place tubing in correct hole with proper length exposed on beveled side of flaring bar
as shown in Figure 1.
4) Tighten flaring bar firmly starting with nut closest to tubing. Make certain tubing will not slip.
5) Place anvil over bar and turn anvil down until end of tubing flares to a bell shape (Fig. 2).
6) Remove tool and tubing should look like Figure 3.

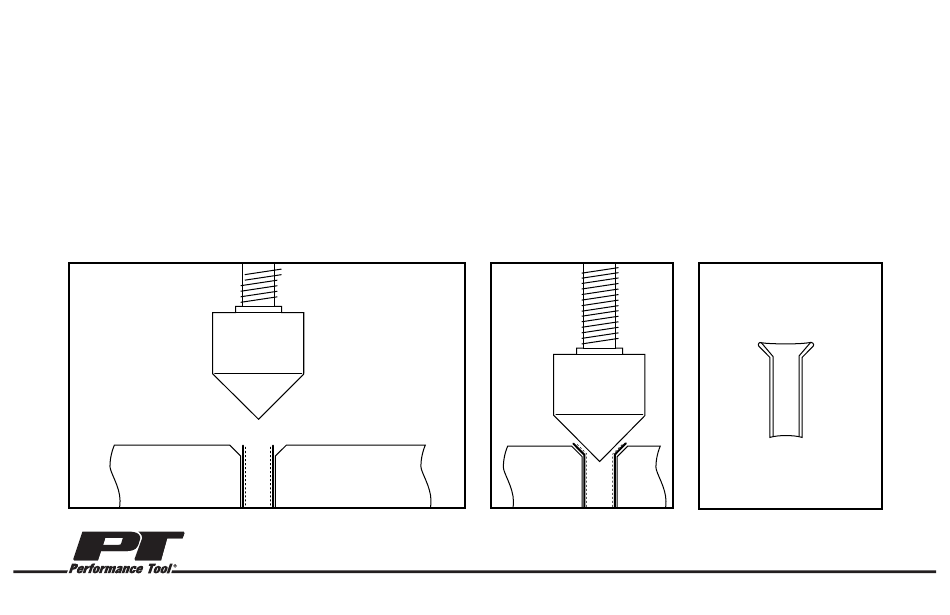

Figure 1 Figure 2 Figure 3
Correct
37° Flare
