Wali SLK201 Installation Manual

MIN 180MM (7")
MAX 290MM(11½" ）
Assembly and Installation Instructions
Important:
Please inspect the intended installation location to ensure it can
support the total weight of the speaker and mount. Some walls
are not suitable for installation of this mount.
Installation:
It is highly recommended that the mount be attached to
a solid surface that can support up to 3 times the total
weight of the speaker and mount.The best option is to
attach this mount to a wood stud behind the drywall for maximum
support. These instructions show installation on wood, drywall,
block and brick. Additional hardware may be needed that is not
included but can be found at your local hardware store. See the

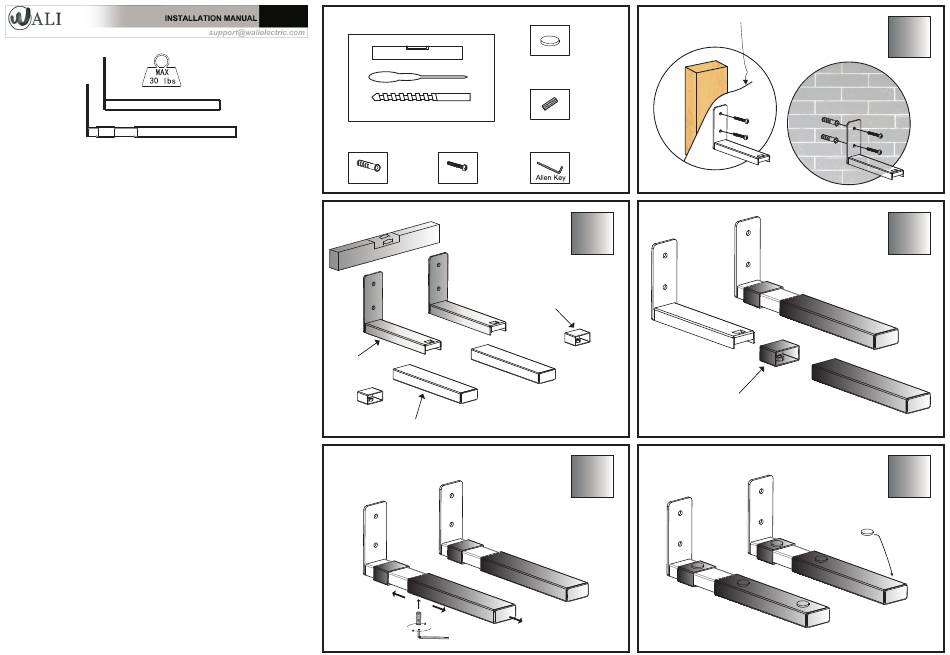

diagram at right for installation steps.
WALI, it's Distributors and Dealers, are not responsible for damage
or injury caused by improper installation. If you are not sure of
any of these instructions or have questions on this product,
please contact us or have a professional install this mount.
MISSING/ DAMAGED PARTS:
If you find damaged or missing parts, do not install this product
and DO NOT return to the place of purchase.
via Email: support@walielectric.com and we will replace any missing
or damaged parts.
SLK201
Parts List
8X40
Concrete
Anchor
Support Arm x2
W arn in g ! Do not extend arms past 11.35''.
Please contact us
Washer
n o t s u p p l i e d
Set Screw
5X50 S3
X4 X4
Self-tapping
Screw
When leveling, place level
on the support arms as
you would the speaker.
This insures both arms will be level.
Small Arm Sleeve x2
Large Arm Sleeve x2
MIN 180MM (7")
MAX 290MM(11½"
PRE DRILL(1/8"Bit）
X6
X4
X1
2
To configure this mount for the shortest length,
do not use the small arm sleeve.
4
）
1
3
5
