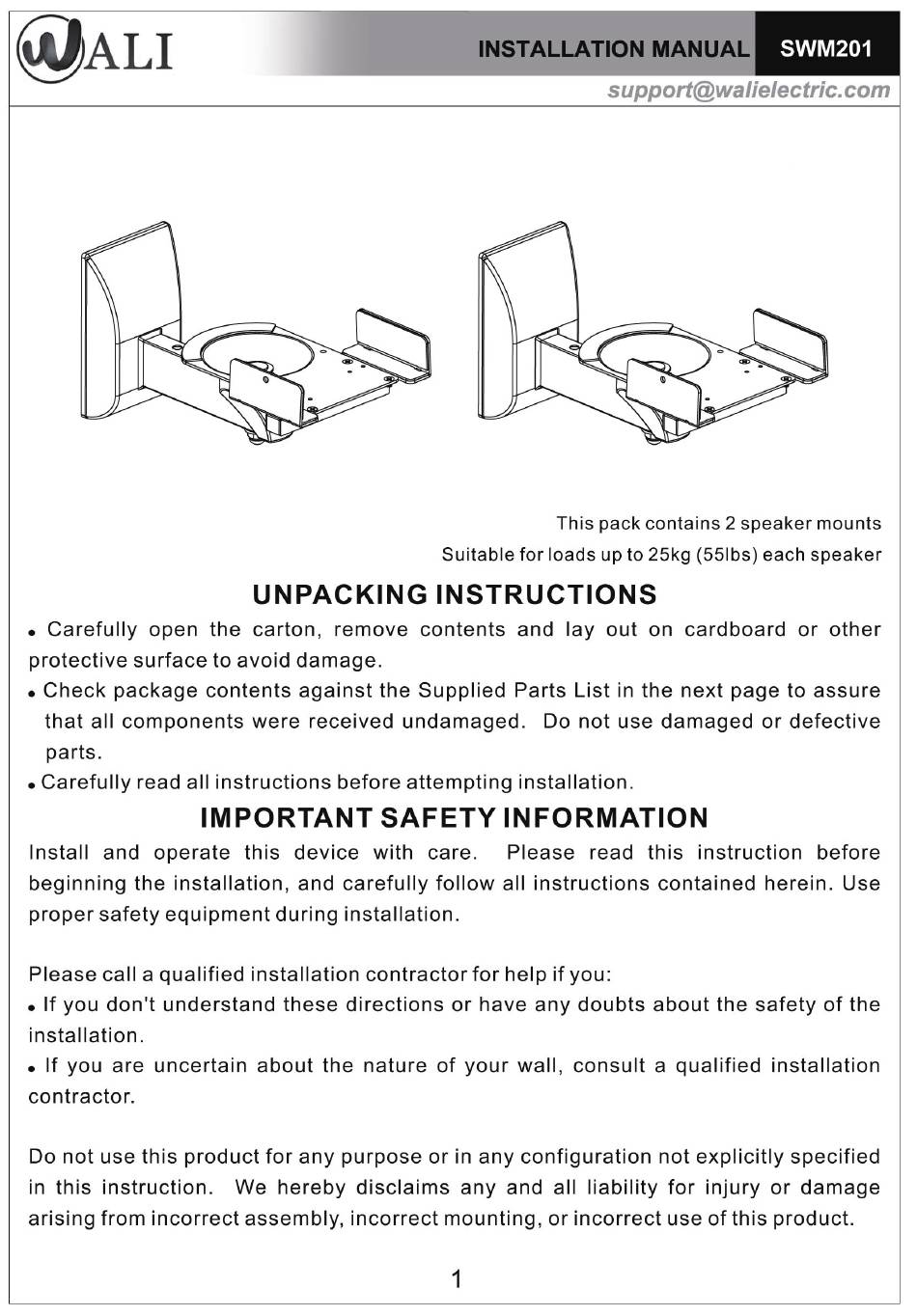

- Page 2 S u p p l i e d P a r t s L i s t (2)Wall Bracket-a (2)Wall Bracket Cover-b (2)Tilting End Cap-c (2)Speaker Platform-d (2)M8x60mm Bolt-e (2)Plastic Washer-f (2)M8 Washer-g (2)M8 Nut-h (10)M4x12mm (8)M8x40mm (8)M6x50mm Lag Bolt-j (8)Lag Bolt Washer-k Wood Screw-i Concrete Anchor-l...
- Page 3 Optional Speaker Wire Management B e f o r e Y o u S t a r t Op t i o n A : W i r es w er e c o n c eal ed i n s i d e t h e w al l Op t i o n B : W i r es w er e ex p o s ed o u t s i d e t h e w al l...
- Page 4 Mounting the Wall Bracket to the Wall S t e p 1 B r i c k M o u n t 50m m 40m m 8m m Wo o d M o u n t 50m m 3.8m m...
- Page 5 Attaching the Wall Bracket Cover and the Speaker Platform S t e p 2 to Wall Bracket Placing Speaker on the Platform, Adjust Clamps to Hold S t e p 3 Speaker in Place Sp eak er 5.5”-11”...
